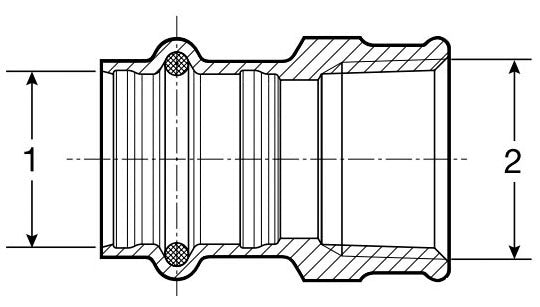

Viega 79360 1-1/2 x 1-1/4 Adapter PxFNPT ZERO LEAD

Product Description

The Viega 79360 is a reducing adapter fitting designed for various plumbing applications. It connects a one and a half inch pipe to a one and a quarter inch pipe. This fitting uses a ProPress connection specifically designed for quick and easy installations.

• Adapter fitting for size reduction
• Made from lead-free bronze
• Compatible with chilled water, compressed air, and potable water systems

Product Highlights

The Viega 79360 is suitable for a range of applications, including hydronic heating and fire sprinkler systems. It promotes efficient installation through lead-free materials and ProPress technology, ensuring secure connections without the need for flame or flux.

Product Information

Standard Information

• Brand Name: Viega
• UPC: 69151479360

Technical Specifications

• Size A: 1-1/2 inch
• Size B: 1-1/4 inch
• Material: Bronze
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Deg F
• End Connection: ProPress x Female Threaded
• Application: Chilled water, compressed air, potable water, hydronic heating, non-medical gas, fire sprinkler, low-pressure steam, vacuum
• Applicable Standard: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372
