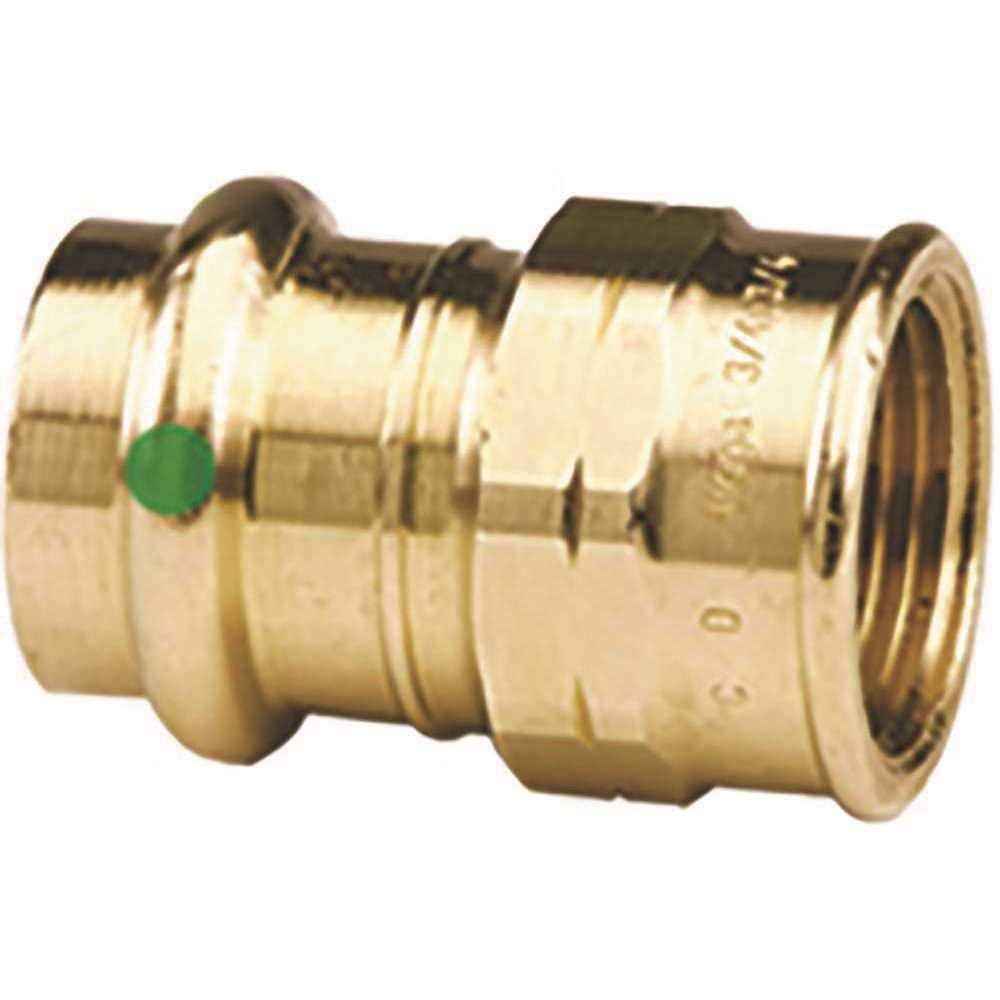

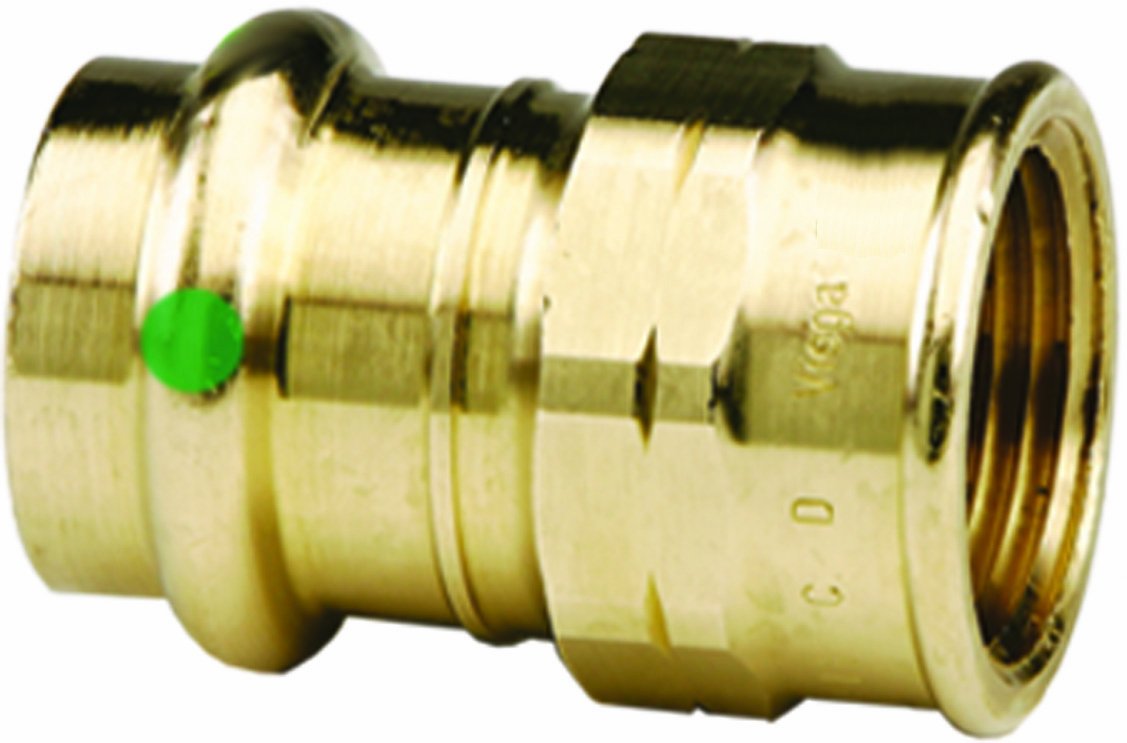

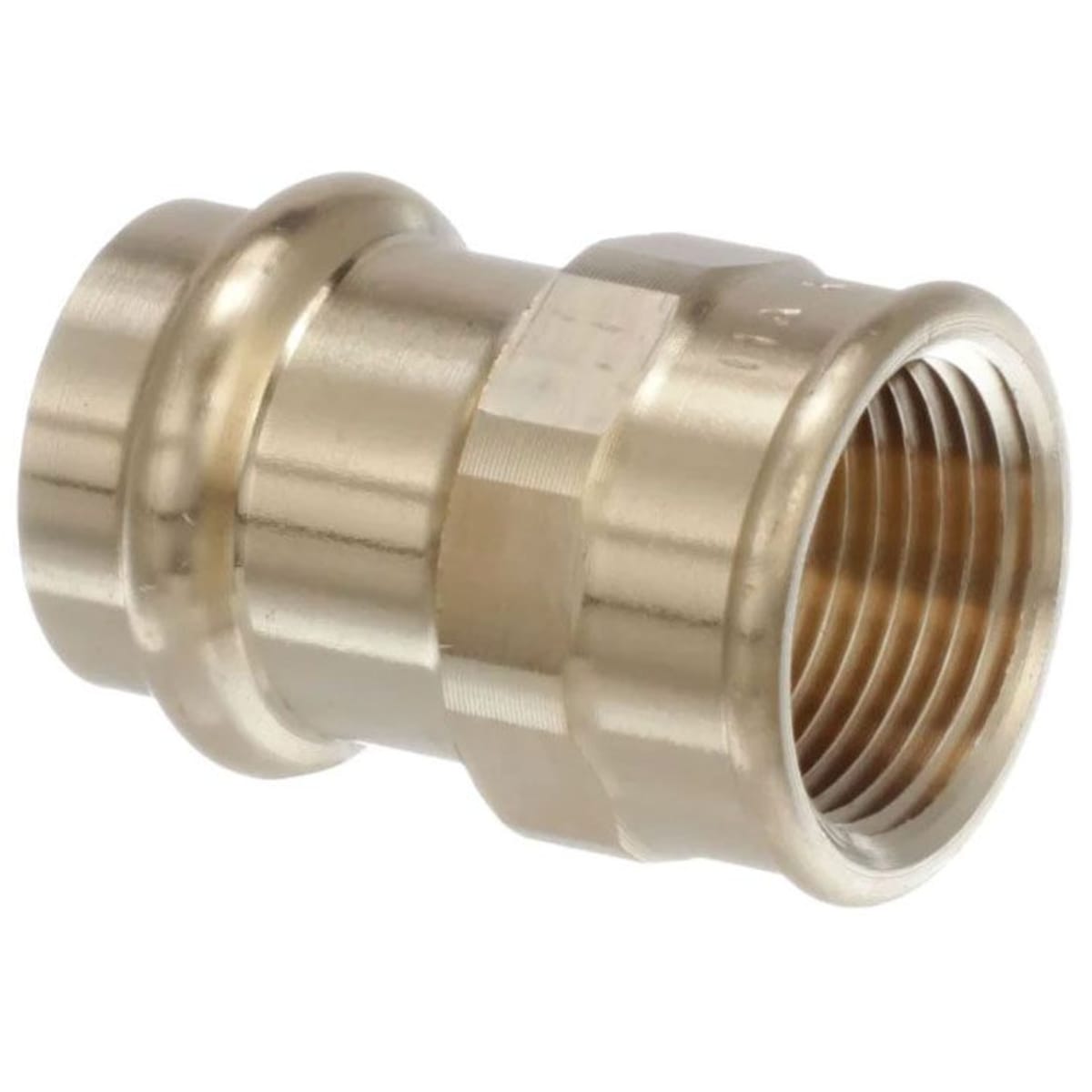

Viega 79315 Propress adapter 3/4 inches x 3/4 inches

Product Description

The Viega 79315 ProPress adapter features 3/4" x 3/4" connections. This bronze adapter is designed for potable water, hydronic heating, chilled water, compressed air, and other applications. It is suitable for use with ASTM B88 and B75 tubing. The adapter facilitates secure connections in less than 7 seconds.

• Features press-fit and FNPT connection types
• Constructed from bronze with EPDM sealing element
• Compliant with ASTM B75 and ASTM B88 standards

Product Highlights

The Viega ProPress adapter provides a fast, easy-to-use, and lead-free solution for connecting pipes without flame, solder, or flux.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79315
• Country of Origin: DE

Technical Specifications

• Item Model Number: 79315
• Brand: Viega
• Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FNPT
• Fitting Side A Copper Tube Size: 3/4 in
• Fitting Material: Bronze
• Fitting Side B Pipe Size: 3/4 in
• O-Ring Material: EPDM
• Specific Fitting Shape: Straight Adapter
• Overall Length: 1 13/16 in
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Standards: ASTM B75, ASTM B88
• End Style: Press x FNPT
• Nominal Size: 3/4 in
• Material: Bronze
• Connection Type: Press|FPT
• Tube Size: 3/4 in x 3/4 in
• Fitting Shape: Adapter
• Connection Type 1: Press
• Connection Type 2: FPT
• Domestic/Import: Import
• Temperature Rating: 0 to 250 deg F
• End Connection: ProPress x Female Threaded
• Size: 3/4"
• Lead Free: Yes
• Thread Type: Female
• Fitting/Connector Type: Adapter
• Seal Material: EPDM
• Applicable Standard: ABS, NSF/ANSI 61/372, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Type: Female
• Series: 2912ZL Series
• Minimum Operating Temperature: 0 Degrees F
• Pipe Size: 3/4 in
• Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
• Temp. Range: 0 Degrees to 250 Degrees F
• Max. Pressure: 200 psi
• Stop and Shape: Straight Adapter
• Fitting Connection Type: Press x Female Pipe Thread
• Basic Pipe Fitting Shape: Adapter
• Fitting Copper Tube Size: 3/4 in
• Fitting Pipe Size: 3/4 in
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: Adapter
• Pipe Fitting Connection Type: Press x Female Pipe Thread
• Pipe Size (Fittings): 3/4" x 3/4"
• Pipe Size - Pipe Fitting: 3/4 in x 3/4 in
• Country of Origin (subject to change): Germany
• Pressure Rating: 200 PSI
• Number of Items: 10.0
• Product Type: HOSE_PIPE_FITTING
• Product Group: Home Improvement
• Nominal Size A: 3/4 inch x 3/4 inch
• Connection: Press x FNPT
• Item: Adapter
• Length: 1-13/16 in
• Includes: EPDM Sealing Element (Green Dot)
• Standards and Approvals: ABS Listed | ASTM B88 | CSA MSE-13 | FM 1920 | IAPMO PS117 | ICC LC 1002 | NSF 61-G | UL 213
• Connection Size 2: 3/4 in
• Connection Size: 3/4 in
• For Use With: Viega ProPress® ASTM B88 and B75 Tubing
• Material Construction: Bronze
