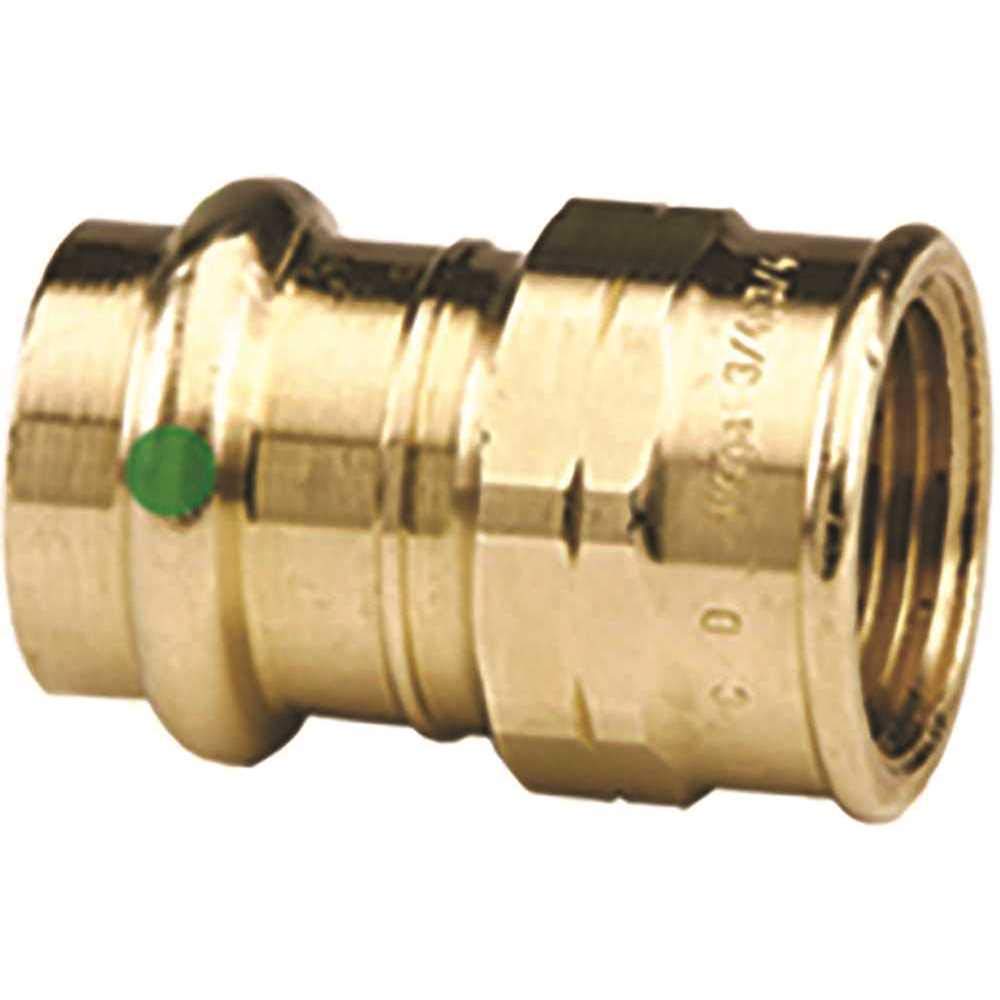

Viega 79315 ProPress Adapter Bronze 3/4 x 3/4

Product Description

The Viega ProPress 79315 Adapter is a versatile fitting designed for various plumbing applications. It features a 3/4 inch ProPress connection and a 3/4 inch Female NPT connection, making it suitable for many systems.

• Made from durable bronze
• Lead-free for potable water systems
• Compatible with ASTM B88 tubing

Product Highlights

This adapter is designed for easy and quick installation without needing flame, solder, or heavy equipment. The Smart Connect feature ensures a secure fit, and it allows installers to identify unpressed connections during testing.

Product Information

Standard Information

• Brand: Viega
• MPN: 79315
• Type: ProPress Adapter
• Material: Bronze
• Connection: ProPress x FNPT

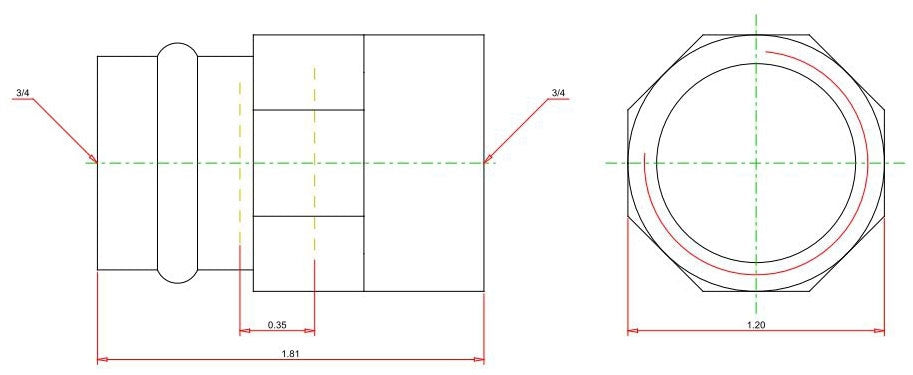

Technical Specifications

• Size A: 3/4 inch
• Size B: 3/4 inch
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 degrees Fahrenheit
• Application: Potable water, hydronic heating (with glycol), chilled water, compressed air, non-medical gas, fire sprinkler, low pressure steam, vacuum
• Standards: ABS, NSF/ANSI 61/372, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
• O-Ring Material: EPDM
• Includes: EPDM sealing element
• Made in: Germany
