Product Description

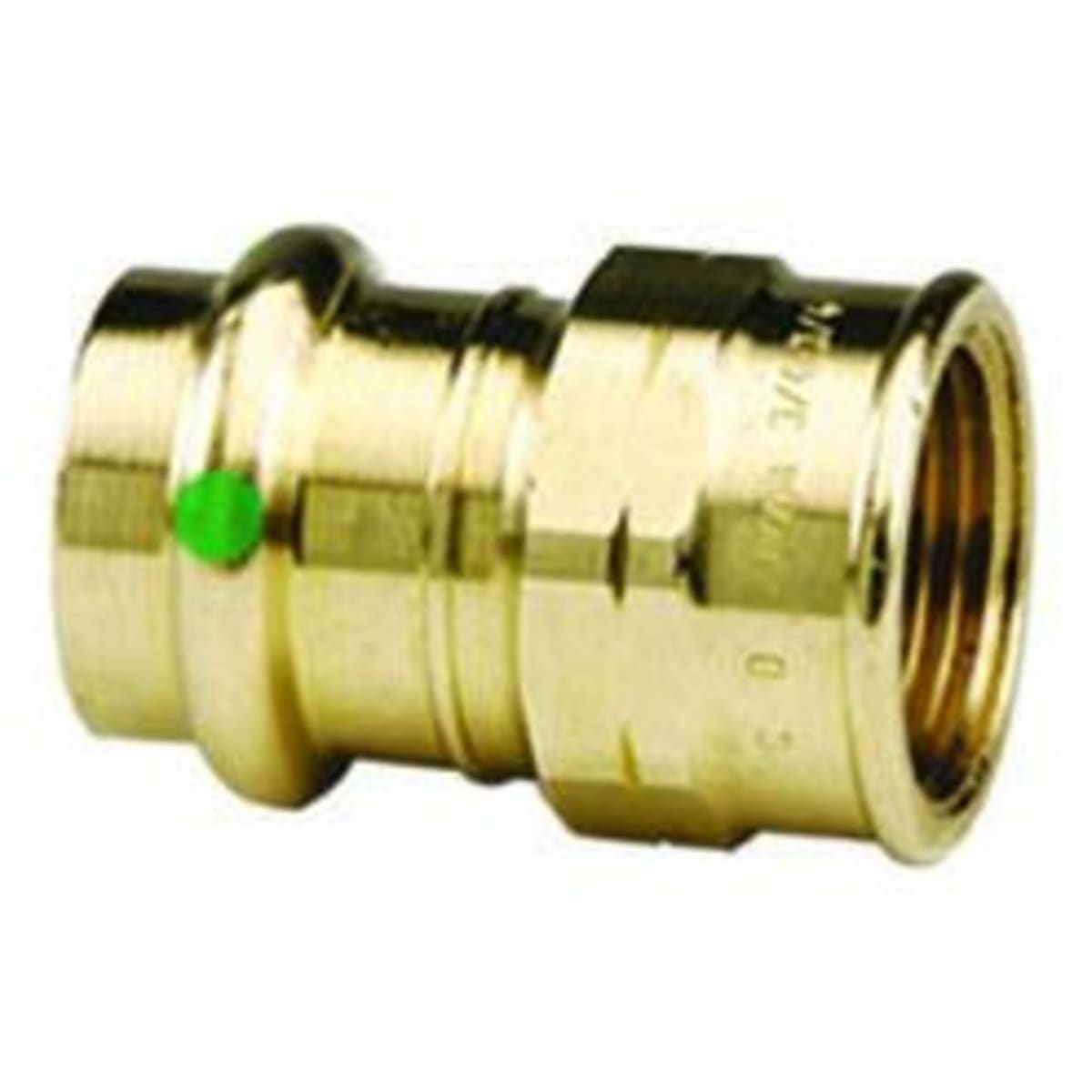

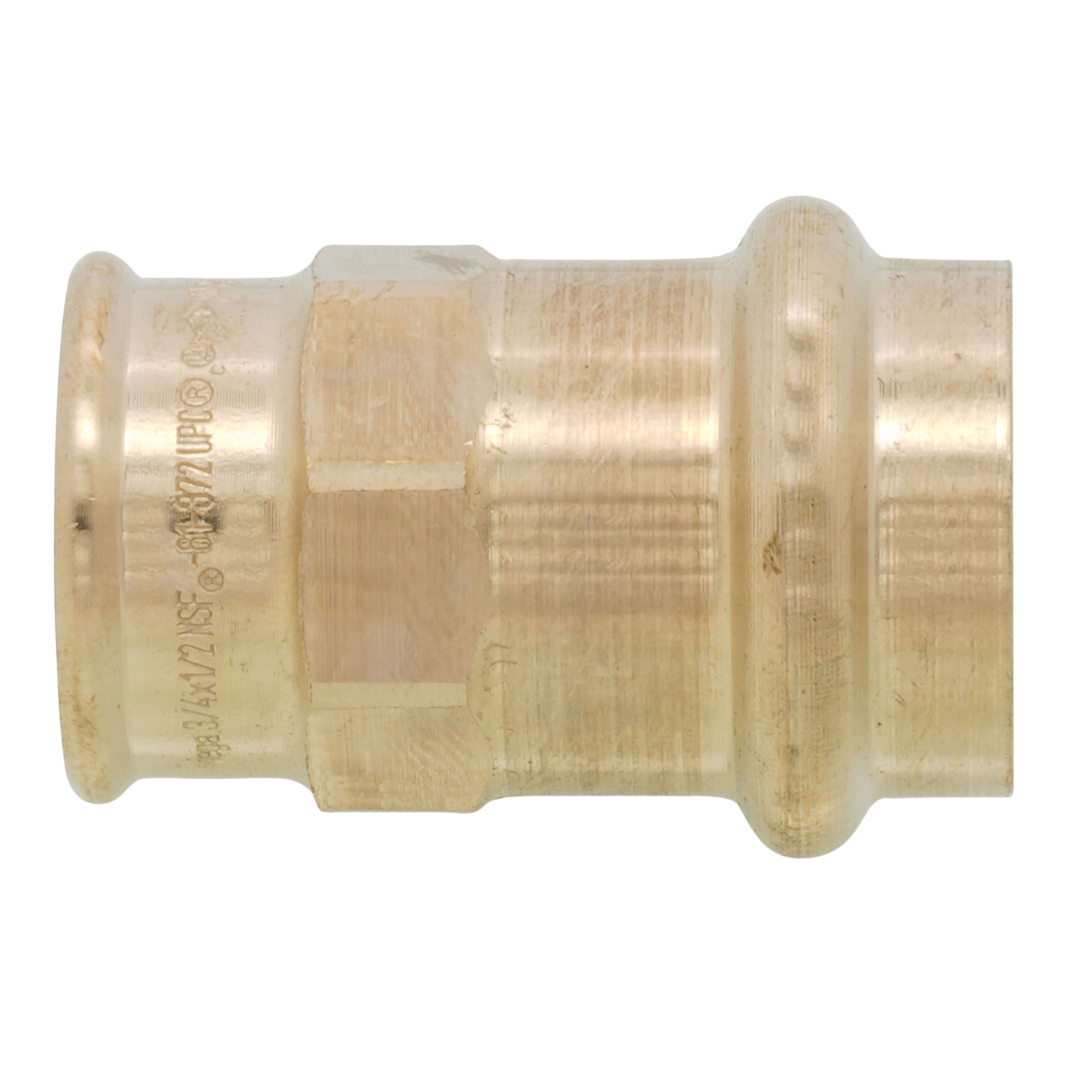

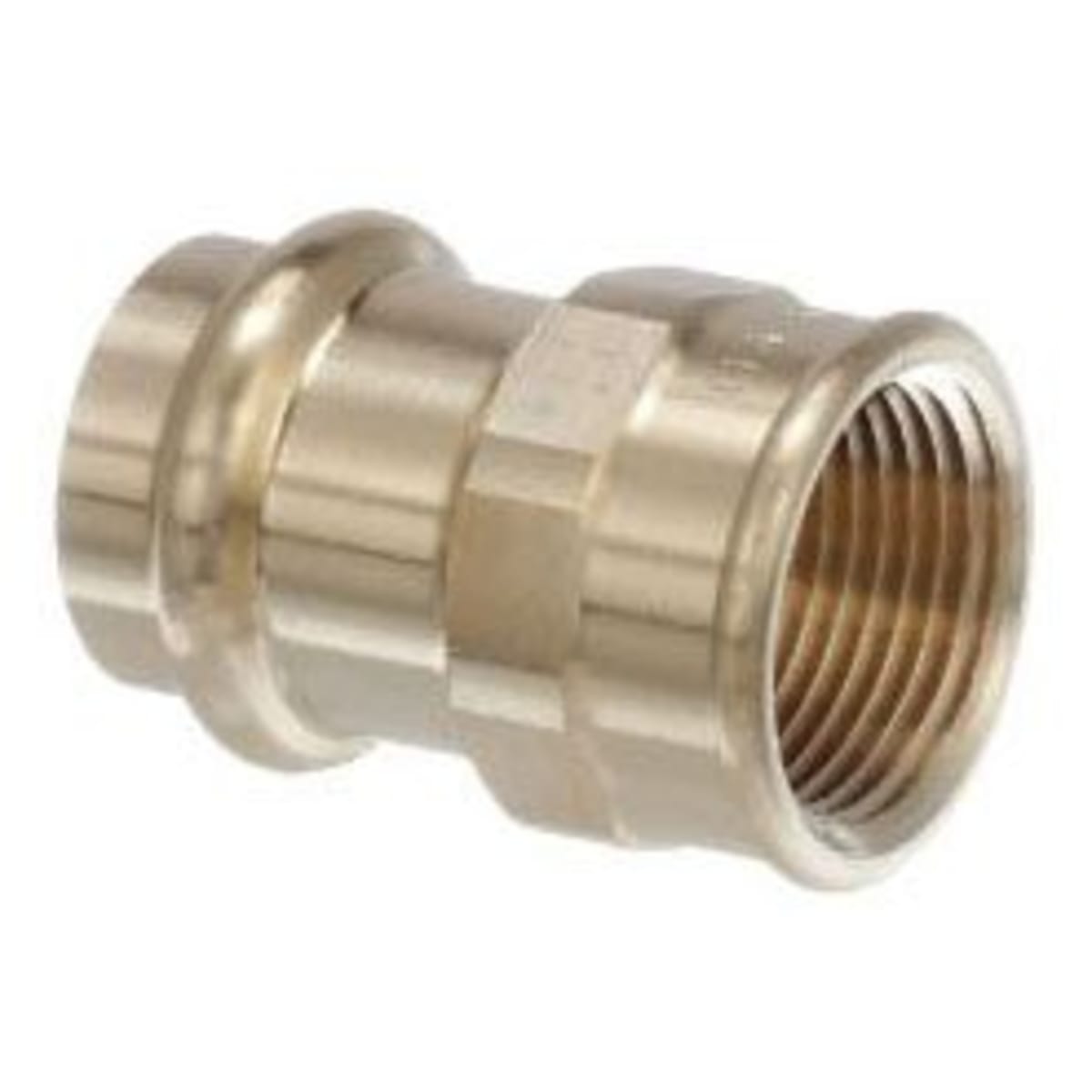

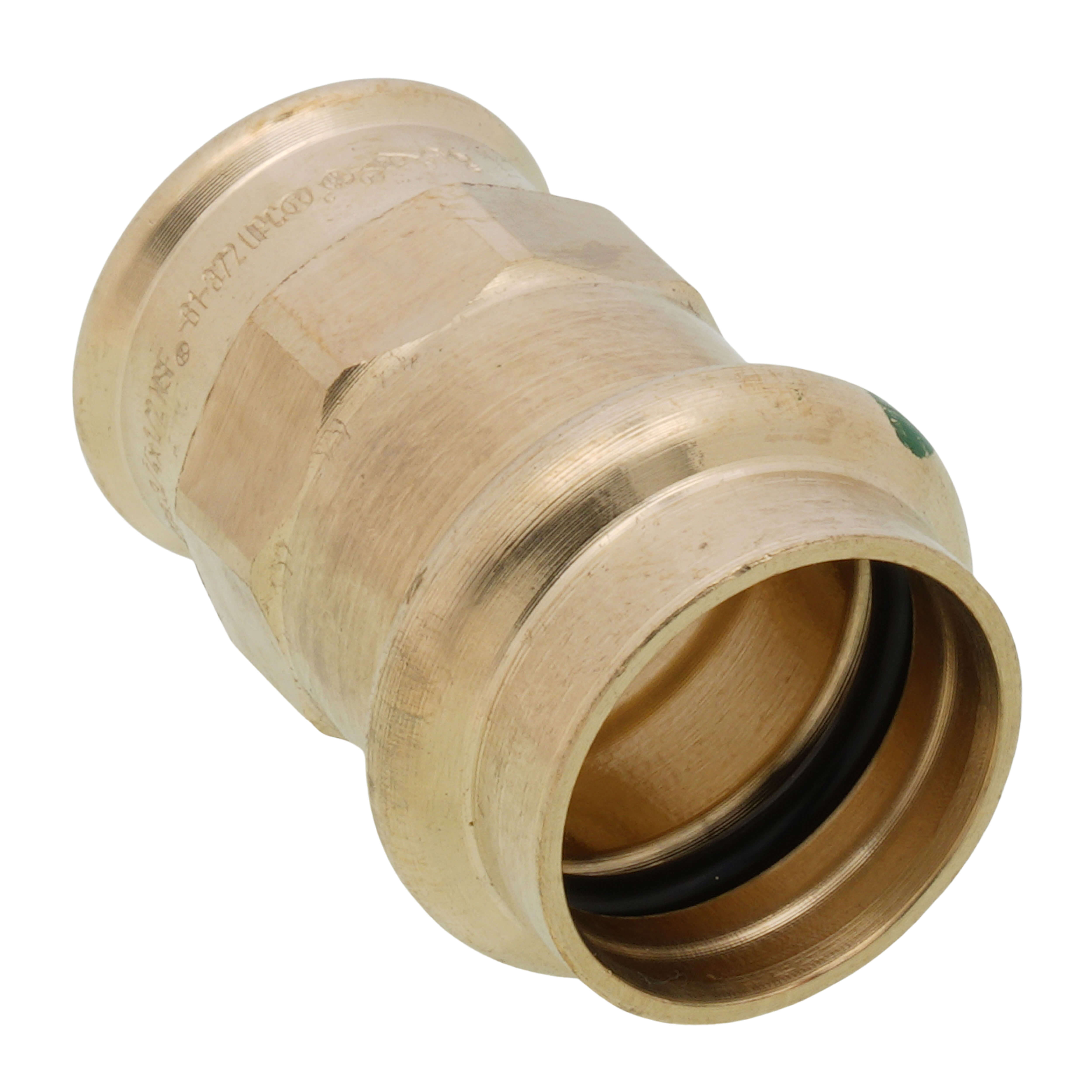

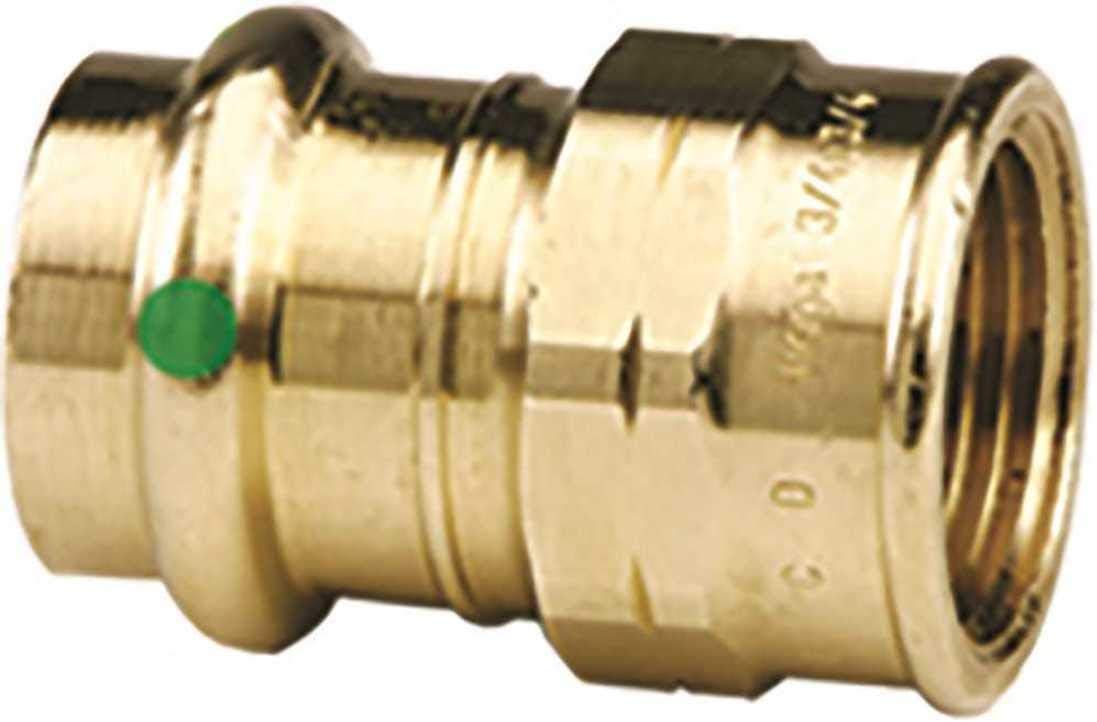

The Viega 79310 ProPress 2912ZL bronze adapter connects pipes of different sizes, specifically 3/4" to 1/2". This adapter is suitable for potable water, hydronic heating, chilled water, compressed air, and other applications. It features a ProPress x Female Threaded end connection, ensuring a secure and reliable fit.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and Easy to Use
Product Highlights
The Viega ProPress adapter provides a reliable, lead-free connection for various applications, offering ease of installation and reducing downtime.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 79310
-
Country of Origin: Germany
Technical Specifications
-
Shape: adapter
-
Material: Bronze
-
Measurement System: inch
-
Applicable Standard: ABS, NSF/ANSI 61/372, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
-
Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
-
Brand Name: ProPress
-
End Connection: ProPress x Female Threaded
-
Pressure Rating: 200 PSI
-
Product Sub-Type: Adapter Fitting
-
Product Type: Adapter
-
Series/Model: 2912ZL
-
Size A: 3/4 Inch
-
Size B: 1/2 Inch
-
Temperature Rating: 0 to 250 Deg F
-
Type: Female, Reducing
-
Fitting/Connector Type: Adapter
-
Nominal Size: 3/4 x 1/2 in
-
Temperature Range: 0 To 250 deg F
-
Length: 1.77 in
-
Lead-Free: Yes
-
Includes: EPDM Sealing Element
-
For Use with: ASTM B88 Tubing
-
Fitting Type: ProPress x FPT
-
Maximum Pressure: 200 PSI
-
Dimensions: 1.77 in L
-
End Style: Press x FNPT
-
Item [Specifications]: Adapter
-
Pipe Size [Specifications]: 1/2 in
-
Standards [Specifications]: ASTM B75, ASTM B88
-
Tube Size [Specifications]: 3/4 in x 1/2 in
-
Compliance [Specifications]: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
-
Fitting Shape [Specifications]: Adapter
-
Max. Pressure [Specifications]: 200 psi
-
Overall Length [Specifications]: 1 25/32 in
-
Stop and Shape [Specifications]: Straight Adapter
-
Connection Type [Specifications]: Press-Fit x FNPT
-
O-Ring Material [Specifications]: EPDM
-
Copper Tube Size [Specifications]: 3/4 in
-
Fitting Pipe Size [Specifications]: 1/2 in
-
End Connection Type [Specifications]: Press, Threaded
-
Pipe Size (Fittings) [Specifications]: 3/4" x 1/2"
-
Tube Fitting Material [Specifications]: Bronze
-
Specific Fitting Shape [Specifications]: Straight Adapter
-
Fitting Connection Type [Specifications]: Press x Female Pipe Thread
-
Basic Pipe Fitting Shape [Specifications]: Adapter
-
Fitting Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side B Pipe Size [Specifications]: 1/2 in
-
Pipe Size - Pipe Fitting [Specifications]: 3/4 in x 1/2 in
-
Maximum Operating Pressure [Specifications]: 200 psi
-
Basic Pipe Fitting Material [Specifications]: Metal
-
Specific Pipe Fitting Shape [Specifications]: Adapter
-
Pipe Fitting Connection Type [Specifications]: Press x Female Pipe Thread
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: FNPT
-
Fitting Side A Copper Tube Size [Specifications]: 3/4 in
-
Country of Origin (subject to change) [Specifications]: Germany
-
Connection Type: Press connection, female pipe thread
-
Feature: Smart Connect feature, Zero Lead
-
Size [Features]: 3/4" x 1/2"
-
Lead Free [Features]: Yes
-
Application [Features]: Plumbing
-
Thread Type [Features]: Female
-
Connection Type [Features]: Press x FNPT
