Product Description

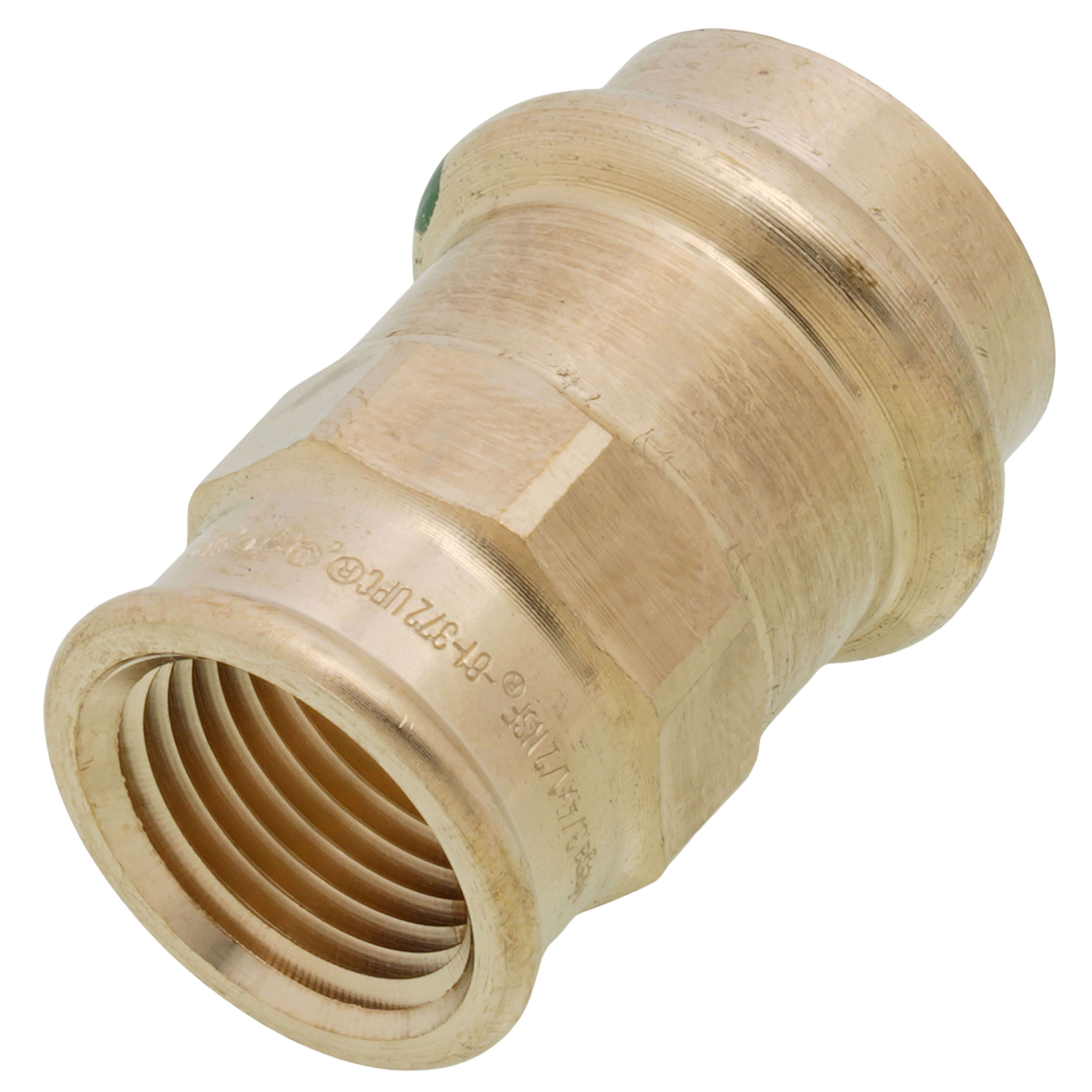

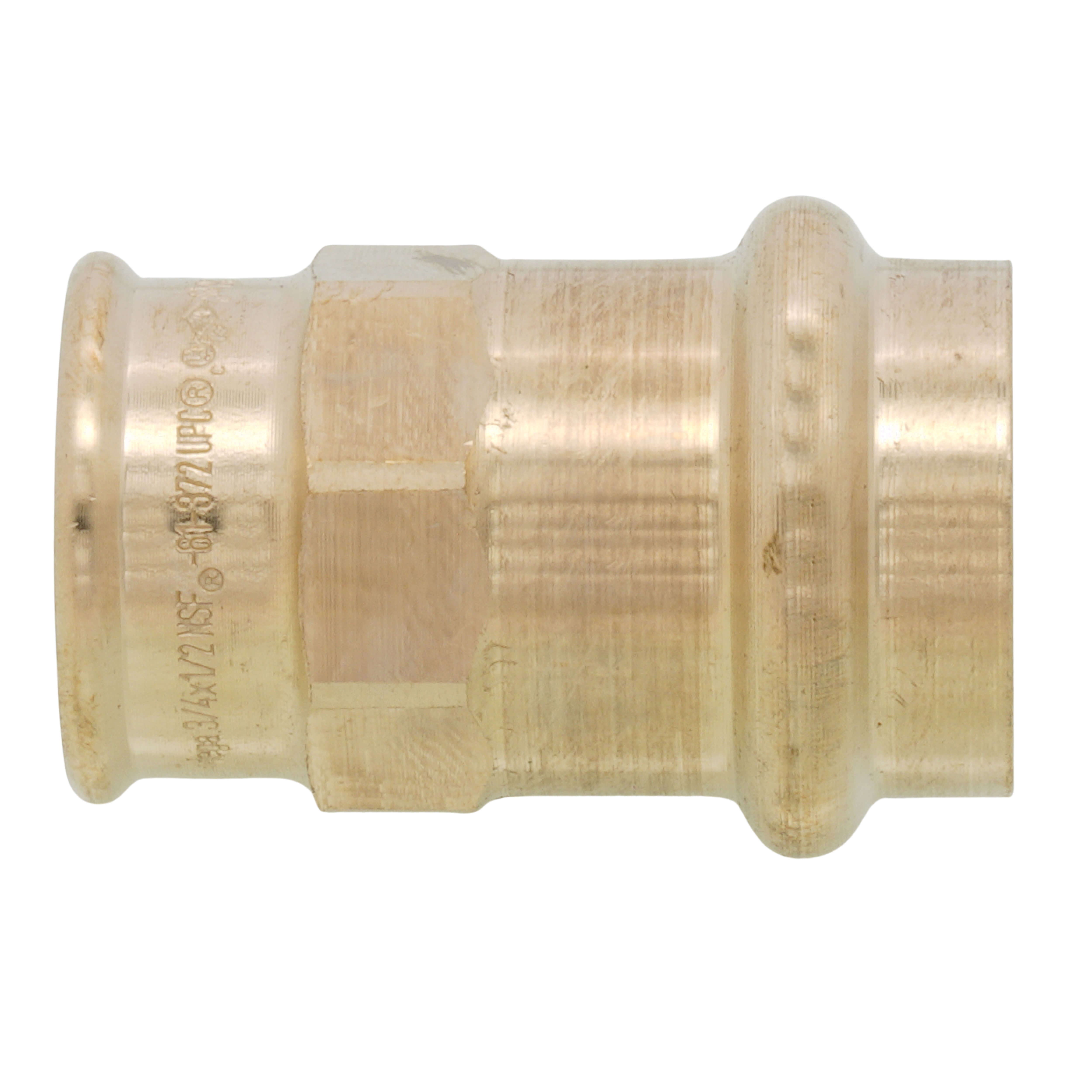

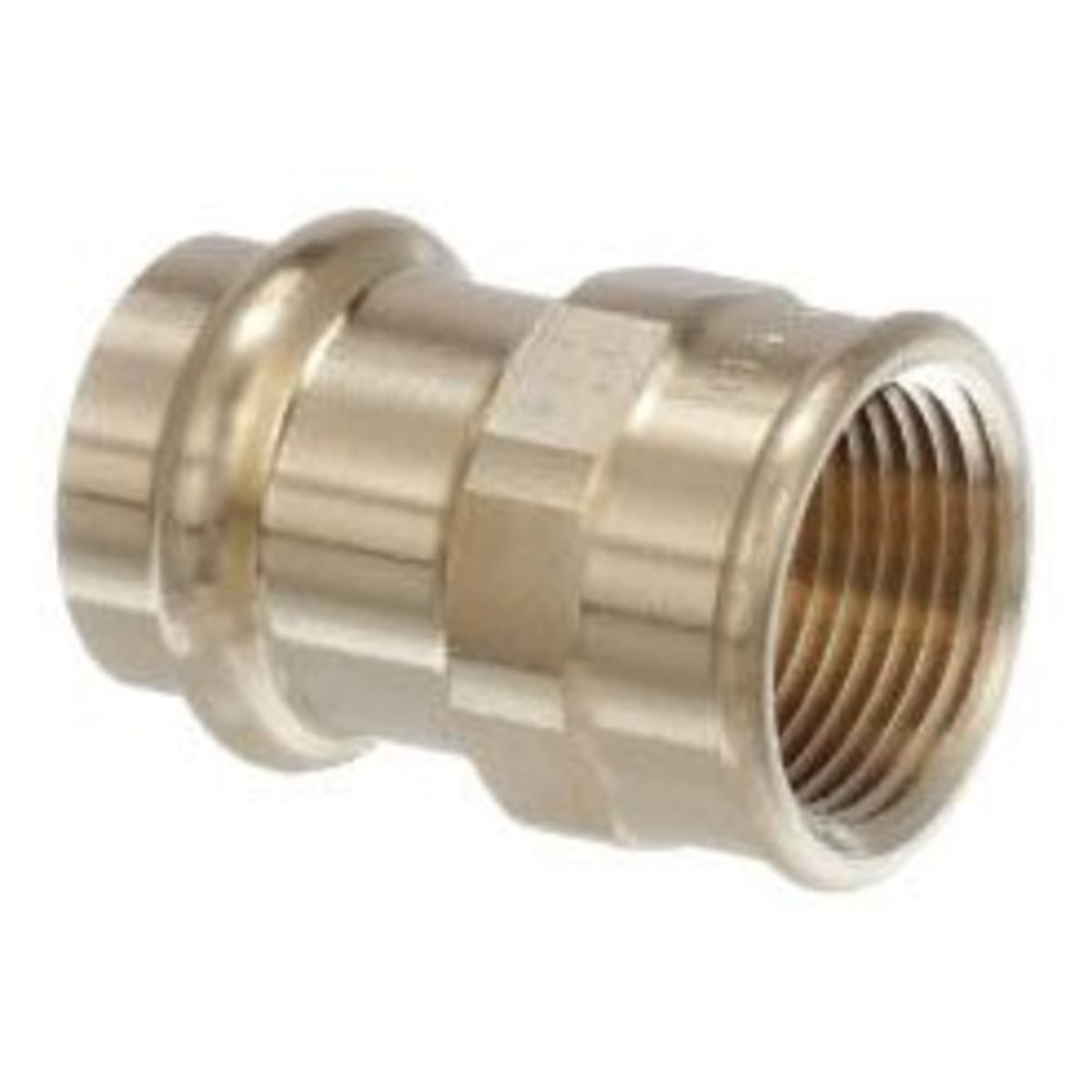

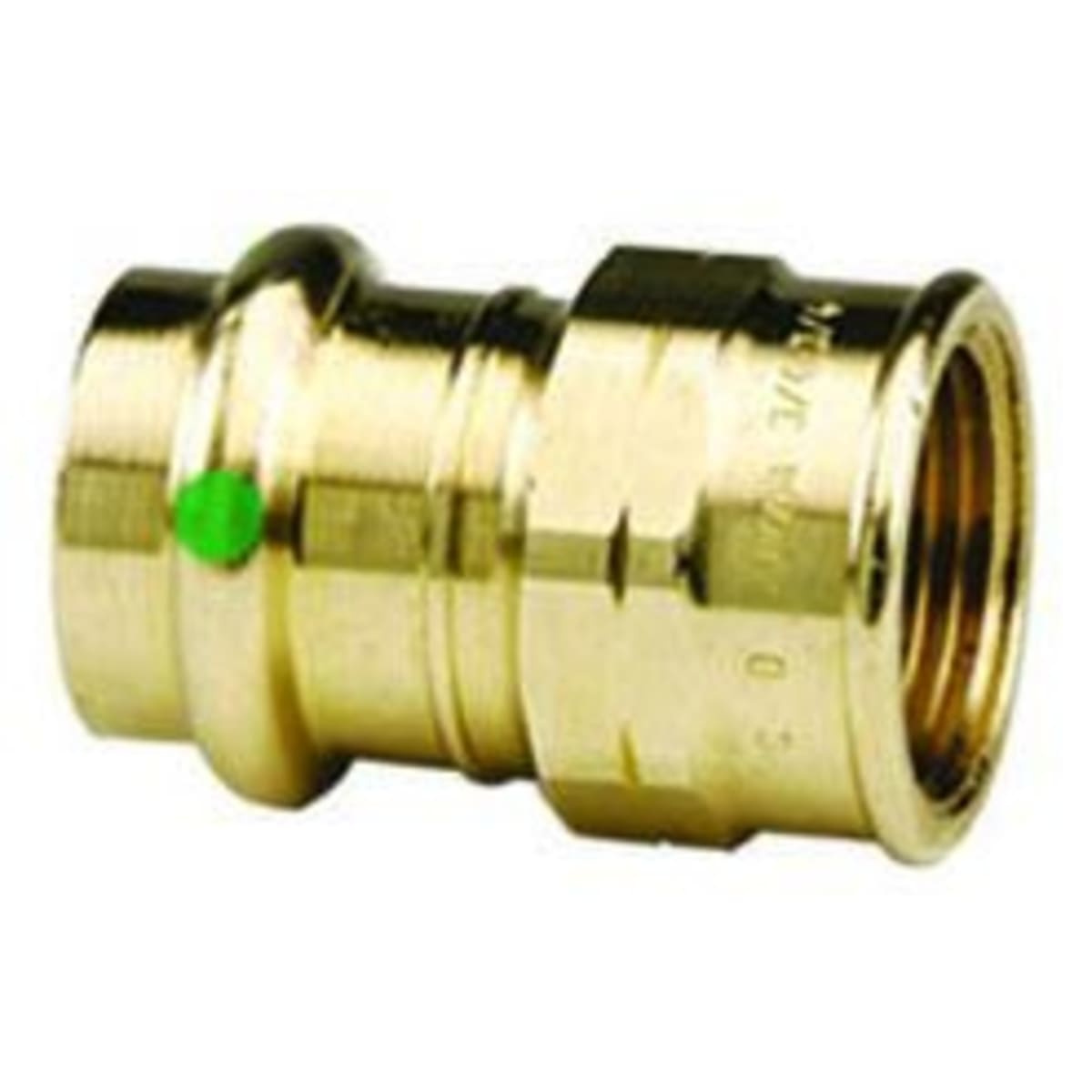

The Viega 79310 ProPress 2912ZL bronze adapter is a 3/4" x 1/2" adapter fitting with a ProPress x Female Threaded end connection. Constructed from bronze, it is suitable for potable water, hydronic heating, chilled water, compressed air, and other applications. It meets industry standards such as ABS and NSF/ANSI 61/372.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and Easy to Use
Product Highlights
This lead-free bronze adapter is easy to use and helps installers easily identify unpressed connections during pressure testing.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 79310
-
Country of Origin: Import
Technical Specifications
-
Shape: adapter
-
Material: Bronze
-
Measurement System: inch
-
Batteries Required?: No
-
Applicable Standard: ABS, NSF/ANSI 61/372, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
-
Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
-
End Connection: ProPress x Female Threaded
-
Pressure Rating: 200 PSI
-
Size A: 3/4 Inch
-
Size B: 1/2 Inch
-
Temperature Rating: 0 to 250 Deg F
-
Type: Female, Reducing
-
Fitting/Connector Type: Adapter
-
Nominal: 3/4 x 1/2 in
-
End Style: Press x FNPT
-
Temperature: 0 To 250 deg F
-
Length: 1.77 in
-
Size: 3/4" x 1/2"
-
Connection_Type: Press x FIP
-
fitting type 1: press bronze
-
fitting type 3: female adapter
-
fitting type 2: adapter/reducer
-
Size [Features]: 3/4" x 1/2"
-
Lead Free [Features]: Yes
-
Application [Features]: Plumbing
-
Thread Type [Features]: Female
-
Connection Type [Features]: Press x FNPT
-
Group: Pipe, Valves & Fittings
-
Vendor: Viega
-
Category: Fittings
-
Collection: PROPRESS
-
Product UPC: 691514793108
-
Model Number: 2912ZL
-
Product Type: Pipes/Valves/Fittings
-
Product Category: PVF
-
Product GTIN/EAN: 0691514793108
-
Type of Material: Bronze
-
Manufacturer Name: VIEGA
-
Dimensions: 1.77 in L
-
Domestic/Import: Import
-
Nominal Size: 3/4 x 1/2 in
-
Double Fitting Size: 3/4" x 1/2"
-
Dimensional Standards: ASTM B88 and B75
-
Compatibility with Copper Tubing: Yes
-
Corrosion Resistance: Yes
-
Lead-Free: Yes
-
UV Resistance: Yes
-
Item: Adapter
-
Pipe Size: 1/2 in
-
Standards: ASTM B75, ASTM B88
-
Tube Size: 3/4 in x 1/2 in
-
Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Temp. Range: 0 Degrees to 250 Degrees F
-
Fitting Shape: Adapter
-
Max. Pressure: 200 psi
-
Overall Length: 1 25/32 in
-
Stop and Shape: Straight Adapter
-
Connection Type: Press-Fit x FNPT
-
O-Ring Material: EPDM
-
Copper Tube Size: 3/4 in
-
Fitting Material: Bronze
-
Fitting Pipe Size: 1/2 in
-
End Connection Type: Press, Threaded
-
Pipe Size (Fittings): 3/4" x 1/2"
-
Tube Fitting Material: Bronze
-
Specific Fitting Shape: Straight Adapter
-
Fitting Connection Type: Press x Female Pipe Thread
-
Basic Pipe Fitting Shape: Adapter
-
Fitting Copper Tube Size: 3/4 in
-
Fitting Side B Pipe Size: 1/2 in
-
Pipe Size - Pipe Fitting: 3/4 in x 1/2 in
-
Maximum Operating Pressure: 200|PSI
-
Basic Pipe Fitting Material: Metal
-
Specific Pipe Fitting Shape: Adapter
-
Pipe Fitting Connection Type: Press x Female Pipe Thread
-
Maximum Operating Temperature: +250|deg F
-
Minimum Operating Temperature: 0|deg F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: FNPT
-
Fitting Side A Copper Tube Size: 3/4 in
-
Country of Origin (subject to change): Germany
-
Manufacturer Part Number Additional: 663641
-
Series/Model: 2912ZL
-
CATALOG NUMBER: 79310
-
COMMODITY CODE DESCRIPTION LEVEL 3: Tube Fittings
-
Product Sub-Type: Adapter Fitting
-
Additional Information: Lead-Free; Includes EPDM Sealing Element; For Use with ASTM B88 Tubing
-
Includes: EPDM Sealing Element
-
For Use with: ASTM B88 Tubing
-
Pressure: 200 psi
-
Selling Size: 3/4 x 1/2|in
-
Special Features: Smart Connect Technology, Lead-Free
-
Product Group: Home Improvement
-
Model / MPN: 79310
-
Size A REF: 0.75 IN
-
Size B REF: 0.5 IN
