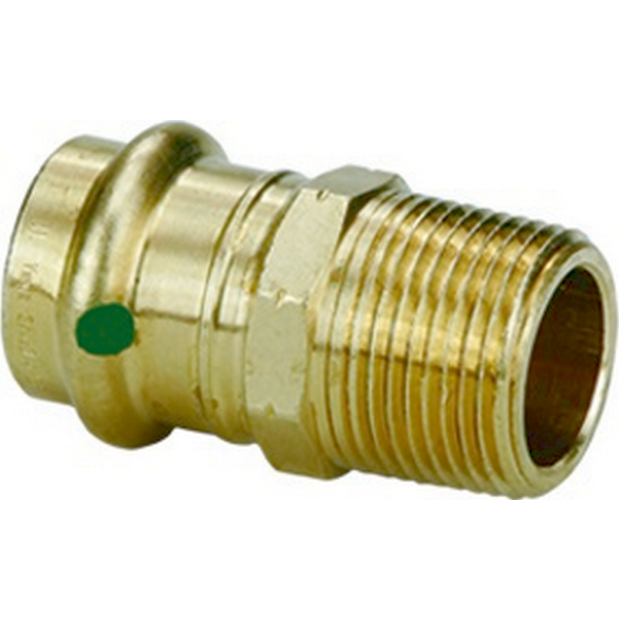

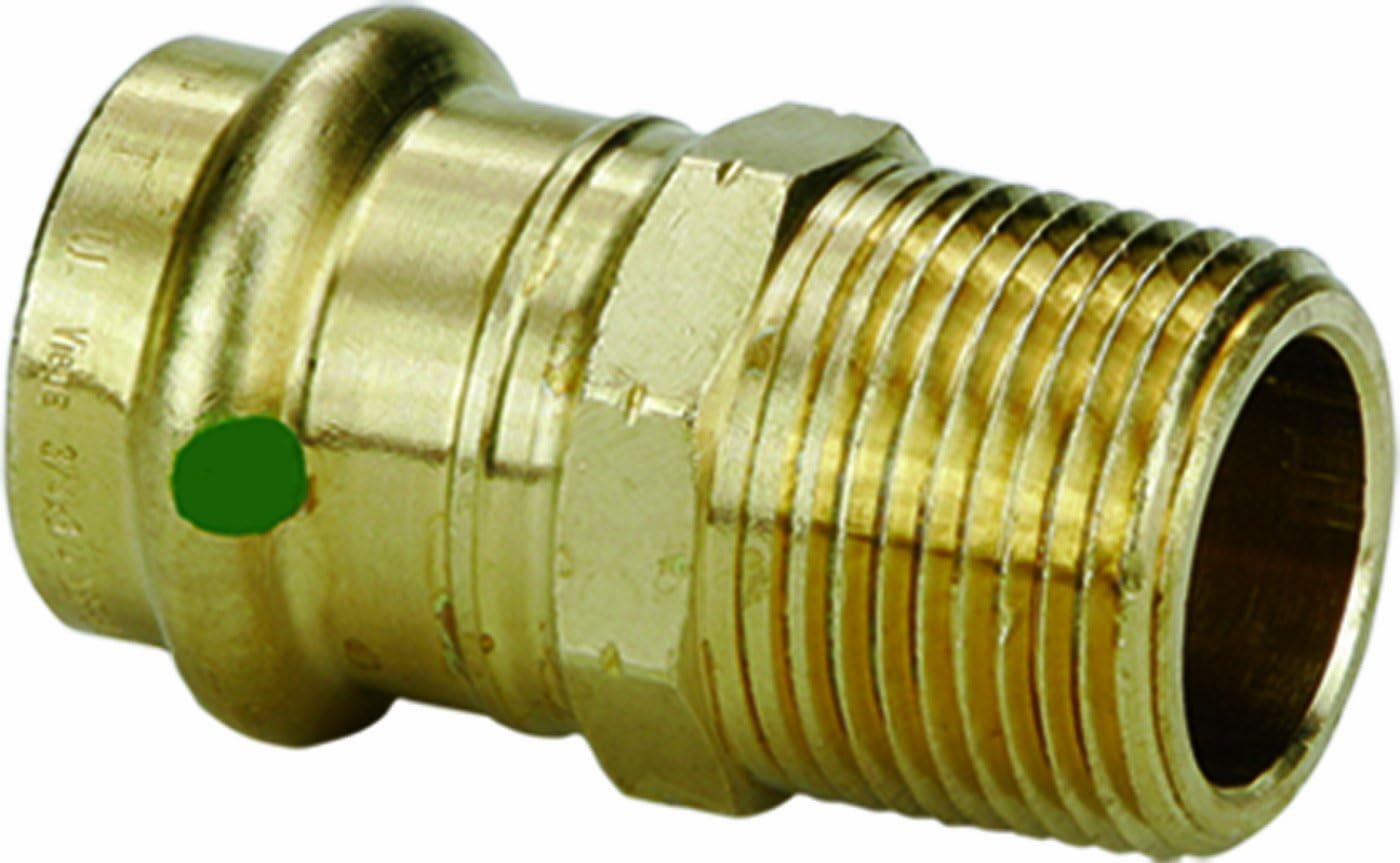

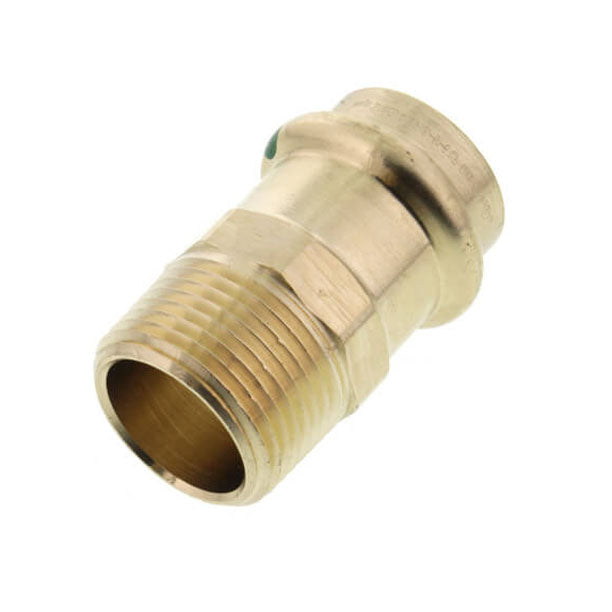

Viega 79230 Propress Zero Lead Bronze Adapter with Male 3/4 inches x 3/4 inches P x Male NPT (3-Pack)

Product Description

The VIEGA 79230 Propress is a zero lead bronze adapter with male 3/4" x 3/4" P x Male NPT. Viega ProPress fittings are for use with type K, L and M hard copper tubing from 1/2 to 4 in. and soft copper tubing in 1/2 to 1-1/4 in. diameter.

• Lead free
• Excellent chlorine resistance
• Patented Viega Smart Connect makes secure connection in less than 7 seconds

Product Highlights

The Viega ProPress system provides a fast, secure method to join copper tube without flame. It is perfect for plumbing, heating, fire protection or potable water systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79230
• Country of Origin: Germany

Technical Specifications

• Color: Bronze
• Material: Bronze
• Thread Size: 0.75
• Thread Type: NPT
• Connector Type: Adapter
• Exterior Finish: Bronze
• Number of Pieces: 3
• Batteries Required?: No
• For Use With: ASTM B88 Tubing
• Product Type: Adapter
• Selling Size: 3/4|in
• Catalog Number: 79230
• Pressure Rating: 200 PSI
• Specifications Met: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE-13, FM Class 1920, Florida Building Code, IAPMO Listed
• Brand: VIEGA
• Make: VIEGA LLC
• ManufacturerSKU: 663471
• ManufacturerName: VIEGA LLC
• Item [Specifications]: Adapter
• Pipe Size [Specifications]: 3/4 in
• Standards [Specifications]: ASTM B75, ASTM B88
• Tube Size [Specifications]: 3/4 in x 3/4 in
• Compliance [Specifications]: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Adapter
• Max. Pressure [Specifications]: 200 psi
• Overall Length [Specifications]: 1 15/16 in
• Stop and Shape [Specifications]: Straight Adapter
• Connection Type [Specifications]: Press-Fit x MNPT
• O-Ring Material [Specifications]: EPDM
• Copper Tube Size [Specifications]: 3/4 in
• Fitting Material [Specifications]: Bronze
• Fitting Pipe Size [Specifications]: 3/4 in
• End Connection Type [Specifications]: Press, Threaded
• Pipe Size (Fittings) [Specifications]: 3/4" x 3/4"
• Tube Fitting Material [Specifications]: Bronze
• Specific Fitting Shape [Specifications]: Straight Adapter
• Fitting Connection Type [Specifications]: Press x Male Pipe Thread
• Basic Pipe Fitting Shape [Specifications]: Adapter
• Fitting Copper Tube Size [Specifications]: 3/4 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Pipe Size - Pipe Fitting [Specifications]: 3/4 in x 3/4 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Basic Pipe Fitting Material [Specifications]: Metal
• Specific Pipe Fitting Shape [Specifications]: Adapter
• Pipe Fitting Connection Type [Specifications]: Press x Male Pipe Thread
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: MNPT
• Fitting Side A Copper Tube Size [Specifications]: 3/4 in
• Country of Origin (subject to change) [Specifications]: Germany
• End Style: Press x MNPT
• Nominal Size: 3/4 in
• Type: Male
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• End Connection: ProPress x Male Threaded
• Temperature Rating: 0 to 250 Deg F
• Applicable Standard: UL, CSA MSE-13, ABS, UPC, NBCC, NPCC, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/61G/372, PHCC, ULC/ANSI ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16 .51
• Lead-Free: true
• Includes: EPDM Sealing Element
• Dimensions: 1-15/16 in L
• Domestic/Import: Import
• Fitting/Connector Type: Adapter
• Body Material: Low Lead Bronze
• Tube Size: 3/4 In.
• Pipe Size: 3/4 In.
• Temp. Range: 0 Degrees to 250 Degrees F
• Standards: ASTM B88, ASME B16.22, ASME B16.51
• Compliance: NSF-61G, UPC, ICC, CSA, UL
• Model / MPN: 79230
• Manufacturer: Viega
• Measurement System: inch
• Batteries Included?: No
• fitting type 1: press bronze
• fitting type 3: male adapter
• fitting type 2: adapter/reducer
• size: 3/4" x 3/4"
• secondary category: fitting
• fitting type: male adapter
• size 2: 3/4" mpt
• category: propress
• size 1: 3/4"pp
• Size [Features]: 3/4" x 3/4"
• Thread Type [Features]: Male
• Connection Type [Features]: Press x Male
• Brand Name: ProPress
• CATALOG NUMBER: 79230
• Series/Model: 2911ZL
• UNSPSC Code: 40183109
• Additional Information: Lead-Free; Includes EPDM Sealing Element; For Use with ASTM B88 Tubing
• Manufacturer Part Number: 79230
• Application: Potable Water, Hydronic Heating with Glycol, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Features/Benefits: It has Reduced Overall Job Cost, Saved Time and Increased Reliability on Jobsite Across the Globe Smart Connect a Patented Technology that Help Installer Easily Identify an Unpressed Fitting, Providing them with Added Confidence in their Connection Safe, Reliable and Economical Copper Pipe Installation System that Use Modern Cold Press Connection Technology Lead-Free
• Size: 3/4 in
• Domestic Import: Import
• Country Of Origin: DE
• Fitting Shape: Straight
• Fitting Side A Connection Type: Press-fit
• Fitting Side A Copper Tube Size (Nominal): 3/4 in
• Fitting Side B Connection Type: MNPT
• Fitting Side B Pipe Size (Nominal): 3/4 in
• Maximum Operating Pressure: 200 psi
• Temperature Range: 0 "0F to 250 "0F
• Overall Length: 1-15/16 in
• For Media Type: Potable Water
• UNSPSC: 40141719
• Unit Count: 1.0 Count
• Series: Addison
• Weight: 0.16
• MFG #: 79230
• Pipe Sizes (P x MPT): 3/4" x 3/4"
• MPT: 3/4"
• P: 3/4"
• Barcode: 30691514792300
• A: 1.02 in
• L: 1.93 in
