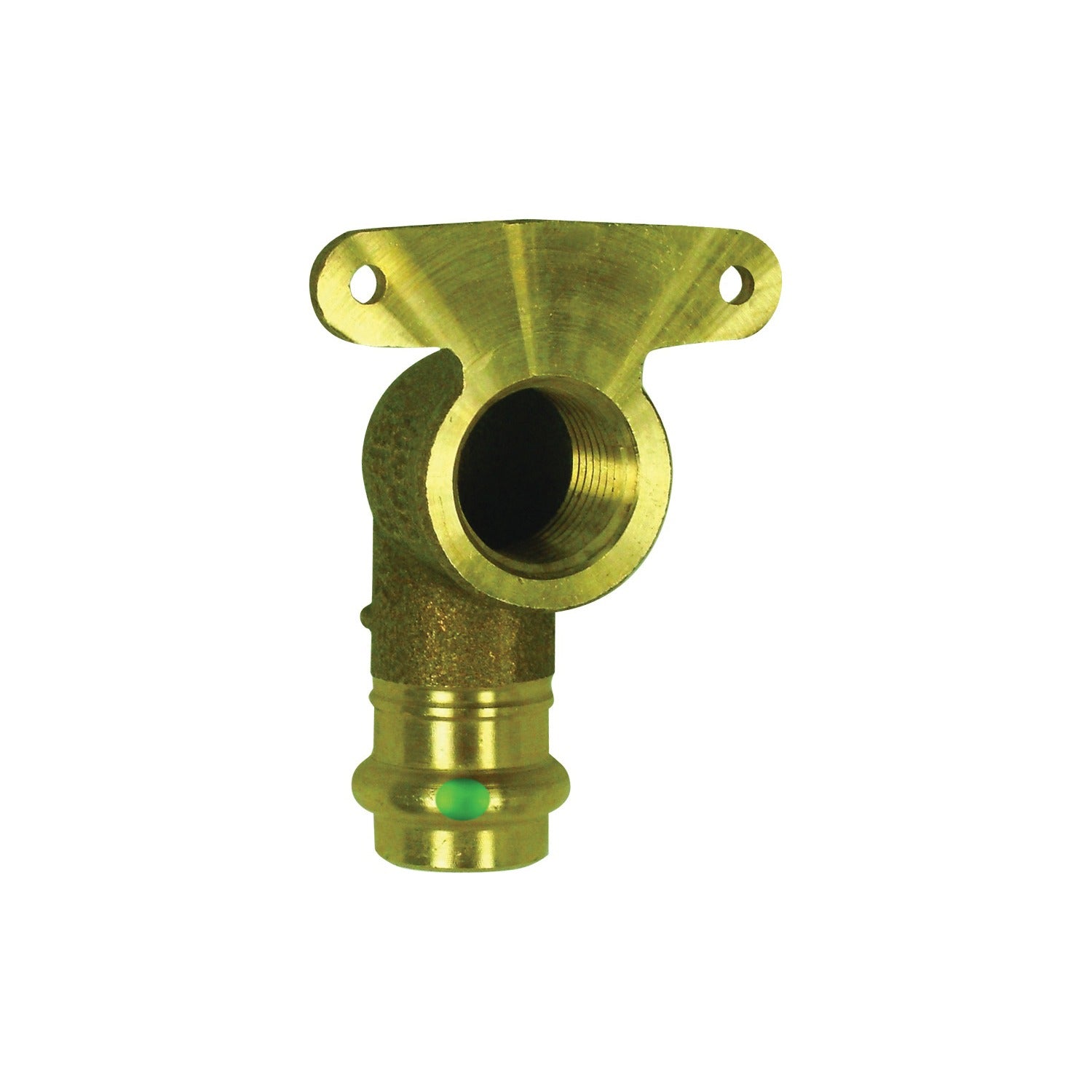

Viega 79205 90 Degree Drop-ear Elbow 1/2 Inch Bronze

Product Description

The VIEGA 79205 is a 90-degree drop-ear elbow designed for use in press-fit copper piping systems. It features a Press x Female NPT (FNPT) end style, allowing one side to connect to copper tube via a press connection while the other side threads into a female NPT fitting or valve. The 1/2-inch nominal size and bronze construction make it a durable choice for potable water supply and hydronic applications. Licensed plumbers install this fitting as part of rough-in work where a wall-mounted outlet is needed, such as a shower arm or faucet supply stub-out secured directly to framing through the ear flanges.

This drop-ear elbow is suited for residential and light commercial plumbing installations where a press-fit copper system terminates at a wall-mounted threaded connection. The ear flanges allow the fitting to be screwed directly to wall framing or blocking, providing a stable, rigid mount that resists torque when a fixture or valve is threaded on. It is commonly used in new construction and remodel work where speed and flame-free installation are priorities.

Key Features

• 90-degree turn with integrated ear flanges for wall or framing attachment
• Press x FNPT end style enables tool-pressed copper connection on one end and threaded connection on the other
• 1/2-inch nominal size fits standard residential water supply lines
• Bronze construction for corrosion resistance in wet and potable water environments
• Flame-free press connection reduces installation time and fire risk in framed walls

Compatibility

Designed as an OEM-style press-fit drop-ear elbow compatible with 1/2-inch nominal copper tubing systems using standard press-fit tooling and FNPT-threaded fixtures or valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and depressurize the line before pressing or threading any connections. Use the appropriate jaw set for the 1/2-inch press connection with a calibrated press tool. Do not use pipe dope or thread sealant on the press end; apply appropriate thread sealant only to the FNPT threads.

Technical Specifications

• Nominal Size: 1/2 inch
• End Style: Press x FNPT
• Angle: 90 degrees
• Material: Bronze
• Origin: Import

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79205
