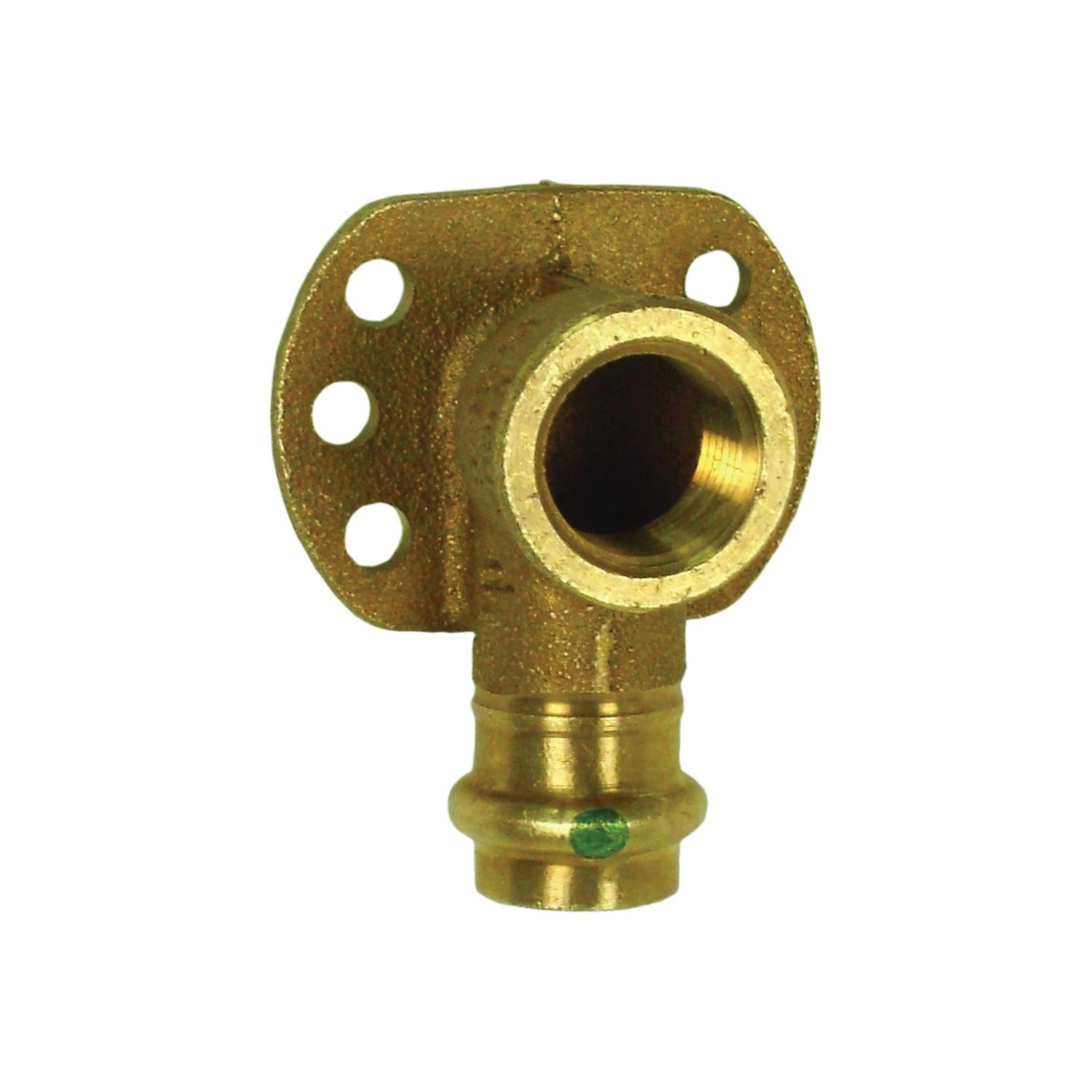

Viega 79195 90 Degree Drop-ear Elbow 3/4 in Press Fnpt Bronze

Product Description

The VIEGA 79195 is a 90-degree drop-ear elbow fitting designed for use in press-connect copper piping systems. It features a 3/4-inch nominal size with a Press x FNPT end style, allowing one end to be joined via a press tool and the other to accept a female NPT threaded connection. The body is constructed from bronze, offering corrosion resistance suitable for potable water, hydronic heating, and related plumbing applications. This fitting is typically installed by licensed plumbers during rough-in work where a pipe run must terminate at a wall-mounted fixture or valve with a threaded female port.

The drop-ear elbow is commonly used in residential and light commercial plumbing installations where a 90-degree directional change is needed along with a secure wall-mounting point. The two integral mounting ears allow the fitting to be fastened directly to a stud or backing plate, preventing movement at the fixture connection point. Typical applications include shower arm stubs, tub spout drops, and similar fixed-outlet installations where pipe stability is critical.

Key Features

• 90-degree elbow geometry for directional pipe routing
• Drop-ear design with integral mounting ears for wall or stud attachment
• Press x FNPT end style combines tool-free press connection with threaded outlet compatibility
• Bronze construction provides corrosion resistance in wet plumbing environments
• 3/4-inch nominal size fits standard residential and light commercial pipe sizing

Compatibility

Designed as an OEM-style press fitting for use in 3/4-inch nominal copper press piping systems requiring a 90-degree drop-ear transition to a female NPT threaded outlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and depressurize the system before making any connections. The press end requires a compatible press tool and jaw set rated for the fitting size and material. The FNPT port must be connected using an appropriately rated thread sealant or tape; do not over-torque threaded connections on bronze fittings.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: Press x FNPT
• Angle: 90 degrees
• Material: Bronze
• Fitting Type: Drop-Ear Elbow

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79195
