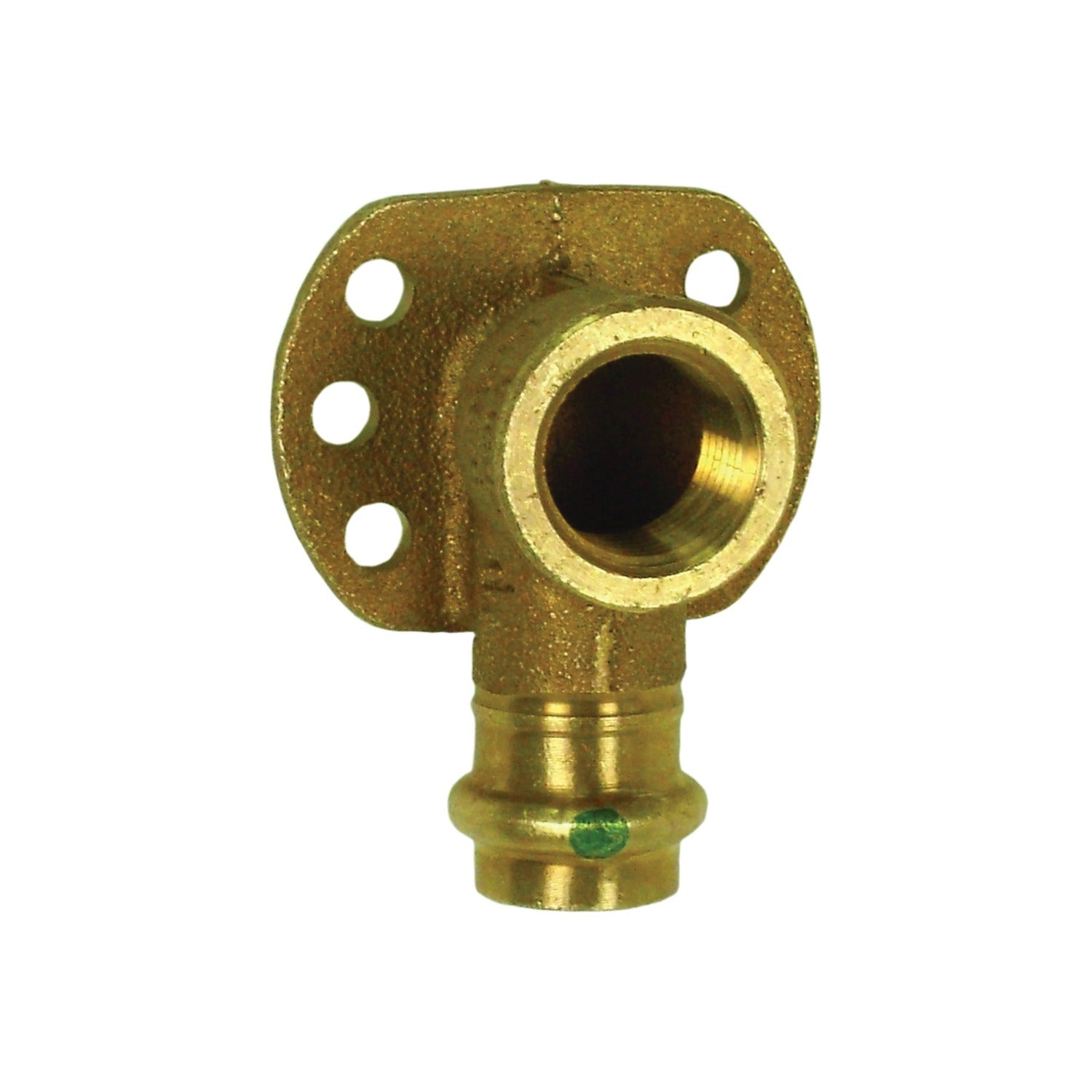

Viega 79190 90 Degree Drop-ear Elbow 1/2 in Press X Fnpt

Product Description

The VIEGA 79190 is a 90-degree drop-ear elbow designed for use in press-fit copper piping systems. Manufactured from bronze, this fitting connects a press-style pipe end to a female NPT threaded outlet while providing a mounting ear for securing the fitting to a structural surface. The drop-ear configuration is commonly used where a supply stub-out needs to be anchored at a wall, floor, or framing member. Licensed plumbers and pipefitters install this fitting as part of residential and light commercial water distribution work where tool-based press connections are specified.

This fitting is suited for residential and light commercial plumbing applications where 1/2-inch copper press systems terminate at a threaded connection point. Typical installations include shower valves, faucet supply stubs, and other wall-mounted fixture outlets where the ear allows the fitting to be screwed to framing before the fixture is installed. The press end accepts standard press-fit tooling, and the FNPT outlet accepts standard threaded male adapters or valve bodies.

Key Features

• 90-degree drop-ear geometry with mounting ear for attachment to framing or blocking
• Press x FNPT end style allows connection from a press-fit copper system to a threaded outlet
• 1/2-inch nominal size suits common residential water supply applications
• Bronze construction provides corrosion resistance in potable water systems
• Compatible with standard press-fit jaw tooling used on copper press fittings

Compatibility

Designed as an OEM-style press-fit drop-ear elbow for use in 1/2-inch nominal copper press piping systems with female NPT threaded outlets.

Installation Notes

Installation must be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and depressurize the line before making any connections. The press end requires a calibrated press tool with the correct jaw profile for 1/2-inch copper press fittings. Secure the mounting ear to solid framing or blocking before completing the press connection to prevent movement at the stub-out.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
