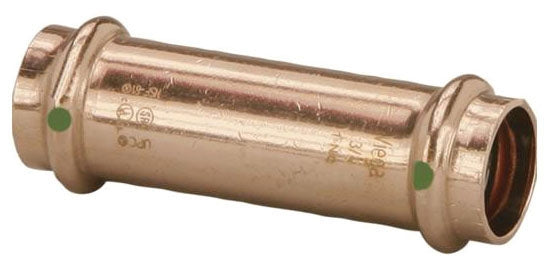

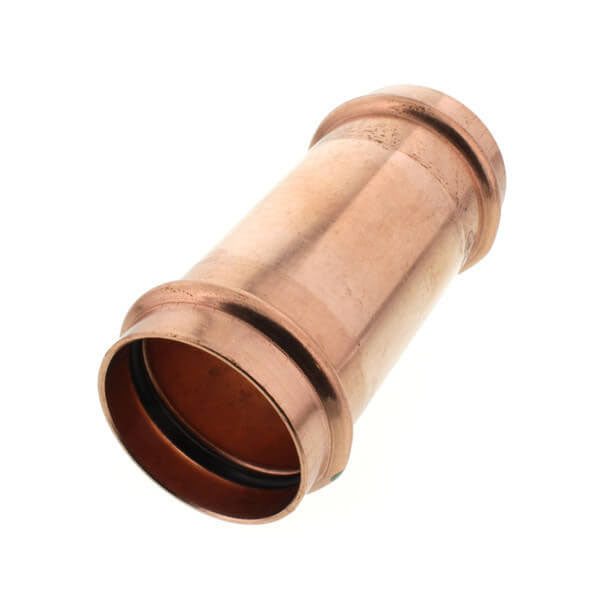

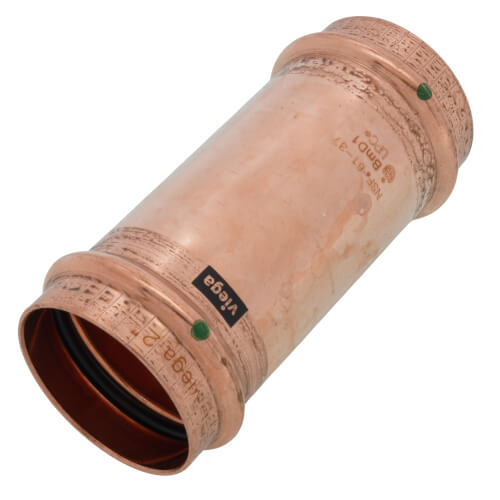

Viega 79030 ProPress Extended Coupling 2 x 2 Copper

Product Description

The Viega 79030 ProPress extended coupling is designed for seamless connections in copper piping systems. This coupling, made by Viega, a trusted name in plumbing solutions, ensures secure and efficient installations. It is crafted for use with ASTM B88 tubing, making it versatile for various applications such as potable water, hydronic heating, and low-pressure steam.

• Extended coupling with no stop
• For 2-inch copper tubing
• Rated for 200 PSI and up to 250 degrees Fahrenheit

Product Highlights

The Viega 79030 ProPress coupling features an extended design and uses ProPress technology to provide a reliable, lead-free connection. This fitting is suitable for various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: Viega
• MPN: 79030

Technical Specifications

• Material: Copper
• Connection Type: Press x Press
• Size: 2 inches
• Pressure Rating: 200 PSI
• Temperature Range: 0 to 250 degrees Fahrenheit
• Applicable Standards: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372, PHCC, ULC/ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16 .51
• Gasket: EPDM Sealing Element
• Applications: Potable Water, Hydronic Heating, Chilled Water, Low Pressure Steam, Compressed Air, Non-Medical Gas, Vacuum
• Lead-Free: Yes
