Product Description

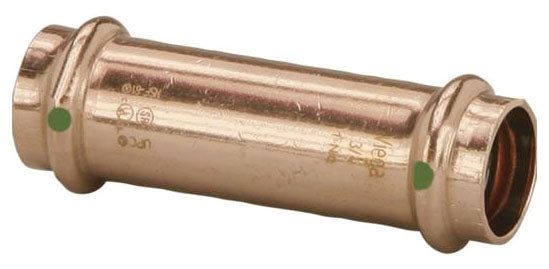

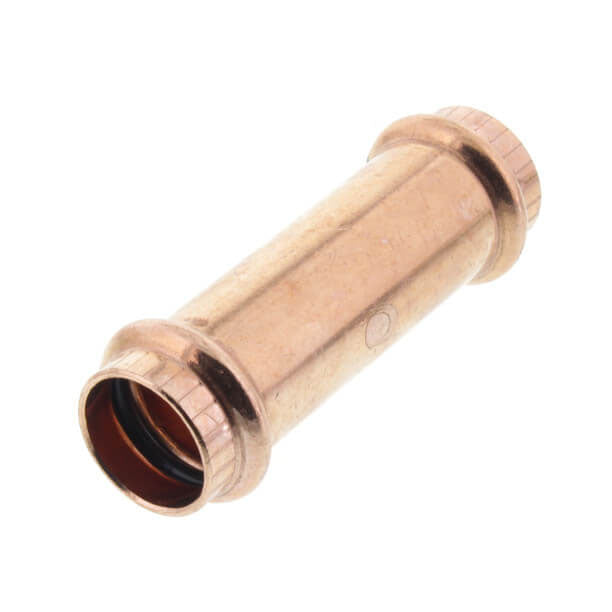

The Viega 79010 is a ProPress extended copper coupling with a no-stop design. This fitting is suitable for connections with a size of three-fourths inch. It offers a pressure rating of two hundred PSI. The coupling is made of lead-free copper to comply with safety standards.
- Material: Copper
- Pressure Rating: 200 PSI
- Temperature Rating: 0 to 250 degrees Fahrenheit
Product Highlights
This coupling is crucial for various applications including fire sprinklers, chilled water systems, and hydronic heating. It is engineered for use with ASTM B88 tubing and ensures efficient connections without the need for flame or solder.
Product Information
Standard Information
-
Manufacturer: Viega
-
Type: Extended, No Stop
Technical Specifications
-
Size A: 3/4 Inch
-
Size B: 3/4 Inch
-
Gasket Supplied: Yes
-
Gasket Details: EPDM Sealing Element
-
Application: Fire Sprinkler, Chilled Water, Hydronic Heating, Low Pressure Steam, Compressed Air, Potable Water, Non-Medical Gas, Vacuum
-
Applicable Standard: UL, CSA MSE-13, ABS, CRN, FM 1920, NSF/ANSI 61/372
