Product Description

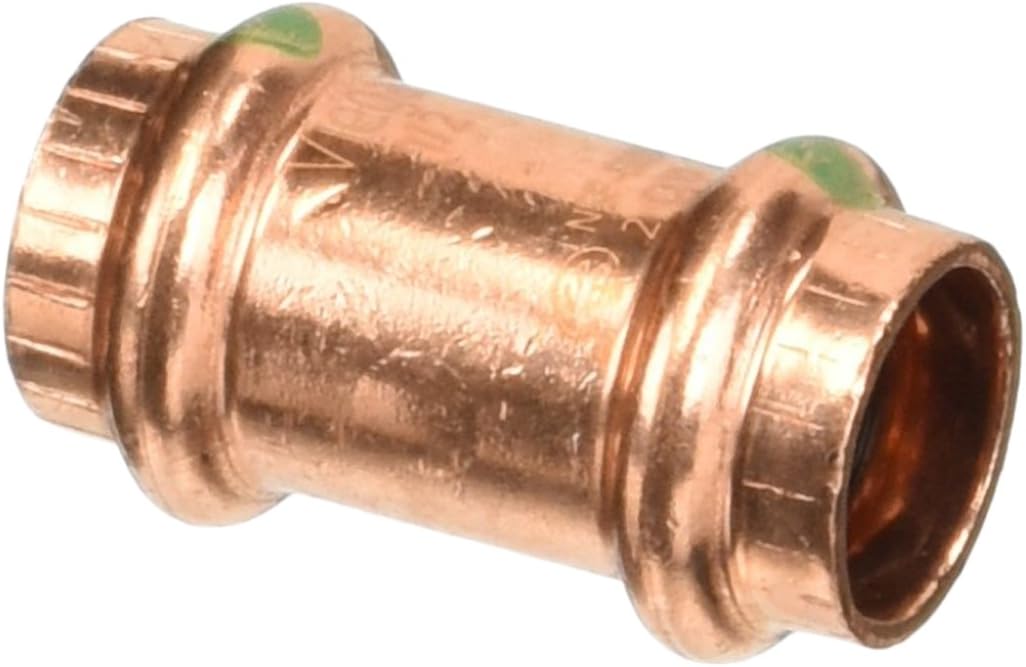

The Viega 78172 Propress Coupling Without Stop is designed for reliable plumbing connections. This coupling features a press connection on both ends, making it ideal for use with type K, L, and M copper tubing. It supports a pressure rating of two hundred PSI and a temperature rating up to two hundred fifty degrees Fahrenheit.
- Connection type: ProPress x ProPress
- Material: Copper
- EPDM sealing element included
Product Highlights
This coupling is suitable for a wide range of applications, including potable water systems, hydronic heating, and compressed air systems. It provides a fast and effective connection, minimizing downtime and ensuring a secure fit without the need for flame, solder, or flux.
Product Information
Standard Information
Technical Specifications
-
Size A: 1/2 inch
-
Size B: 1/2 inch
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 degrees F
-
Material: Copper
-
Applicable Standards: NSF 61G, ABS, CSA MSE-13, IAPMO PS117
-
Gasket Details: EPDM Sealing Element
-
For Use with: ASTM B88 Tubing
