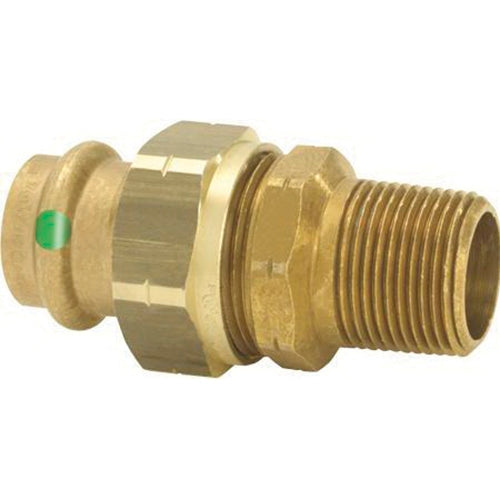

Viega 77787 ProPress 2965 Bronze Union 3/4 in Press x MPT

Product Description

The Viega 77787 ProPress Bronze Union is designed for reliable performance in various piping systems. This fitting, with a connection size of three-fourths inches, features press x MPT connection type. It is suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinklers, low pressure steam, and vacuum applications.

• Zero-lead construction
• Smart connect technology
• Ground joint with EPDM sealing element

Product Highlights

This product adheres to multiple certifications, including NSF 61G, IAPMO, UL, and FM standards, ensuring it meets industry requirements.

Product Information

Standard Information

• Brand: Viega
• Manufacturer: Viega

Technical Specifications

• Model: 2965
• Item Name: Union
• Material: Bronze
• Length: 3.05 inches
• Connection Size: 3/4 inches
• Connection Type: Press x MPT
• Pressure Rating: 200 psi
• Temperature Rating: 0 - 250 degrees F
• Standards/Certifications: NSF 61G certified, IAPMO PS117, UL 213, FM class 1920, ICC LC 1002, CSA MSE-13
• Applications: For potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler, low pressure steam and vacuum
