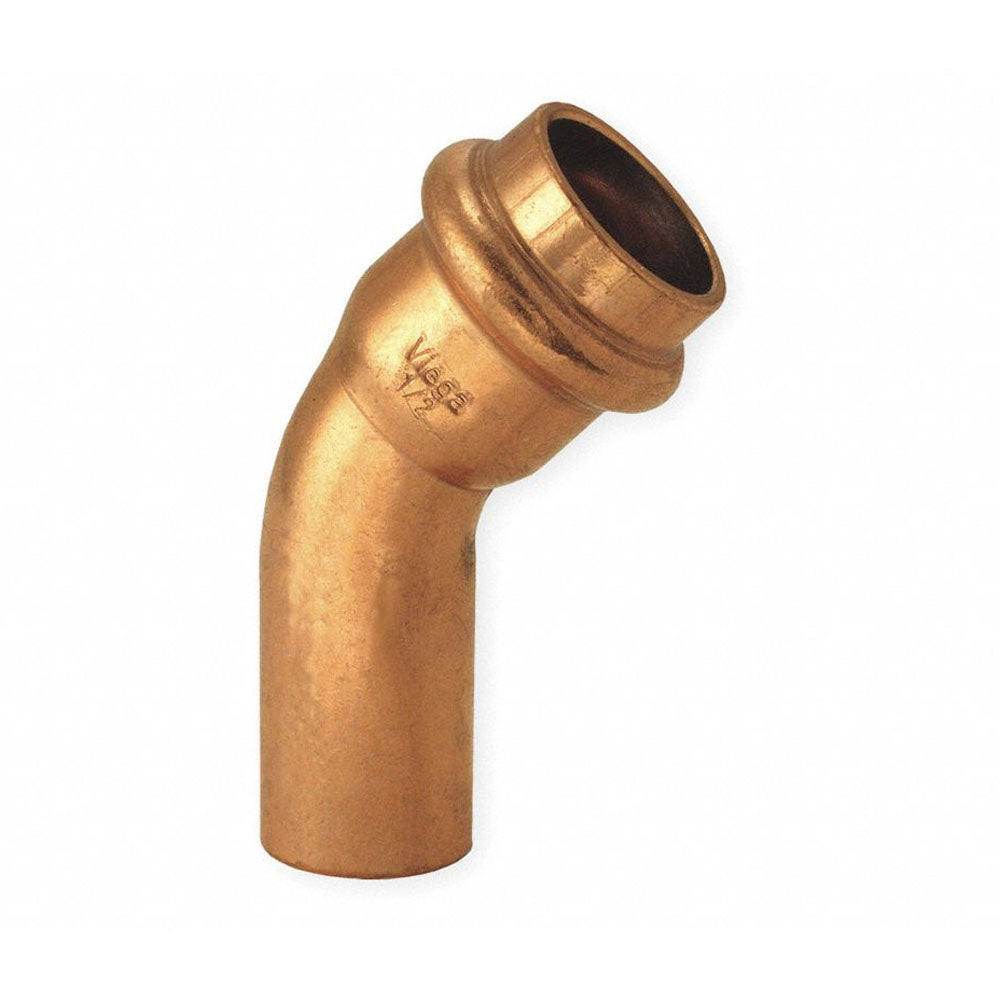

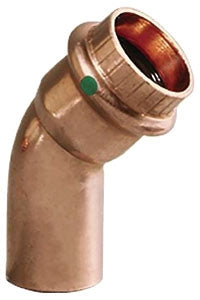

Viega 77637 ProPress 1/2 in. Copper 45-Degree Street Elbow

Product Description

The Viega ProPress 77637 is a copper 45-degree street elbow fitting designed for plumbing applications. This fitting is built for ProPress and male soldering connections. It is suitable for a range of applications including potable water, hydronic heating, and compressed air systems.

• Quality copper construction
• Pressure rating of 200 PSI
• Temperature resistant from zero to 250 degrees Fahrenheit

Product Highlights

The Viega ProPress fitting offers quick and efficient installation without the need for flame or heavy equipment.

Product Information

Standard Information

• Brand: Viega
• MPN: 77637

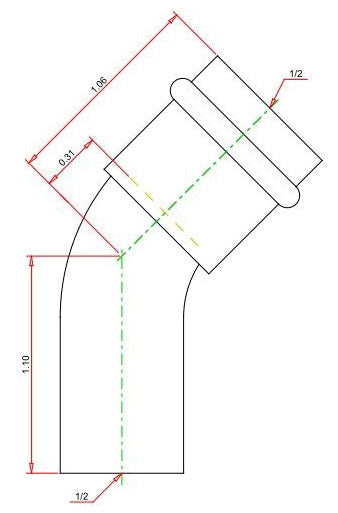

Technical Specifications

• Material: Copper
• End Connection: ProPress x Male Soldered
• Size A: 1/2 inch
• Size B: 1/2 inch
• Angle: 45 degrees
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 degrees Fahrenheit
• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Applicable Standards: ABS, CSA MSE-13, FM 1920, IAPMO PS117, NFPA 13/13D/13R
