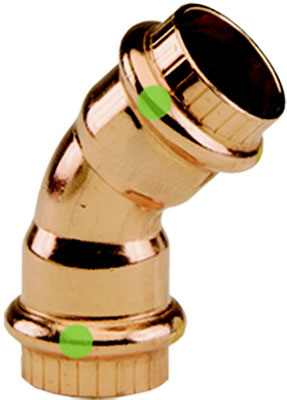

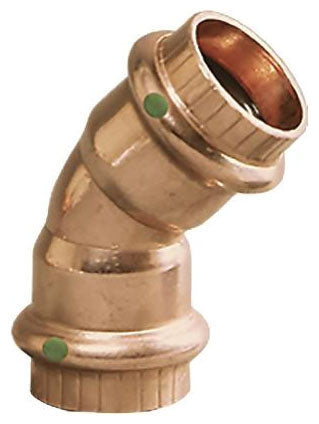

Viega 77612 Copper Elbow 45 Degree 3/4 x 3/4 ProPress

Product Description

The Viega 77612 is a copper elbow fitting designed for use in various plumbing applications. This fitting has a straight type and a 45-degree angle, making it suitable for tight spaces. It features ProPress connections on both ends for easy installation. The fitting is made from copper and can handle pressures up to 200 PSI, ensuring durability and reliability in demanding environments.

• Angle: 45 Degree
• Material: Copper
• Pressure Rating: 200 PSI

Product Highlights

The Viega 77612 elbow fitting is ideal for chilled water, hydronic heating, fire protection, low pressure steam, and many other applications. It includes a sealing element for enhanced performance and is compliant with multiple industry standards.

Product Information

Standard Information

• Brand: Viega
• MPN: 77612
• UPC: 3444956300
• Material: Copper

Technical Specifications

• Type: Elbow - 45 Degree
• End Connection: ProPress x ProPress
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Temperature Rating: 0 to 250 Deg F
• Application: Chilled Water, Hydronic Heating, Fire Protection, Low Pressure Steam, Compressed Air, Vacuum, Nitrogen, Argon, Oxygen (Non-Medical), Potable Water
• Applicable Standards: ABS, CSA, FM, IAPMO, ICC, NFPA, UL
