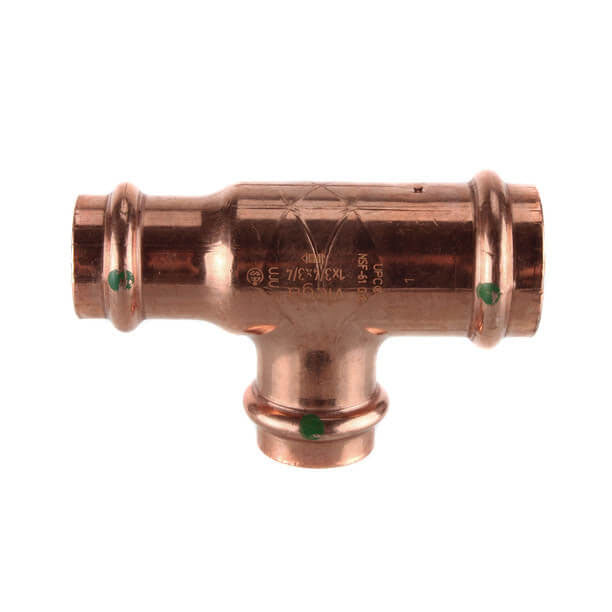

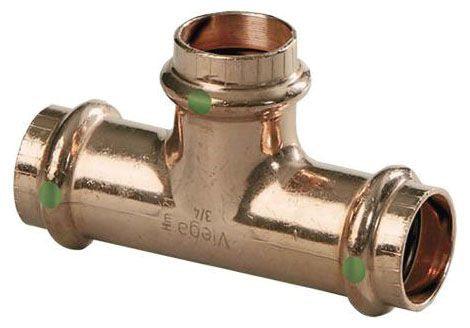

Viega 77422 ProPress 1 x 3/4 x 3/4 Copper Tee

Product Description

The Viega 77422 ProPress fitting is a reducing tee made of copper. It connects three pipes with a nominal size of one inch and three fourths inch at both ends. This product is ideal for various applications, including commercial and residential plumbing. The ProPress connection type allows for easy and quick installation without the need for soldering.

• Nominal Size: 1 inch x 3/4 inch x 3/4 inch
• Connection Type: ProPress x ProPress x ProPress
• Material: Copper

Product Highlights

The Viega ProPress system is known for its efficiency and reliability. It is designed for use with ASTM B88 tubing and offers seamless integration into existing pipe systems.

Product Information

Standard Information

• Brand: Viega
• MPN: 77422

Technical Specifications

• Material Specification: ASTM B88
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit
• Applications: Commercial, Residential, Chilled Water, Compressed Air, Potable Water, Hydronic Heating, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Standards Met: NSF 61/61G/372, ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, ICC-ESPMG-1037, UL 213, PHCC, NFPA, ASME B16.51
• Lead-Free
• Includes: EPDM Sealing Element
