Product Description

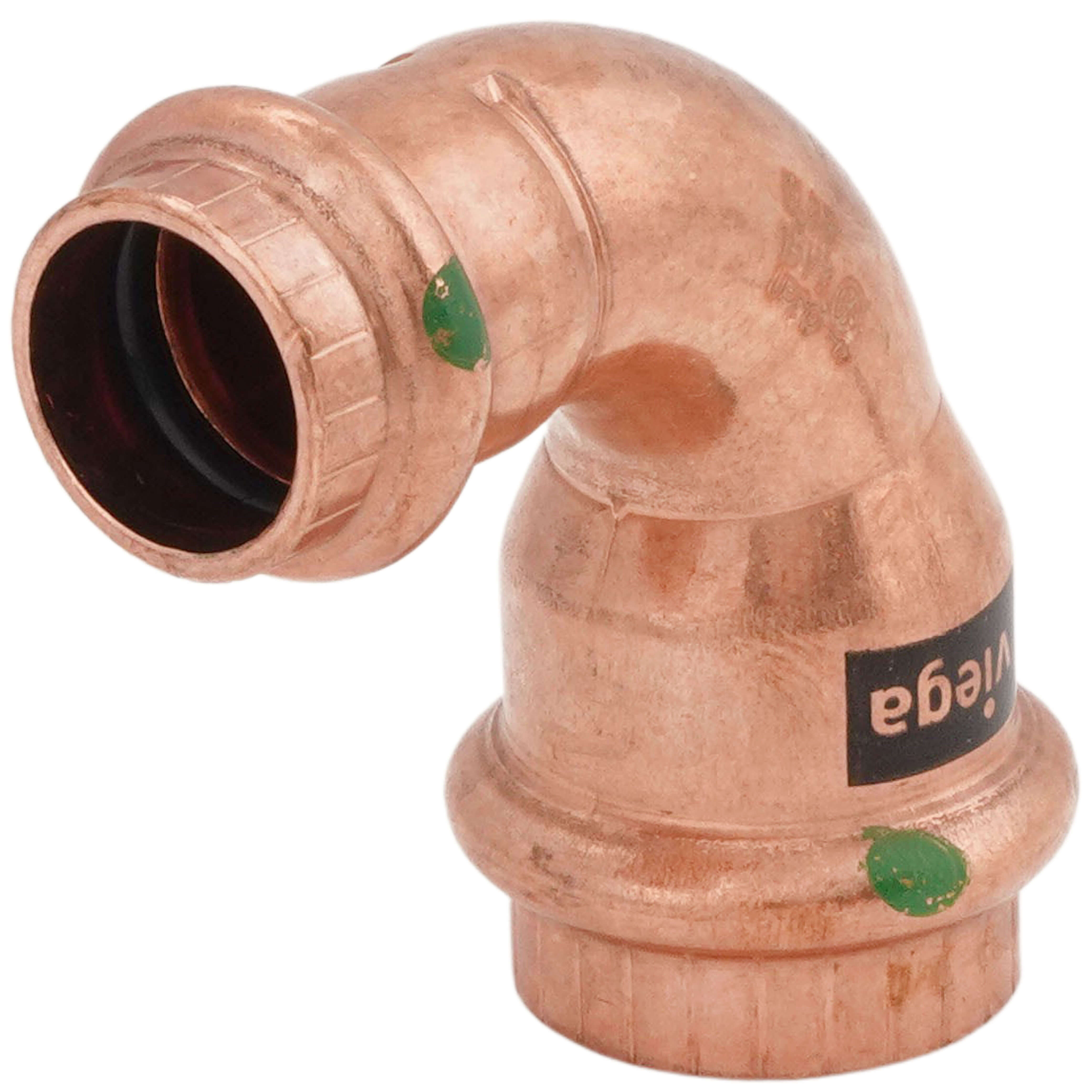

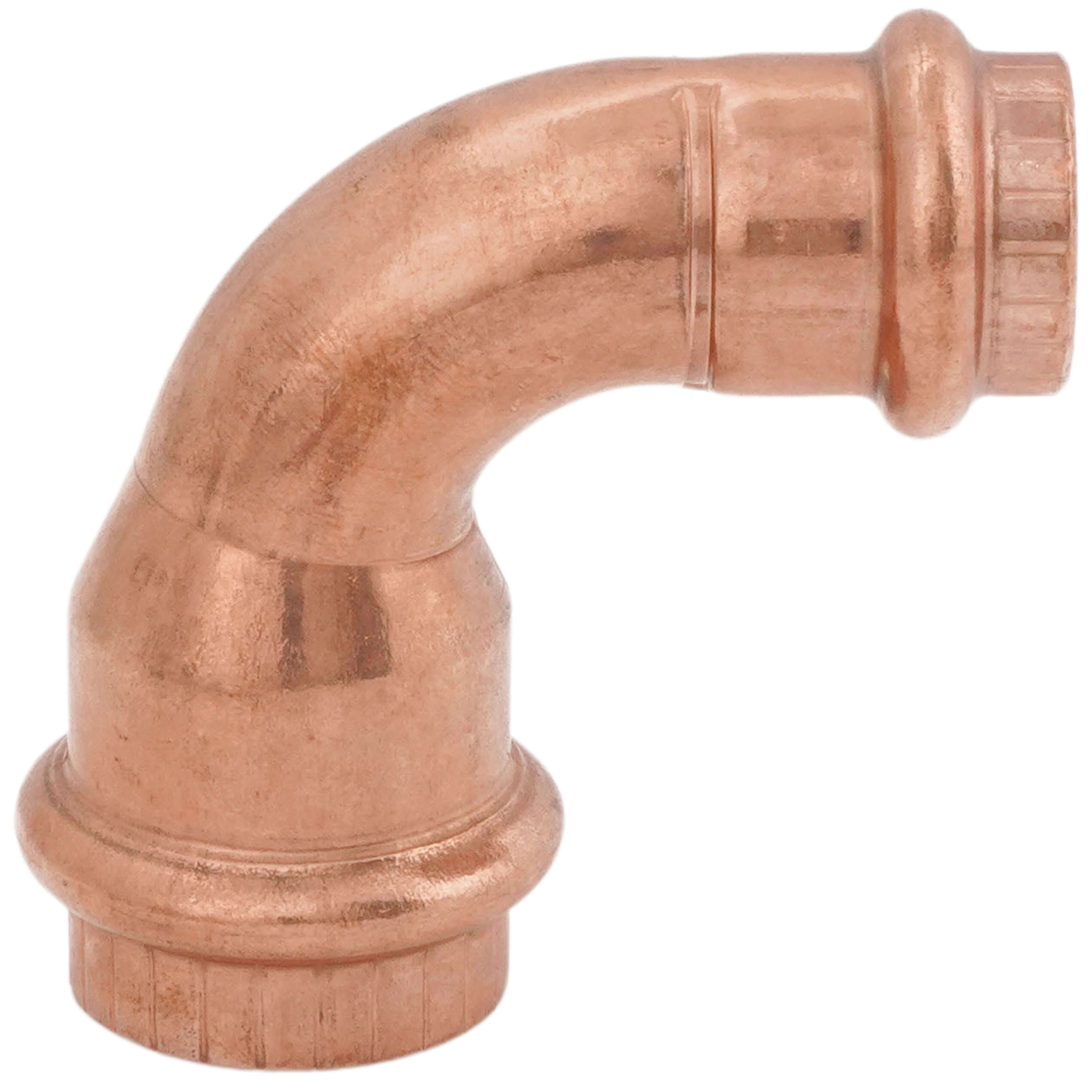

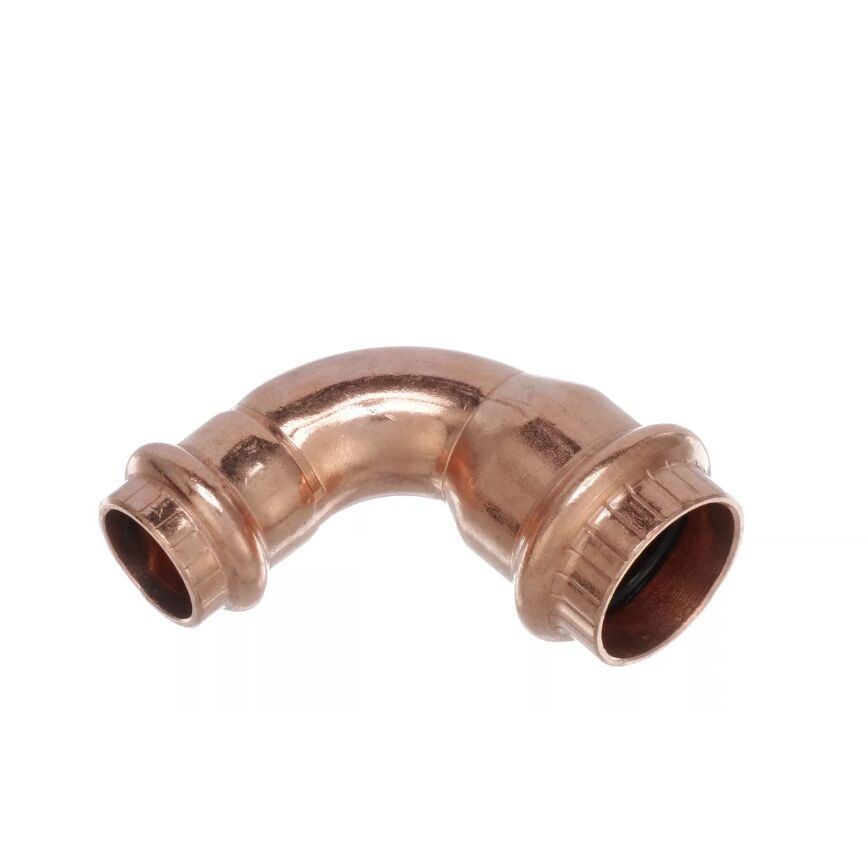

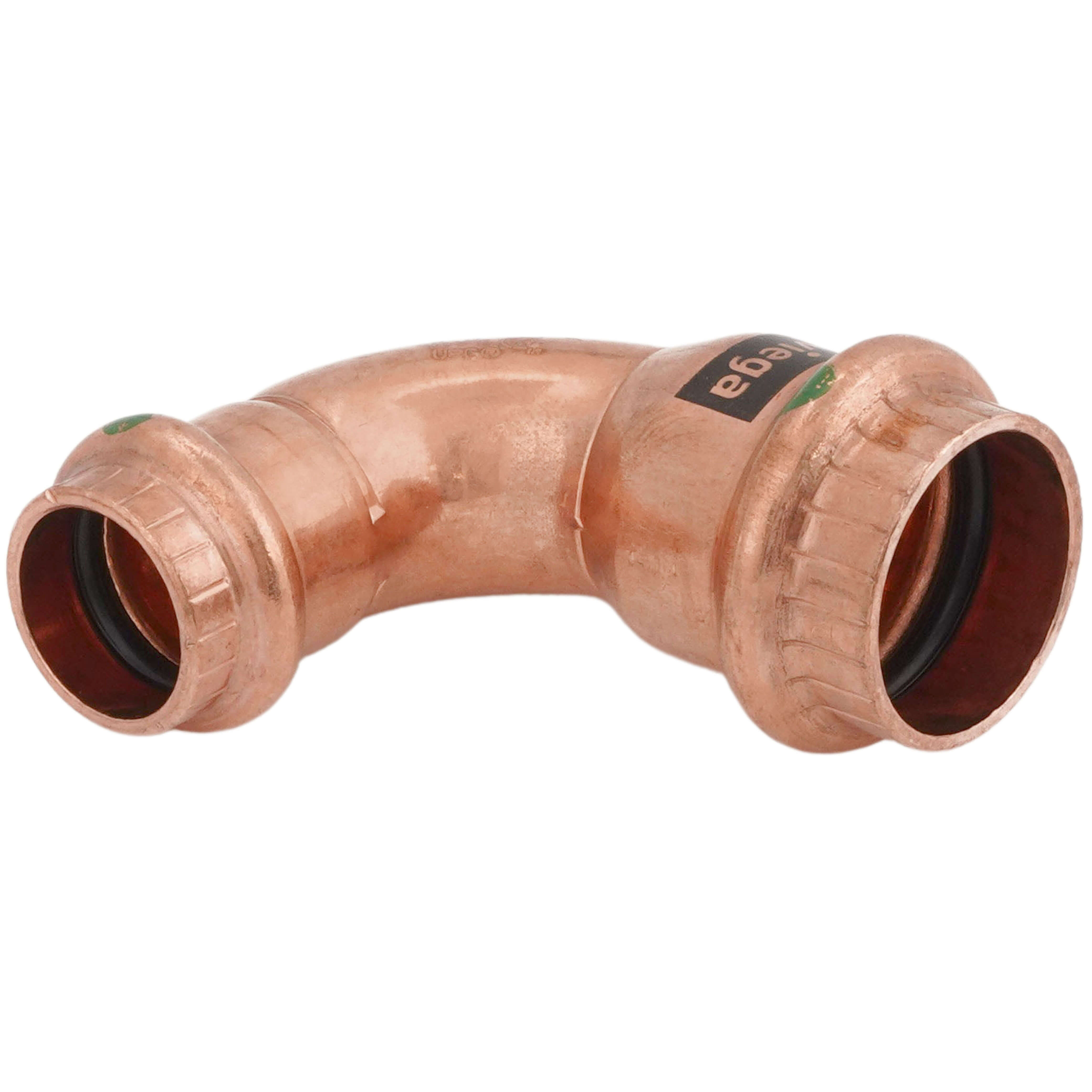

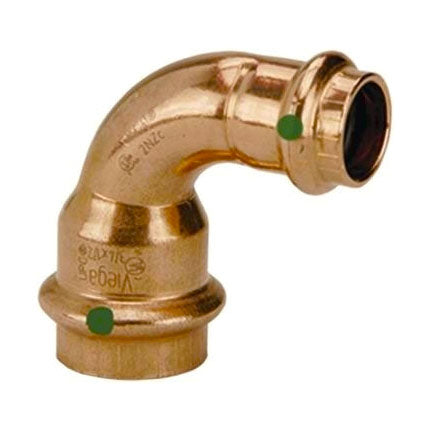

The VIEGA 77325 is a reducing elbow fitting with a 90-degree angle. Constructed from copper, this fitting is designed for ProPress connections. It is suitable for use in various applications including chilled water, compressed air, fire sprinkler, and potable water systems. It adheres to UL, CSA, ABS, and other industry standards.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and Easy to Use
Product Highlights
The Viega 77325 elbow fitting ensures secure connections and is suitable for diverse applications, offering a reliable solution for plumbing and piping systems.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 77325
-
Country of Origin: Germany
Technical Specifications
-
Angle: 90D
-
Applicable Standard: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372, PHCC, ULC/ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16 .51
-
Application: Chilled Water, Compressed Air, Fire Sprinkler, Hydronic Heating, Low Pressure Steam, Potable Water System, Non-Medical Gas, Vacuum
-
End Connection: ProPress x ProPress
-
Material: Copper
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 Deg F
-
Type: Plumbing
-
Size A: 3/4 Inch
-
Size B: 1/2 Inch
-
Brand Name: ProPress
-
CATALOG NUMBER: 77325
-
COMMODITY CODE DESCRIPTION LEVEL 3: Tube Fittings
-
Manufacturer Part Number Additional: 639011
-
Product Sub-Type: Elbow Fitting
-
Product Type: Pipes/Valves/Fittings
-
Series/Model: 2916.3
-
Fitting/Connector Type: 90 deg Elbow
-
Nominal: 3/4 x 1/2 in
-
End Style: Press
-
Domestic/Import: Import
-
Size: 3/4" x 1/2"
-
Connection_Type: Press
-
fitting type 1: press copper
-
fitting type 2: 90
-
fitting type 3: 90 reducing elbow
-
Size [Features]: 3/4" x 1/2"
-
Group: Pipe, Valves & Fittings
-
Vendor: Viega
-
Category: Fittings
-
Collection: PROPRESS
-
Product UPC: 691514773254
-
Model Number: 2916.3
-
Product Category: PVF
-
Product GTIN/EAN: 0691514773254
-
Type of Material: Copper
-
Manufacturer Name: VIEGA
-
Fitting Type: Elbow
-
Fitting Gender: ProPress x ProPress
-
Lead Free: Yes
-
Double Fitting Size: 3/4" x 1/2"
-
Size 1: 3/4
-
Size 2: 1/2
-
A: 0.91 in
-
A1: 0.94 in
-
L: 1.81 in
-
L1: 1.69 in
-
Available in sizes: 1/2" to 4"
-
Approved for more than: 250 different applications
-
ORMD: No
-
Length: 1.248 inches
-
Width: 2.311 inches
-
Product Dimension: 3/4'' x 1/2''
-
Connection Type: Pres x Pres
-
Height: 2.283 inches
-
Hazmat: No
-
Material Type: copper
-
Country of Origin: Made In Germany
-
Batteries Included: No
-
MSDS: No
-
Kit: No
-
Condition: New
-
Bend Angle: 90|deg
-
Selling Size: 3/4 x 1/2|in
-
Connection Size: 3/4|in
-
Specifications Met: IAPMO Listed, NSF 372, NSF 61
-
ManufacturerName: VIEGA LLC
-
ManufacturerSKU: 639011
-
Item [Specifications]: 90 reducing elbow
-
Application [Specifications]: Potable Water
-
Fitting Shape [Specifications]: Elbow
-
Stop and Shape [Specifications]: 90 Degrees Reducing Elbow
-
Connection Type [Specifications]: Press-Fit x Press-Fit
-
O-Ring Material [Specifications]: EPDM
-
Copper Tube Size [Specifications]: 3/4 in x 1/2 in
-
Fitting Material [Specifications]: Copper
-
End Connection Type [Specifications]: Press
-
Fitting Copper Tube Size [Specifications]: 1/2 in, 3/4 in
-
Maximum Operating Pressure [Specifications]: 300 psi
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side A Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side B Copper Tube Size [Specifications]: 1/2 in
-
Includes Pre-Applied Thread Sealant [Specifications]: Yes
-
Country of Origin (subject to change) [Specifications]: Germany
