Product Description

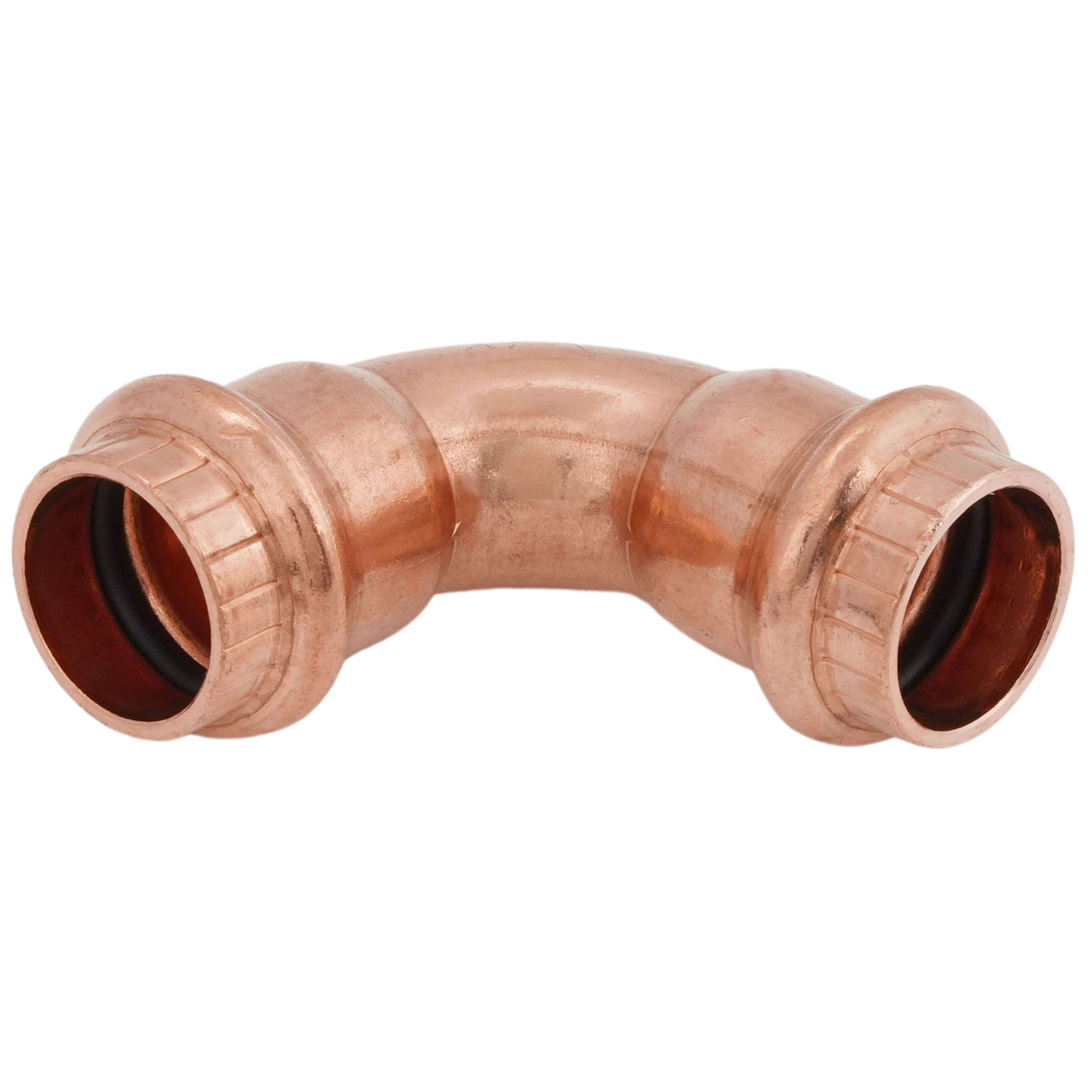

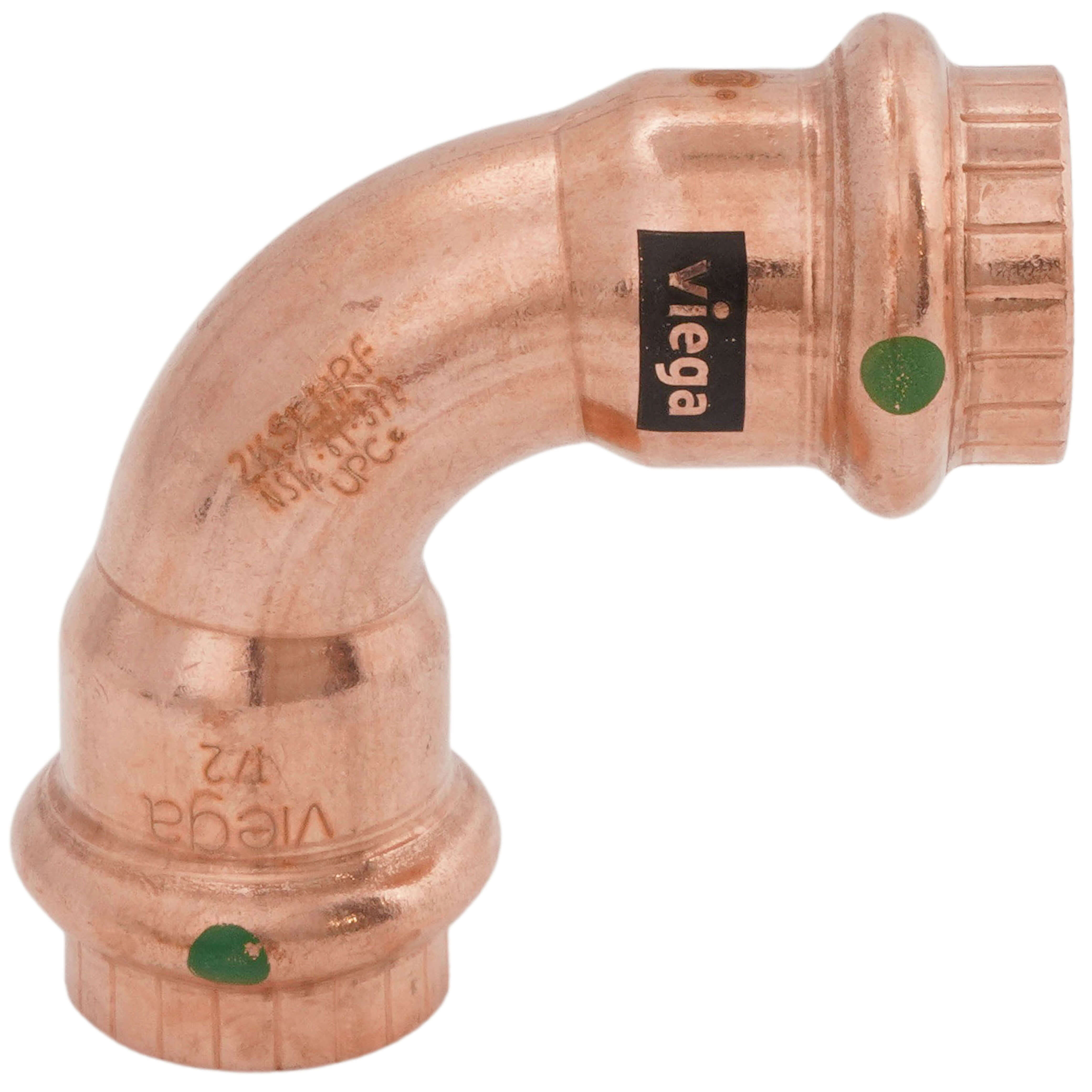

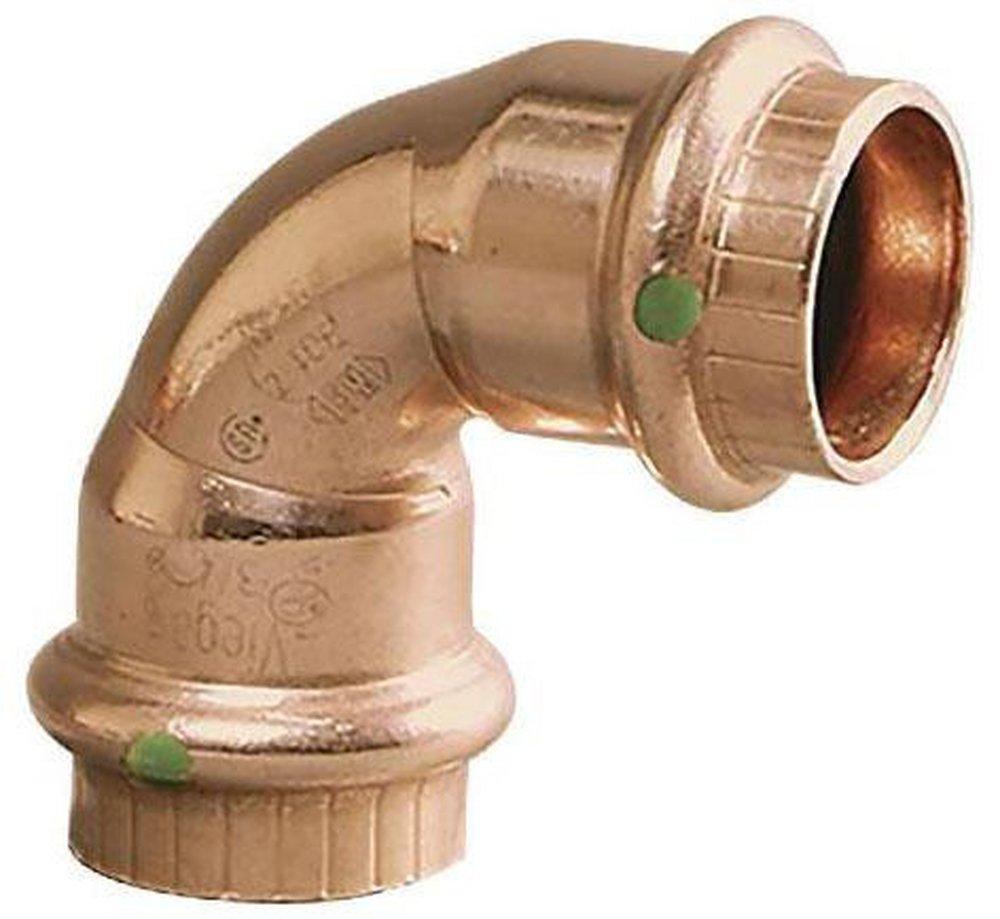

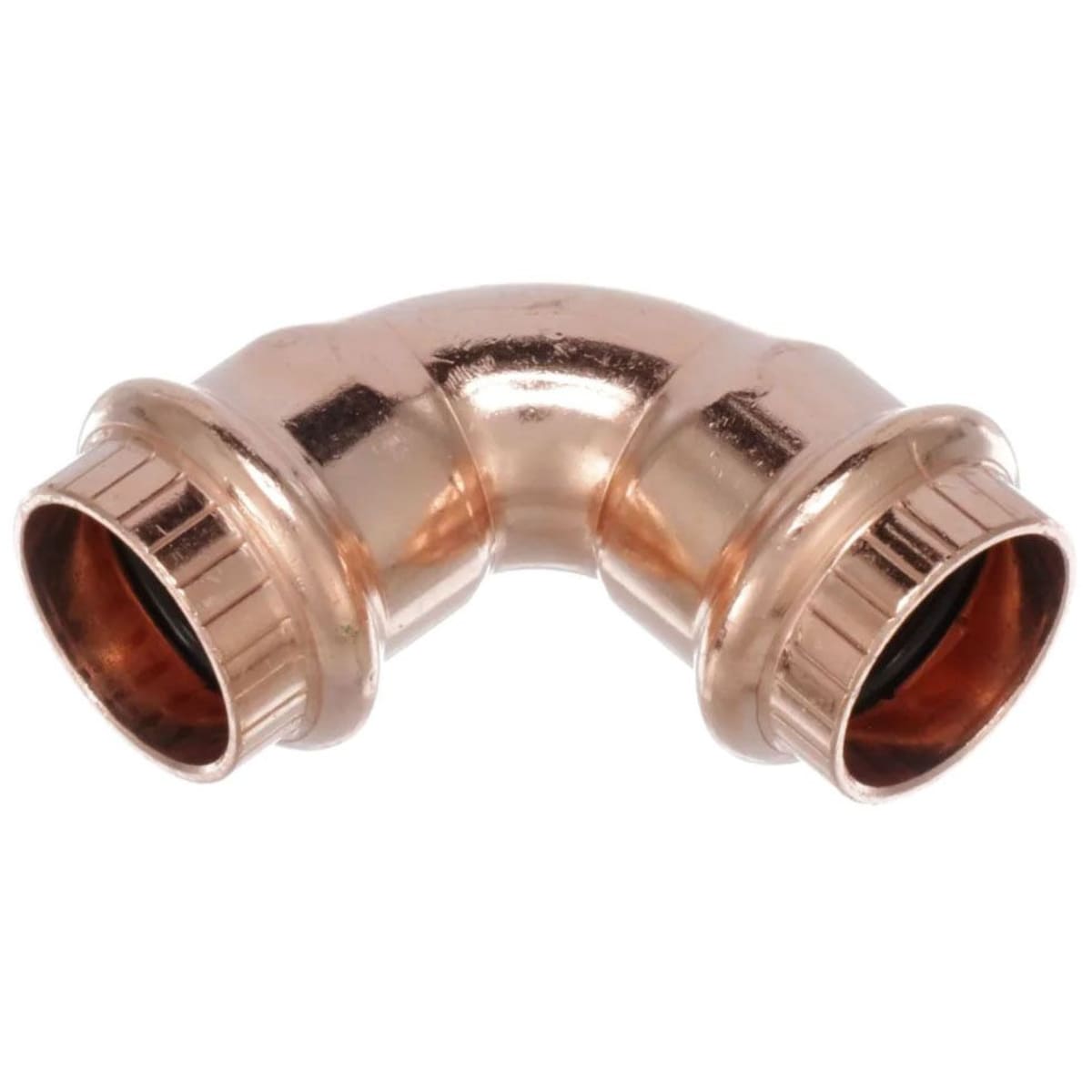

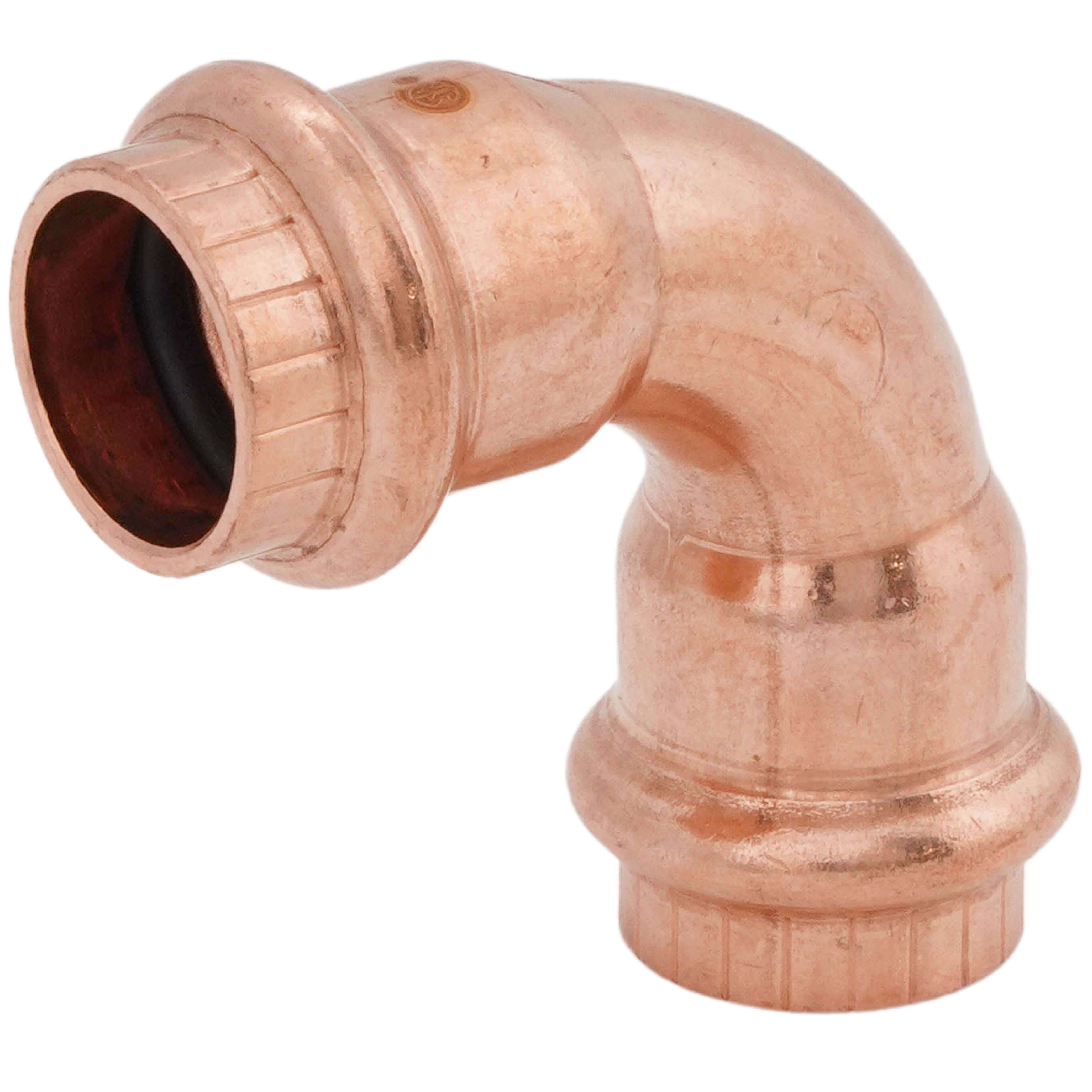

The Viega 77317 is a copper 90-degree elbow. This fitting is suitable for potable water, hydronic heating, chilled water, compressed air, and non-medical gas applications. It features a press end style for fast, easy, and reliable connections. The Viega ProPress connection provides a strong, durable seal.
- 90-degree angle
- 1/2 inch nominal size
- Press end style
Product Highlights
The Viega ProPress fitting ensures a consistent, strong, reliable, watertight seal. It minimizes system downtime by allowing connections on wet lines.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 77317
-
Country of Origin: USA
Technical Specifications
-
Material: Copper
-
Connector Type: Elbow
-
Number of Pieces: 1
-
Measurement System: Inch
-
Batteries Included?: No
-
Batteries Required?: No
-
Angle: 90 Degree
-
Size: 1/2"
-
Item [Specifications]: 90 Degree Elbow
-
Standards [Specifications]: ASTM B75, ASTM B88
-
Tube Size [Specifications]: 1/2 in x 1/2 in
-
Compliance [Specifications]: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Application [Specifications]: Potable Water
-
Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
-
Fitting Shape [Specifications]: Elbow
-
Max. Pressure [Specifications]: 200 psi
-
Stop and Shape [Specifications]: 90 Degrees Elbow
-
Connection Type [Specifications]: Press-Fit x Press-Fit
-
O-Ring Material [Specifications]: EPDM
-
Copper Tube Size [Specifications]: 1/2 in x 1/2 in
-
Fitting Material [Specifications]: Copper
-
End Connection Type [Specifications]: Press
-
Pipe Size (Fittings) [Specifications]: 1/2" x 1/2"
-
Tube Fitting Material [Specifications]: Copper
-
Specific Fitting Shape [Specifications]: 90 Degrees Elbow
-
Fitting Connection Type [Specifications]: Press x Press
-
Basic Pipe Fitting Shape [Specifications]: Elbow
-
Fitting Copper Tube Size [Specifications]: 1/2 in
-
Pipe Size - Pipe Fitting [Specifications]: 1/2 in x 1/2 in
-
Maximum Operating Pressure [Specifications]: 200 psi
-
Basic Pipe Fitting Material [Specifications]: Metal
-
Specific Pipe Fitting Shape [Specifications]: 90 Degrees Elbow
-
Pipe Fitting Connection Type [Specifications]: Press x Press
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side A Copper Tube Size [Specifications]: 1/2 in
-
Fitting Side B Copper Tube Size [Specifications]: 1/2 in
-
Country of Origin (subject to change) [Specifications]: United States
-
Maximum Pressure: 200 PSI
-
Type: Pipe Elbow
-
Nominal Size A: 1/2 inch
-
Nominal Size B: 1/2 inch
-
Connection: Press x Press
-
End Style: Press
-
Nominal Size: 1/2 in
-
Applicable Standard: ABS, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
-
Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler (175 PSI Maximum), Low Pressure Steam (15 PSI Maximum), Vacuum (29.2 Inch HG Maximum at 68 Deg F)
-
Brand Name: ProPress
-
Pressure Rating: 200 PSI
-
Size A: 1/2 Inch
-
Size B: 1/2 Inch
-
Temperature Rating: 0 to 250 Deg F
-
Series/Model: 2916
-
Size A REF: 0.5 IN
-
Size B REF: 0.5 IN
-
Bend Angle: 90 Deg
-
Item Type: Press Elbows
-
Series: ProPress
-
Series-Brand: ProPress
-
Application [Features]: Plumbing
-
Connection Type [Features]: ProPress
-
Group: Pipe, Valves & Fittings
-
Vendor: Viega
-
Category: Fittings
-
Collection: PROPRESS
-
Model Number: 2916
-
Product Type: Elbow
-
Product Category: PVF
-
Type of Material: Copper
-
Manufacturer Name: VIEGA
-
Domestic/Import: Import
-
Fitting/Connector Type: 90 deg Elbow
-
Diameter: 1/2 in
-
A (in): 0.75
-
L (in): 1.50
-
Wt: .116
-
MPN: 77317
-
Manufacturer Part Number: 77317
-
Manufacturer: Viega
-
Size 1: 1/2
-
Components: EPDM sealing elements
-
Connection Type: Press
-
Material Type: Copper,Lead
-
CATALOG NUMBER: 77317
-
COMMODITY CODE DESCRIPTION LEVEL 3: Tube Fittings
-
Manufacturer Part Number Additional: 234001
