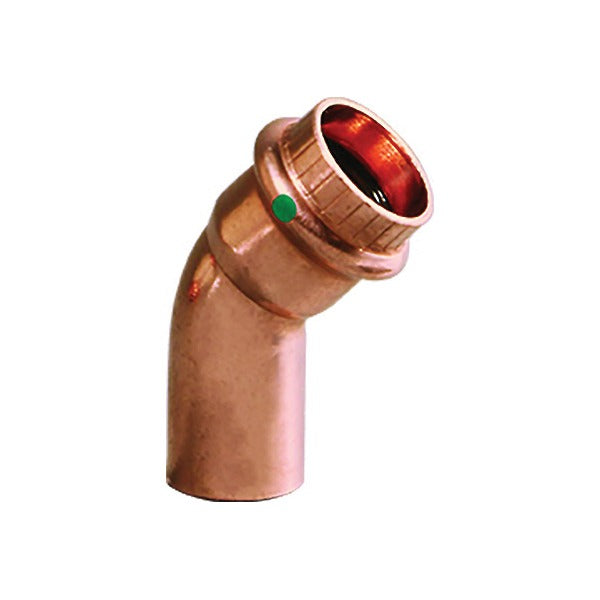

Viega 77063 45 Degree Street Elbow 1-1/4 Inch Copper

Product Description

The VIEGA 77063 is a 45-degree street elbow designed for use in press-connect copper piping systems. It features a fitting end on one side and a press end on the other, allowing it to connect directly into an existing fitting socket without the need for an additional coupling. This configuration reduces the number of joints in a run and speeds up assembly. The 77063 is sized at 1-1/4 inches nominal and is manufactured from copper, making it suitable for potable water, hydronic heating, and related plumbing applications. Licensed plumbers and pipefitters are the typical installers.

This street elbow is intended for residential and light commercial plumbing and mechanical systems where a 45-degree directional change is required in a copper press piping system. The fitting x press end style integrates cleanly into ProPress system installations, eliminating open-flame soldering at the connection point. It is appropriate for use in tight spaces or retrofit work where torch use is restricted or impractical.

Key Features

• 45-degree angle change for directional routing in copper press systems
• Street configuration combines a fitting end and a press end to reduce joint count
• 1-1/4 inch nominal size suits main distribution lines in residential and light commercial work
• Copper construction provides corrosion resistance and long service life in water systems
• Press-connect end eliminates open-flame soldering at one connection point

Compatibility

Designed as an OEM-style replacement and standard component for 1-1/4 inch nominal copper press piping systems.

Installation Notes

Installation of press-connect fittings requires an approved press tool with the correct jaw size for the pipe diameter — verify jaw compatibility before beginning work. Shut off and depressurize the water supply and drain the line before making any connections. Press connections must be made on clean, round pipe ends free of burrs, debris, and moisture to ensure a proper seal. All work should comply with applicable local plumbing codes and ASTM standards for copper pressure fittings.

Technical Specifications

• Nominal Size: 1-1/4 inches
• Angle: 45 degrees
• End Style: Fitting x Press
• Material: Copper
• Configuration: Street Elbow
• Origin: Import

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77063
