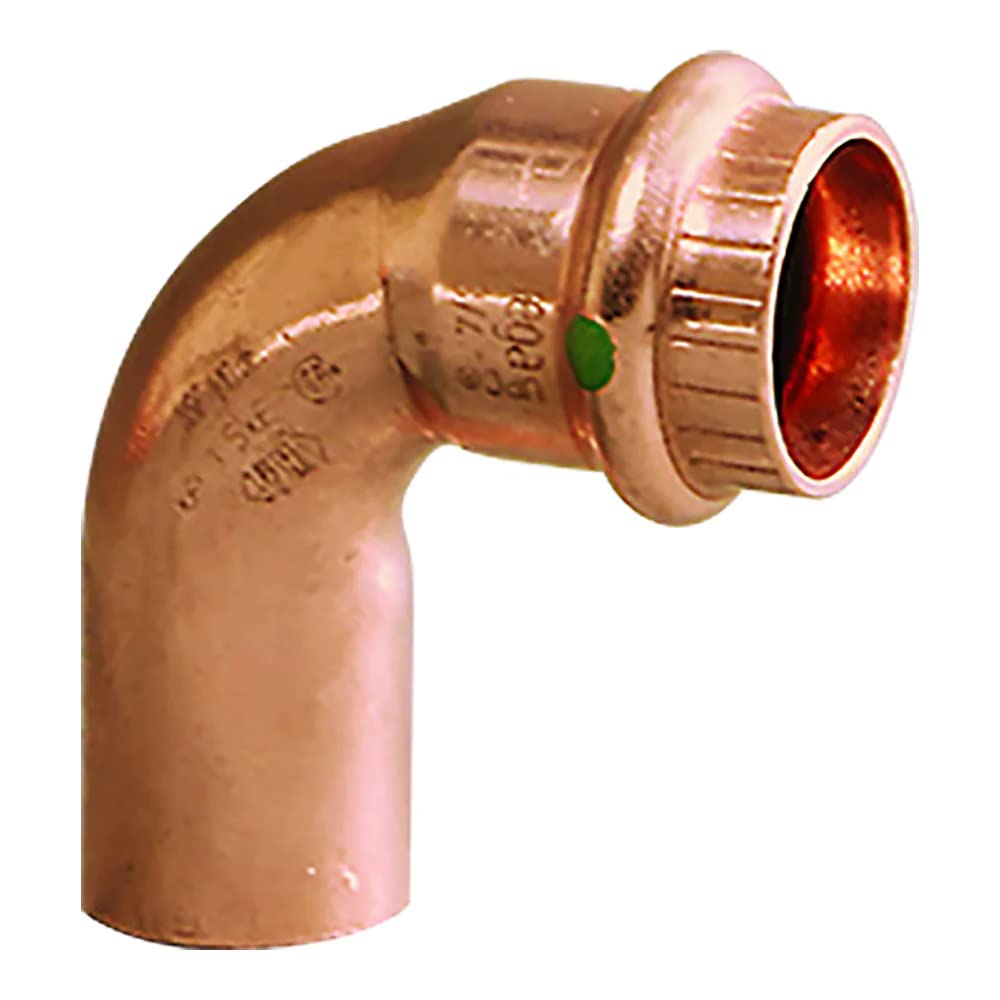

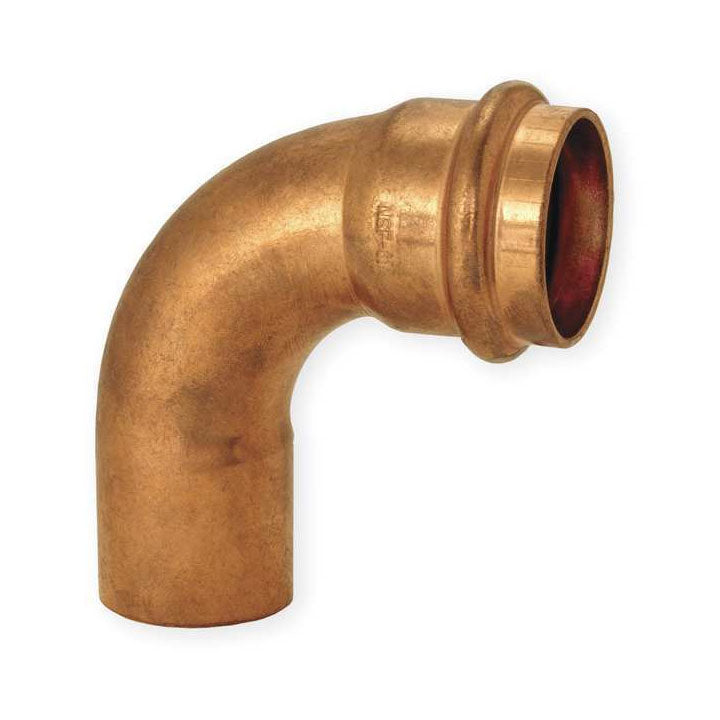

Viega 77062 Elbow 90 Degree 1-1/4 inch FTG x Press

Product Description

The Viega 77062 Elbow 90 Degree 1-1/4 inch FTG x Press is a reliable fitting for various plumbing applications. Made by Viega, known for its high-quality products, this copper elbow fitting ensures a secure connection for your piping systems.

• 90 degree angle
• 1-1/4 inch connection
• FTG x Press

  Product Highlights

  This fitting is ideal for potable water, hydronic heating with glycol, chilled water, compressed air, non-medical gas, fire sprinkler, low-pressure steam, and vacuum applications. It also features a patented Viega Smart Connect technology for quick and secure installation.

  Product Information

  Standard Information

  • Manufacturer: Viega
  • MPN: 77062

    Technical Specifications

    • Size: 1-1/4 inch
    • Material: Copper
    • Angle: 90 Degree
    • Connection Type: FTG x Press
    • Pressure Rating: 200 PSI
    • Temperature Range: 0 to 250 Degrees F
    • Applicable Standard: ABS, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
    • Application: Potable Water, Hydronic Heating with Glycol, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
