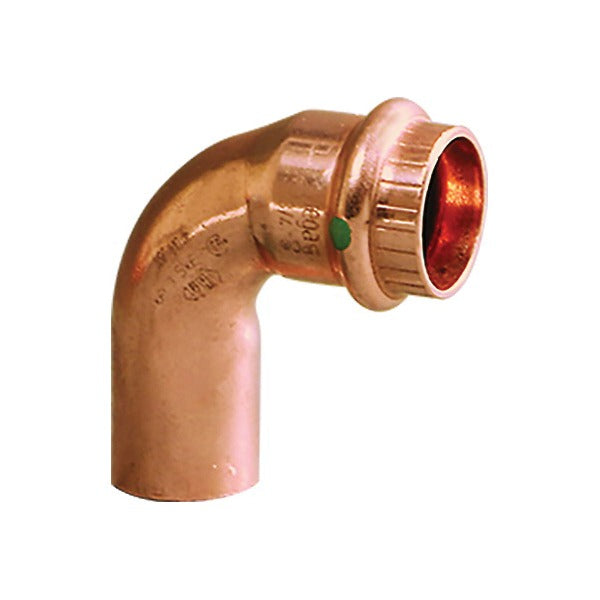

Viega 77062 90 Degree Street Elbow 1-1/4 Inch Copper

Product Description

The VIEGA 77062 is a 90-degree street elbow designed for use in copper press piping systems. It features a fitting-end inlet and a press-end outlet, allowing it to connect directly into an existing socket without the need for a solder joint or additional coupling. Sized at 1-1/4 inches nominal, this elbow is installed using a compatible press tool and jaw set, creating a permanent, leak-tested connection. Licensed plumbers and pipefitters working on commercial and residential hydronic, potable water, or mechanical piping systems will find this fitting appropriate for tight-radius directional changes in copper piping runs.

The 77062 is suited for retrofit and new-construction applications where soldering is restricted, impractical, or not permitted. The street configuration eliminates one fitting in back-to-back elbow installations, reducing overall system length and the number of press connections required. It is used in hydronic heating, cooling distribution, domestic water, and similar copper piping systems requiring a 90-degree change of direction at 1-1/4 inches nominal pipe size.

Key Features

• 90-degree street elbow geometry reduces fitting count in back-to-back configurations
• 1-1/4 inch nominal size fits standard copper tube at that diameter
• Fitting x press end style connects directly into an existing socket on one end
• Copper construction compatible with potable water, hydronic, and mechanical systems
• Press connection eliminates open-flame soldering at the press end

Compatibility

Designed as an OEM-style press fitting for use in 1-1/4 inch nominal copper press piping systems with a compatible press tool and approved jaw or ring set.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a press tool and jaw set rated for copper press fittings at 1-1/4 inches nominal. Shut off and depressurize the system and drain standing water before making connections. Press connections must be completed fully before the system is pressurized; an unpressed fitting will leak and cannot be identified visually once installed without inspection markings. Follow local plumbing codes and the manufacturer press-tool guidelines for inspection and verification of completed joints.

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Style: Fitting x Press
• Angle: 90 degrees
• Configuration: Street Elbow
• Material: Copper

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77062
