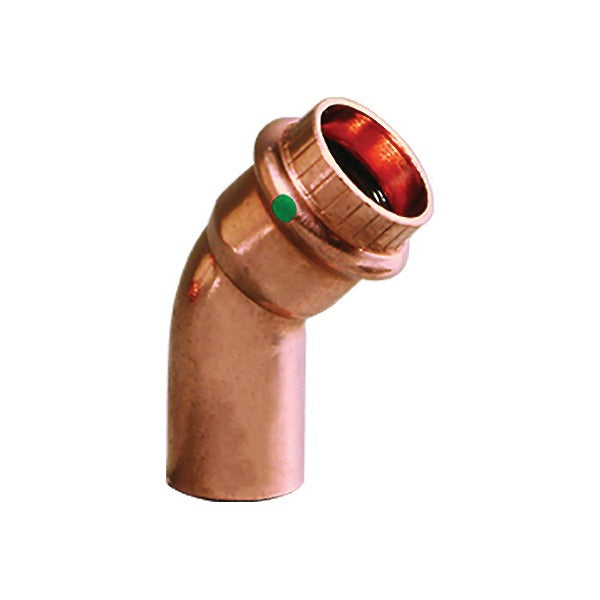

Viega 77058 45 Degree Street Elbow 1 Inch Press Copper

Product Description

The VIEGA 77058 is a 1-inch nominal 45-degree street elbow designed for use with the Viega ProPress press-fit system. It features a fitting-by-press end style configuration, allowing one end to accept a press tool connection while the other end inserts directly into a standard copper fitting socket. Constructed from copper, this elbow is used to change pipe direction in tight spaces without requiring solder or open flame. Licensed plumbers and pipefitters install this component when working on copper water supply and distribution piping where press connections are preferred for speed and code compliance.

This street elbow is suited for residential and light commercial plumbing applications, including domestic hot and cold water supply lines. The press-fit end style makes it compatible with ProPress tooling, eliminating torch work in occupied buildings, areas with combustible materials nearby, or retrofits where soldering is impractical. It fits into standard copper tube and fitting assemblies sized at 1 inch nominal.

Key Features

• 45-degree street elbow geometry for direction changes in confined spaces
• Fitting x press end style for integration into ProPress press-fit systems
• 1-inch nominal size for standard residential and commercial water lines
• Copper construction for corrosion resistance and long service life in water systems
• No-solder installation eliminates open flame and reduces labor time

Compatibility

Designed as an OEM-style component for use with the Viega ProPress press-fit system on 1-inch nominal copper water supply and distribution piping.

Installation Notes

Installation requires a Viega-approved press tool and the correct jaw set for 1-inch ProPress fittings. Shut off and depressurize the water supply before beginning work. Follow applicable plumbing codes, including IPC and local amendments, for press-fit copper fittings. Do not use press-fit fittings on lines that have not been verified as compatible with the ProPress connection system.

Technical Specifications

• Nominal Size: 1 inch
• Fitting Angle: 45 degrees
• End Style: Fitting x Press
• Material: Copper
• Type: Street Elbow

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77058
