Viega 77057 ProPress 90 Degree Street Elbow Press Fitting Copper

Product Description

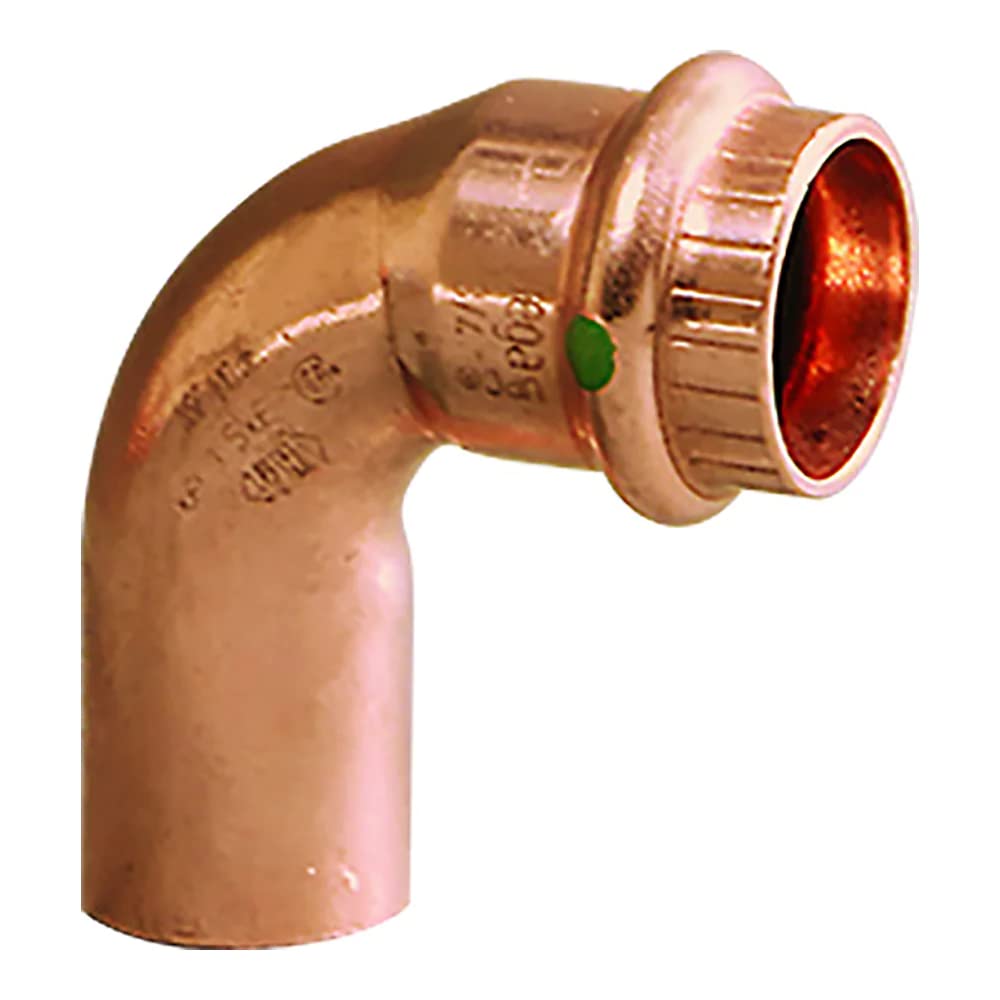

The Viega ProPress 77057 Copper 90 Degree Street Elbow is a reliable and efficient fitting for plumbing projects. This fitting is crafted from copper, ensuring durability and strength. It connects via press fit, providing a secure and leak-resistant seal.

• Connects 1 inch FTG x Press
• Crafted from durable copper
• 90-degree angle for versatile installations

Product Highlights

This Viega fitting is part of the ProPress line, designed for use with ASTM B88 tubing. It is suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler systems, low-pressure steam, and vacuum applications. The fitting includes EPDM sealing elements for reliable performance.

Product Information

Standard Information

• Brand: Viega
• MPN: 77057

Technical Specifications

• Material: Copper
• Angle: 90 Degree
• Size: 1 Inch
• End Connection: ProPress x Male Soldered
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees F
• Applicable Standards: ABS, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low-Pressure Steam, Vacuum
• Includes: EPDM Sealing Element
