Product Description

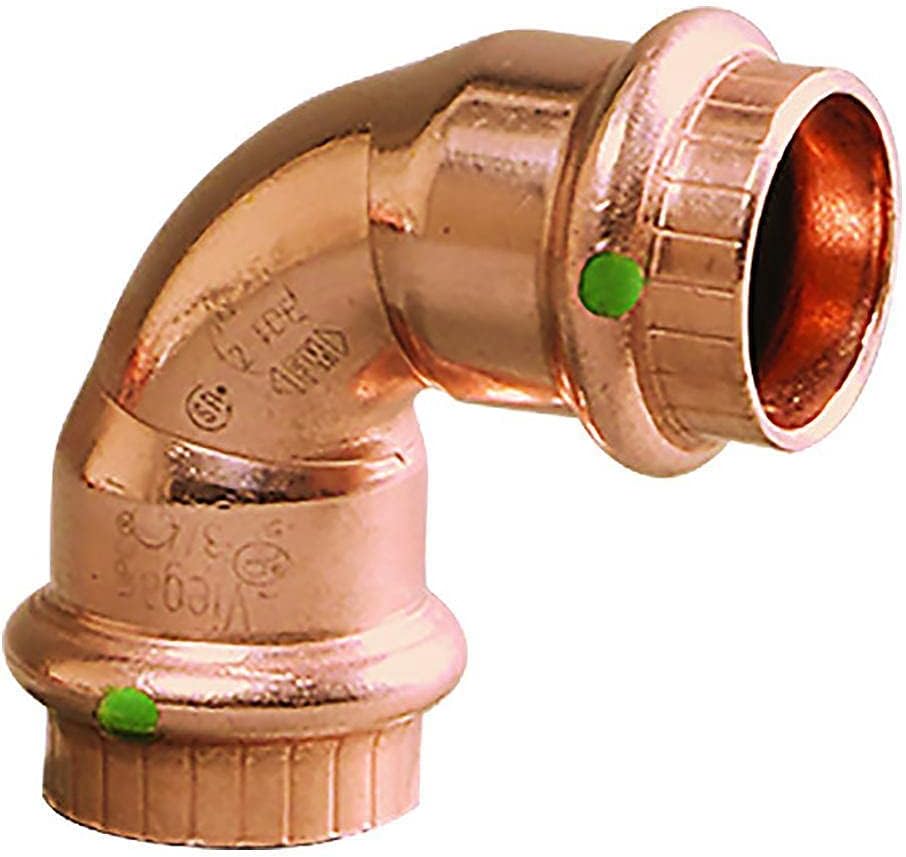

The Viega 77042 ProPress Copper 90 Degree Elbow is a high-quality fitting designed for various plumbing applications. The elbow allows for quick and secure connections with a 90-degree turn, suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gas, and fire sprinkler systems. Made from durable copper, this fitting is resistant to corrosion and high pressure.
- Compatible with ASTM B88 tubing
- Pressure rating up to 200 PSI
- Temperature rating from 0 to 250 degrees Fahrenheit
Product Highlights
This ProPress elbow features a patented Smart Connect technology that ensures a secure connection in less than 7 seconds. The copper material offers longevity and reliability, making it ideal for both residential and commercial use. The press-fit connections eliminate the need for soldering or welding, resulting in faster and safer installations.
Product Information
Standard Information

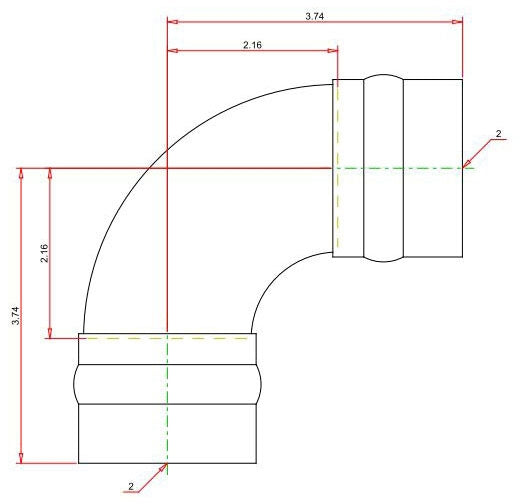

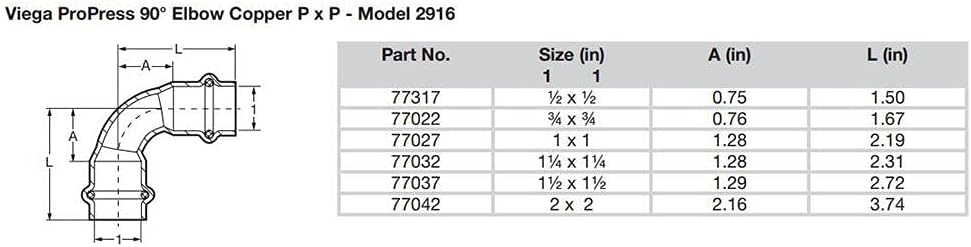

Technical Specifications
-
Connection Type: Press x Press
-
Material: Copper
-
Size: 2 Inch x 2 Inch
-
Bend Angle: 90 Degrees
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 Degrees Fahrenheit
-
Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler
-
Applicable Standard: ABS, ASME B16.51, CSA MSE 13, FM Class 1920, Florida Building Code, ICC Certified, ICC LC 1002
