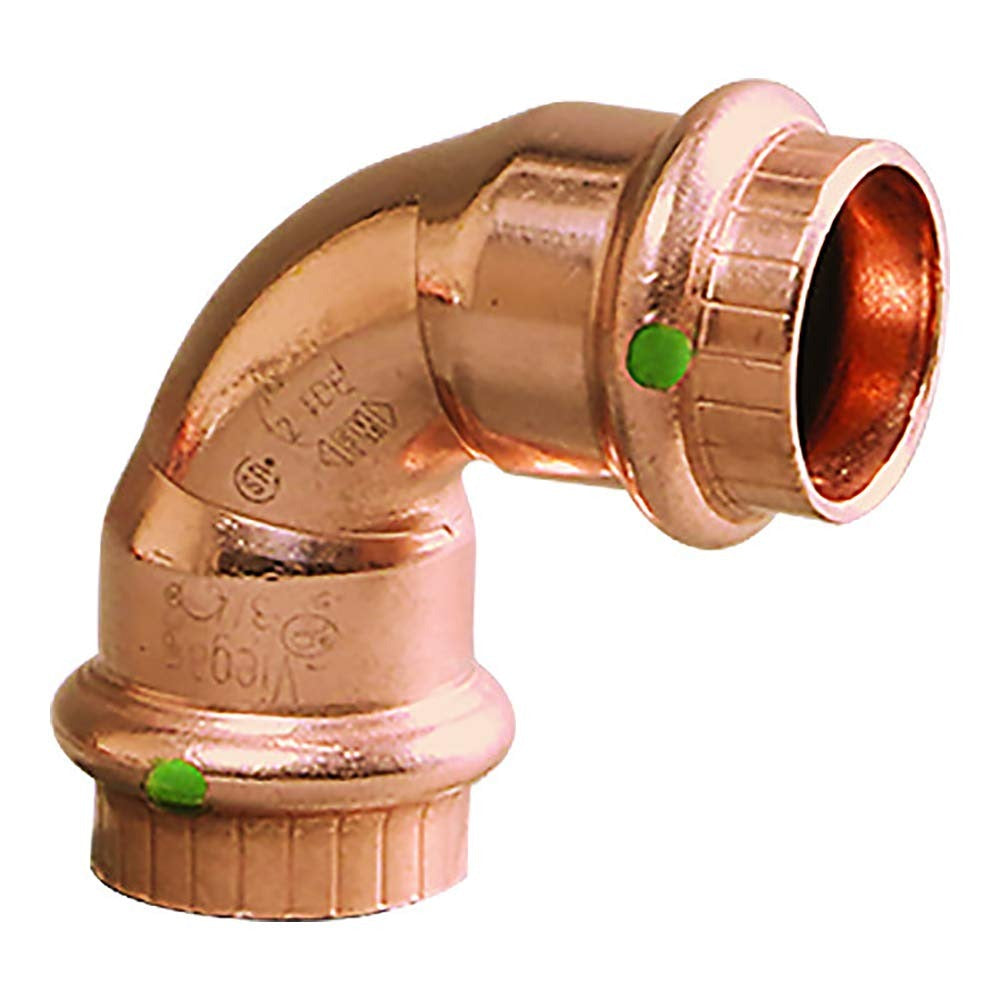

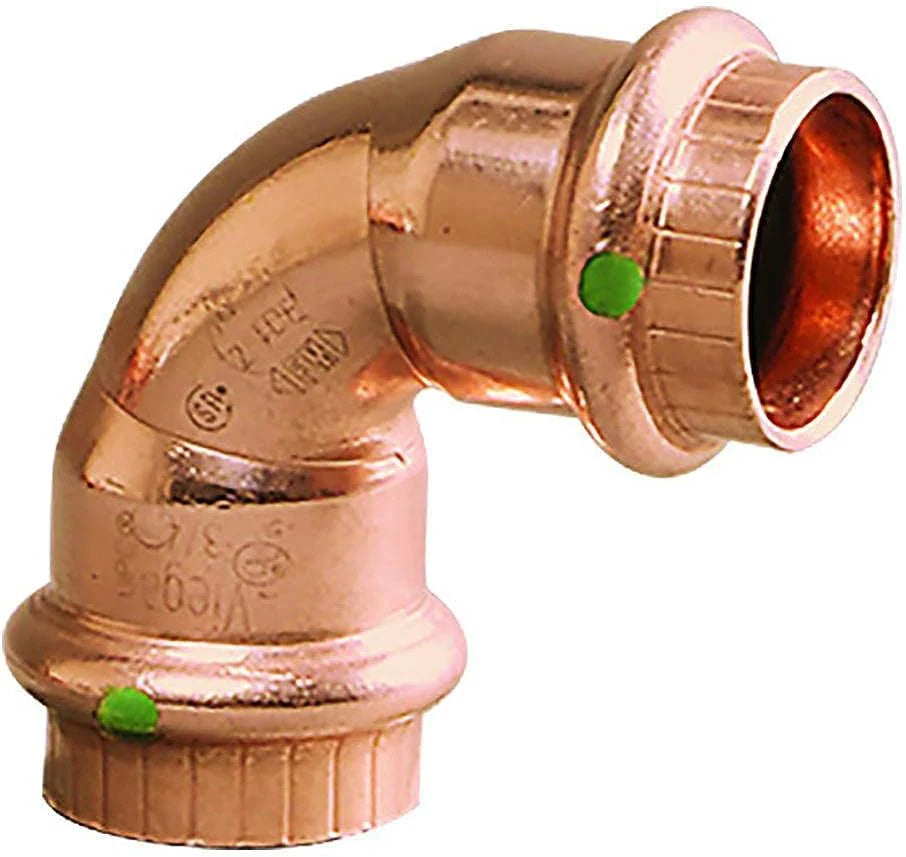

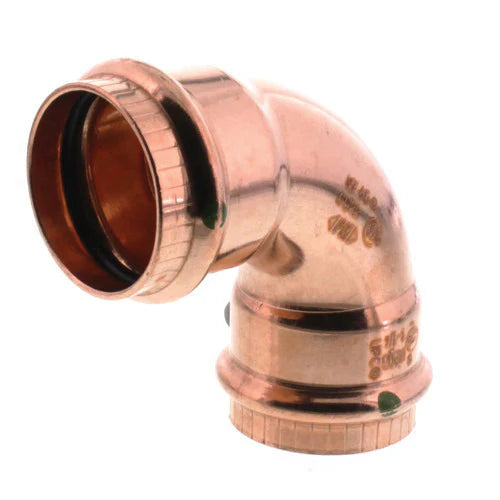

Viega 77042 Propress 90 Degree Short Radius Elbow 2 in

Product Description

The VIEGA 77042 is a ProPress 90-degree short radius elbow fitting designed for flameless, press-type connections on standard copper tubing. Rated to 200 psi with a temperature range of 0 to 250 degrees F, it joins 2-inch copper pipe using a press-tool connection on both ends, eliminating the need for flux, solder, or open flame. The fitting includes the Viega Smart Connect feature, which allows technicians to identify unpressed connections before pressure testing. Licensed plumbers and pipefitters install this fitting using compatible copper press tools, sold separately.

This fitting is suited for residential and commercial plumbing applications where flameless joining is required or preferred. Common use cases include potable water distribution, hydronic systems, and fire sprinkler installations where NFPA 13, 13D, and 13R compliance is required. Its short radius profile makes it practical in tight spaces and congested mechanical rooms. The 2-inch press-by-press configuration works with standard Type K, L, or M copper tubing.

Key Features

• Flameless press connection eliminates flux, solder, and gas - reduces fire risk and speeds installation
• Viega Smart Connect feature identifies unpressed fittings before system pressurization
• Rated to 200 psi maximum working pressure
• Temperature range of 0 to 250 degrees F
• Compatible with Type K, L, and M copper tubing
• NSF/ANSI 61 and NSF/ANSI 372 certified for drinking water system use

Compatibility

Compatible with standard Type K, L, and M copper tubing at 2-inch nominal size. Approved for fire sprinkler applications per NFPA 13, 13D, and 13R. Requires a compatible copper press tool, sold separately. Meets IAPMO Uniform Plumbing Code and ICC International Plumbing Code requirements.

Installation Notes

Installation must be performed by a licensed plumber using a compatible copper press tool rated for this fitting size. Shut off the water supply and depressurize the system before beginning work. Ensure tubing ends are cut square, deburred, and fully inserted to the stop before pressing. Verify all connections with the Smart Connect feature prior to system pressurization.
