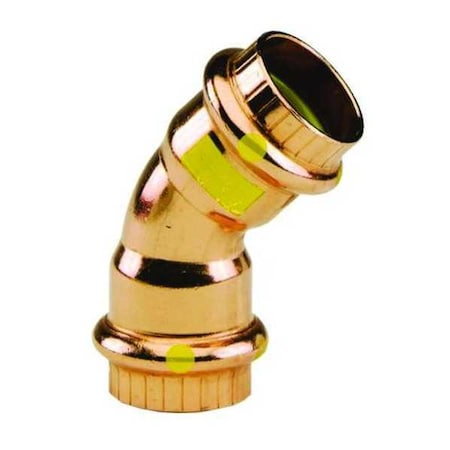

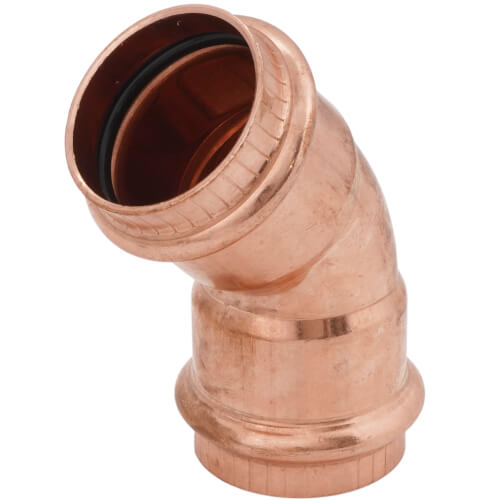

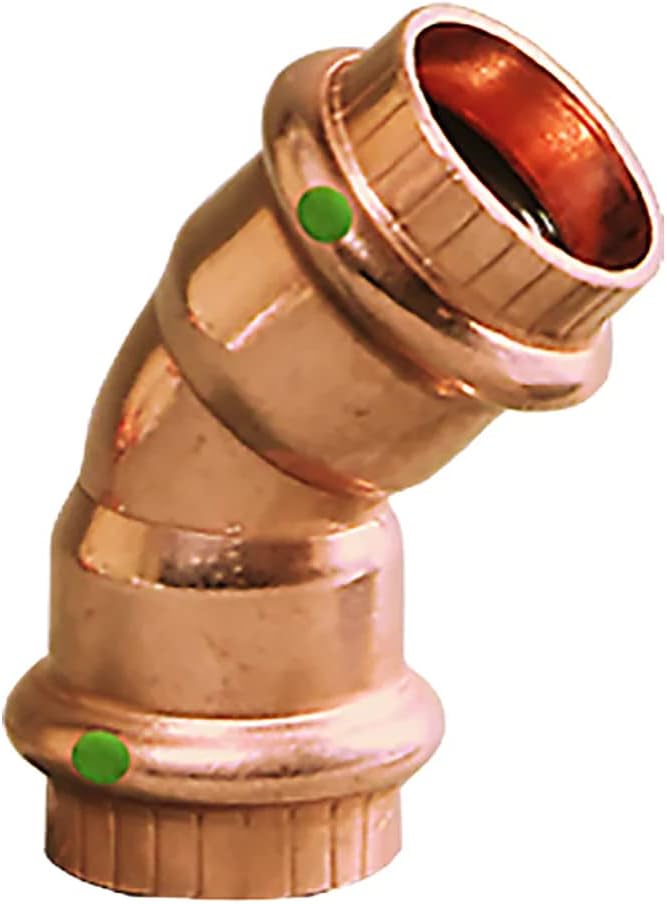

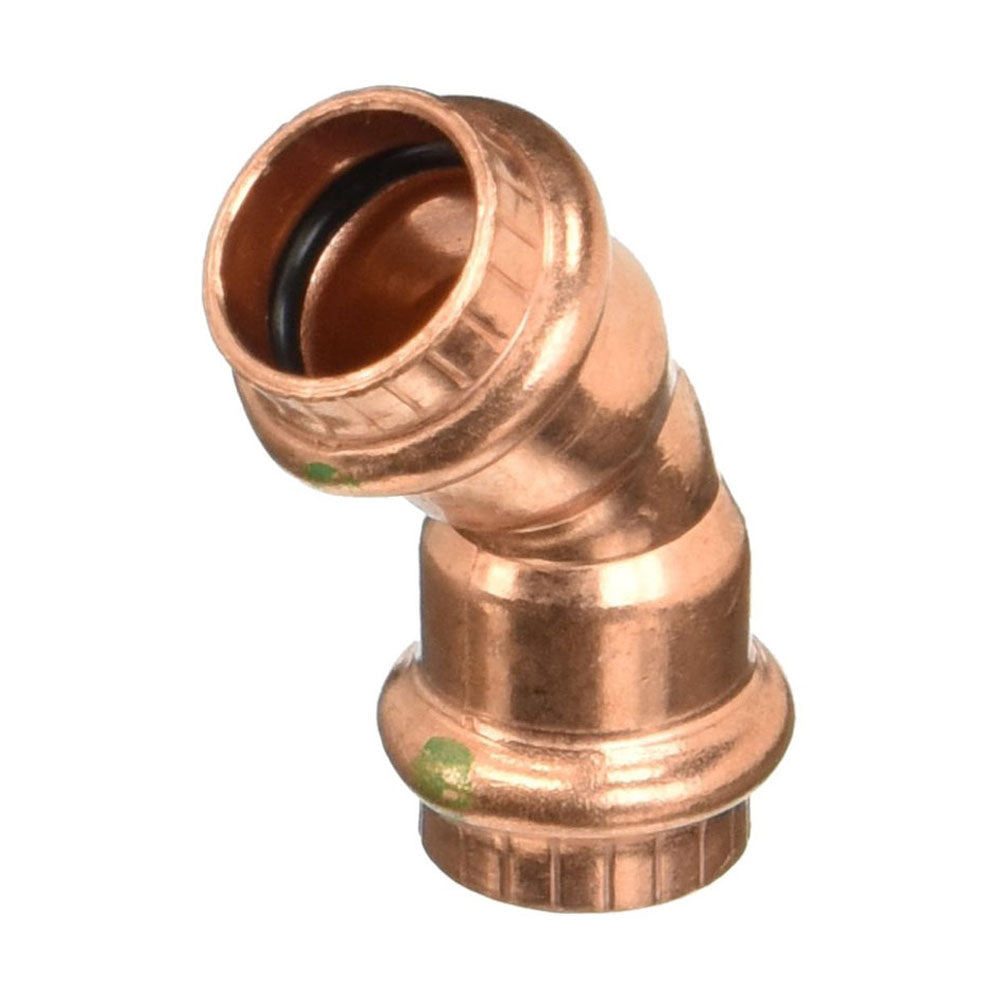

Viega 77038 ProPress 45 Degree Elbow 1-1/2 inch x 1-1/2 inch Press x Press Copper Elbow

Product Description

The Viega 77038 ProPress 45 Degree Elbow is a versatile fitting designed for use in various plumbing applications, including potable water systems and heating systems. This copper elbow ensures secure and fast connections without the need for soldering or heavy equipment.

• 45-degree bend for directional changes
• Press x Press connection for easy installation
• Suitable for multiple applications including fire protection systems

Product Highlights

Perfect for quick and reliable connections, the Viega 77038 ProPress Elbow incorporates Smart Connect technology that helps in identifying unpressed connections during pressure testing. This fitting is crafted to meet various industry standards and is suitable for wet or dry installations.

Product Information

Standard Information

• Brand: Viega
• MPN: 77038
• Material: Copper
• Type: 45-degree Elbow
• Connection Type: Press x Press
• Bend Angle: 45 degrees
• Measurement System: Inch

Technical Specifications

• Nominal Size A: 1-1/2 inch
• Nominal Size B: 1-1/2 inch
• Max. Operating Pressure: 200 PSI
• Max. Operating Temperature: 250 degrees F
• Applicable Standards: ASTM B75, ASTM B88
• Certification: ABS, ASME B16.51, CSA MSE 13, FM Class 1920, ICC Certified
• Weight: 0.57 pounds
• Dimensions: 4.5 x 2.2 x 2.2 inches
• Applications: Potable water, heating systems, gas systems, fire protection systems, solar systems
