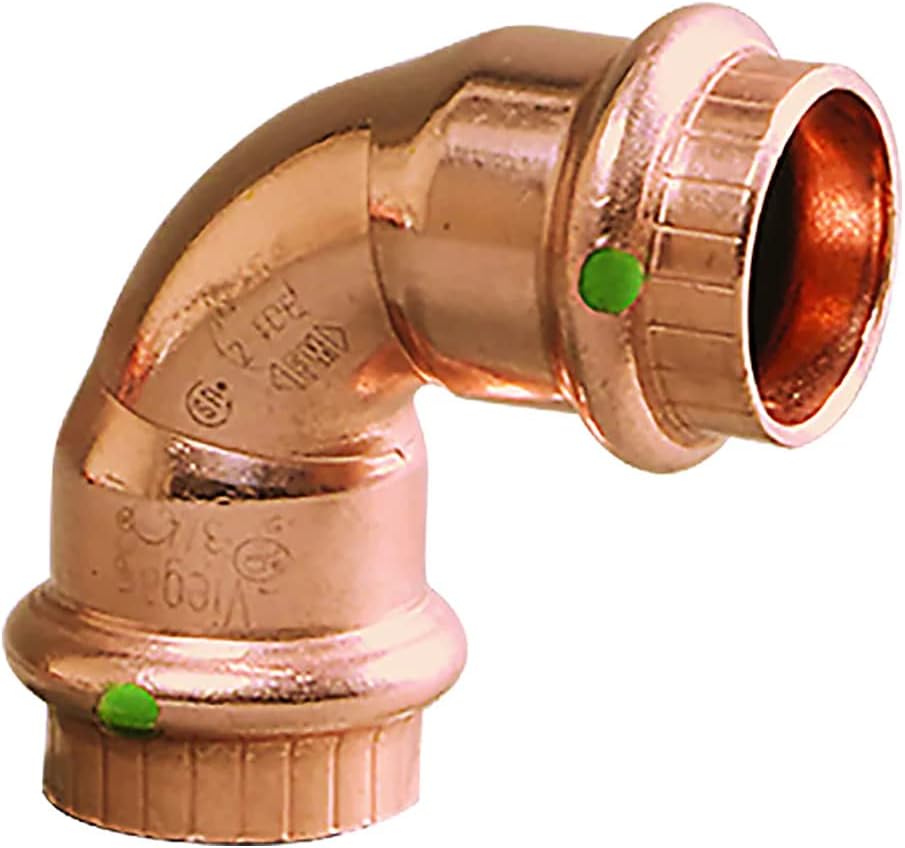

Viega 77037 ProPress Copper 90 Elbow 1-1/2 inch x 1-1/2 inch

Product Description

The Viega ProPress 77037 is a copper 90-degree elbow fitting designed for use in plumbing systems. The fitting is compatible with 1-1/2 inch copper tubing and has a ProPress x ProPress connection type. This elbow provides an effective way to change directions in piping systems.

• Compatible with copper tubing, sizes 1-1/2 inches.
• Maximum pressure rating of two hundred PSI.
• Temperature rating from zero to two hundred fifty degrees Fahrenheit.

Product Highlights

This fitting allows for quick and reliable connections using the Viega ProPress system, which is known for its ease of installation and no need for soldering or flame.

Product Information

Standard Information

• Brand: Viega
• MPN: 77037

Technical Specifications

• Type: Short Radius Elbow
• Angle: 90 Degrees
• Material: Copper
• Connection Type: Press x Press
• Application: Potable Water, Hydronic Heating, Chilled Water, Fire Systems
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees F
• Standards Met: ASTM B75, ASTM B88
