Product Description

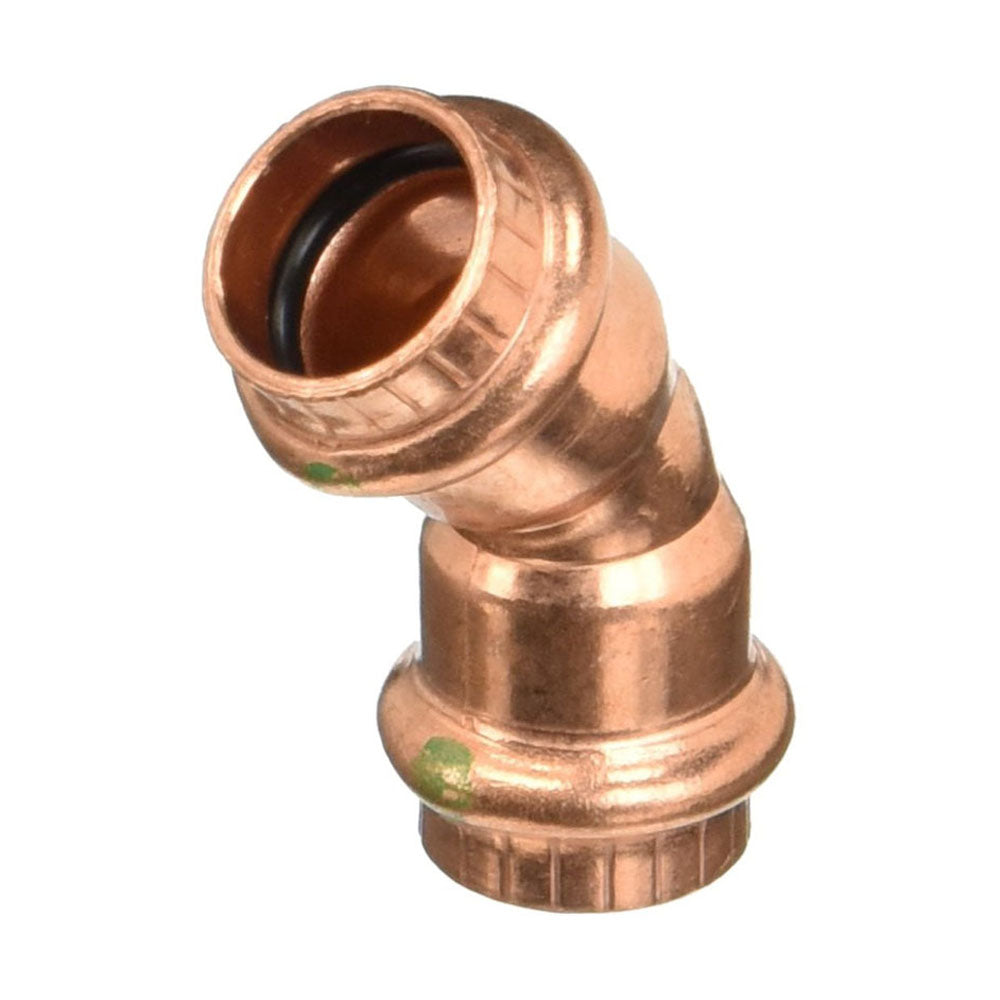

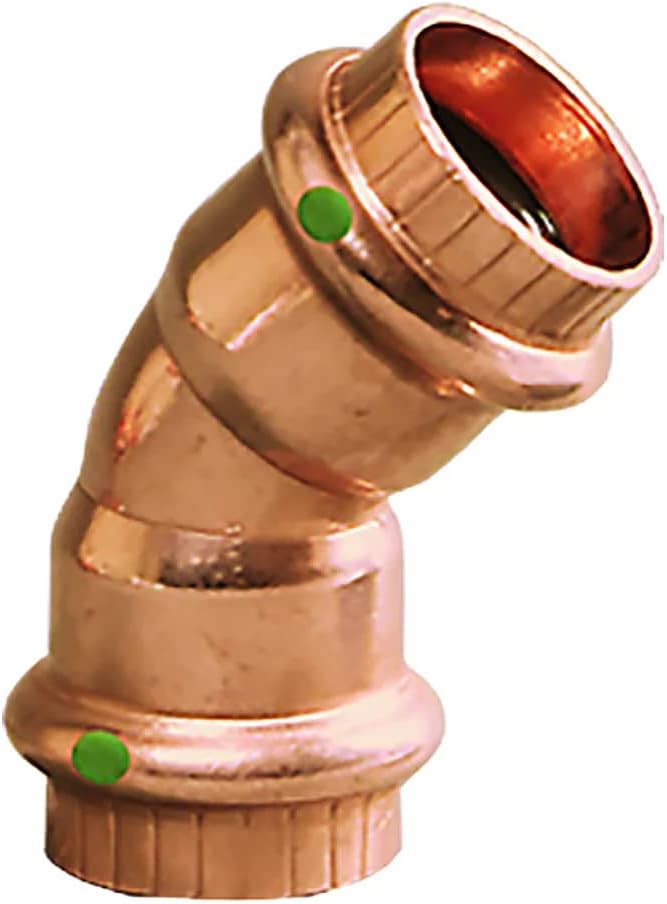

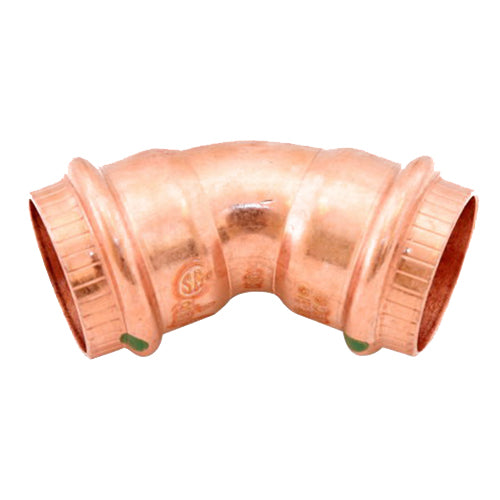

The Viega 77033 ProPress 45 Degree Elbow is designed for use with copper tubing. This fitting delivers a reliable connection for various applications. It features the patented Viega Smart Connect technology.
- EPDM sealing elements
- Works with ASTM B88 tubing
- 200 PSI pressure rating
Product Highlights
Use this elbow fitting for hot and cold water systems, heating systems, and more. It ensures swift connections in less than 7 seconds without the need for heavy equipment.
Product Information
Standard Information
Technical Specifications
-
Size: 1-1/4 inch x 1-1/4 inch
-
Material: Copper
-
Connection Type: ProPress
-
Angle: 45 Degree
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 Degrees F
-
Standards: ABS, ASME B16.51, CSA MSE 13, FM Class 1920, ICC Certified, ICC LC 1002
-
Applications: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
