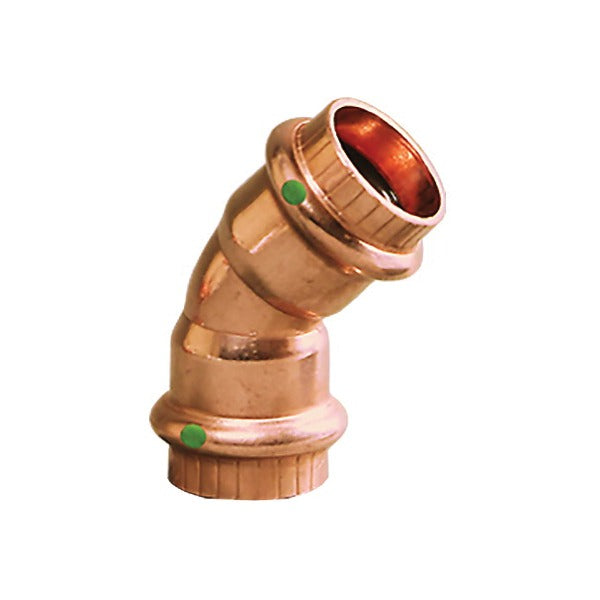

Viega 77033 45 Degree Press Elbow 1-1/4 Inch Copper

Product Description

The VIEGA 77033 is a 45-degree press-end pipe elbow designed for copper plumbing and hydronic systems. It accepts 1-1/4 inch nominal copper pipe and connects using a press-style end, eliminating the need for open flame or solder. Licensed plumbers and pipefitters use this fitting in new construction and retrofit applications where soldering is restricted or where faster assembly is required. The press connection creates a watertight, mechanically secure joint using a compatible press tool.

This elbow is suited for residential and light commercial plumbing installations, including domestic water distribution, radiant heating supply and return lines, and mechanical room piping. The 45-degree angle allows directional changes in tight spaces where a full 90-degree turn is not practical. It is intended for use with standard copper tubing in press-fit systems.

Key Features

• 45-degree elbow geometry for angled directional changes in copper piping runs
• 1-1/4 inch nominal press end connection — no soldering or flame required
• Copper construction for corrosion resistance in water service applications
• Press-style end style allows fast, repeatable mechanical joints
• Compatible with standard press tooling used in commercial and residential plumbing

Compatibility

Designed as an OEM-style press fitting for 1-1/4 inch nominal copper pipe systems using press-end connection technology.

Installation Notes

Installation requires a calibrated press tool compatible with the fitting size and end style. Shut off and depressurize the water supply before cutting into any existing line. Work must comply with local plumbing codes and applicable IPC requirements. Inspect the pipe end for burrs or deformation before pressing to ensure a proper seal.

Technical Specifications

• Nominal Size: 1-1/4 inch
• Connection Type: Press End
• Angle: 45 degrees
• Material: Copper

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77033
