Product Description

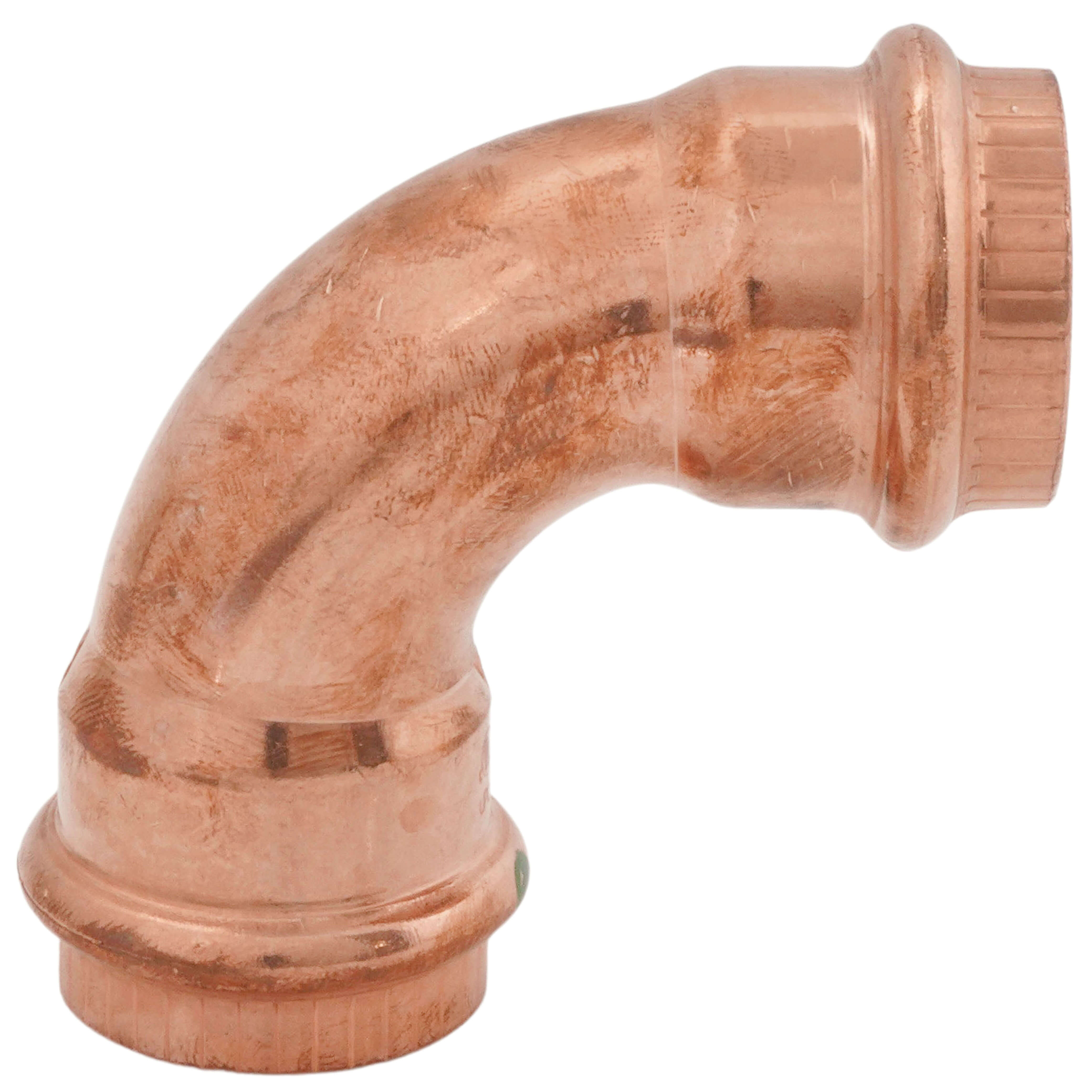

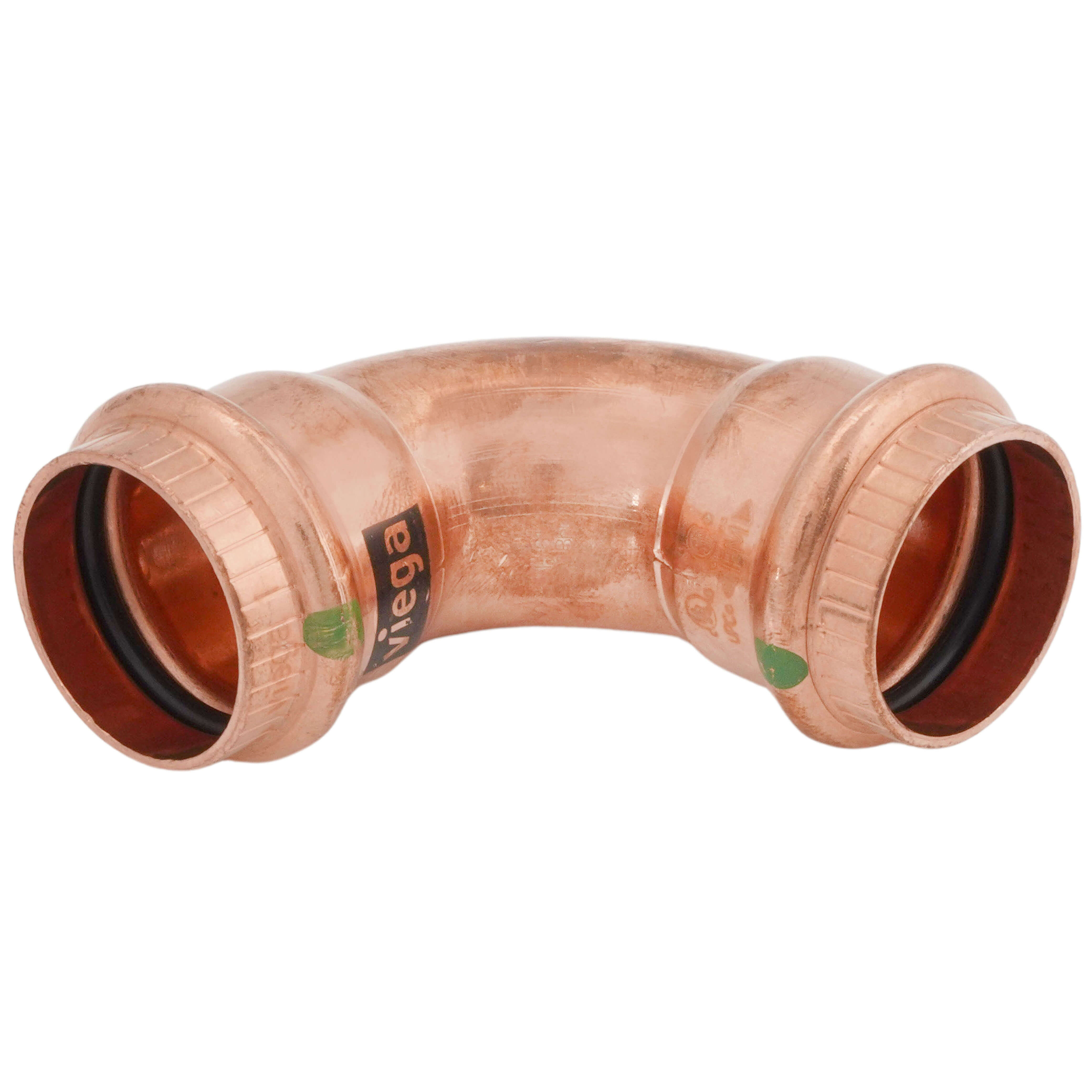

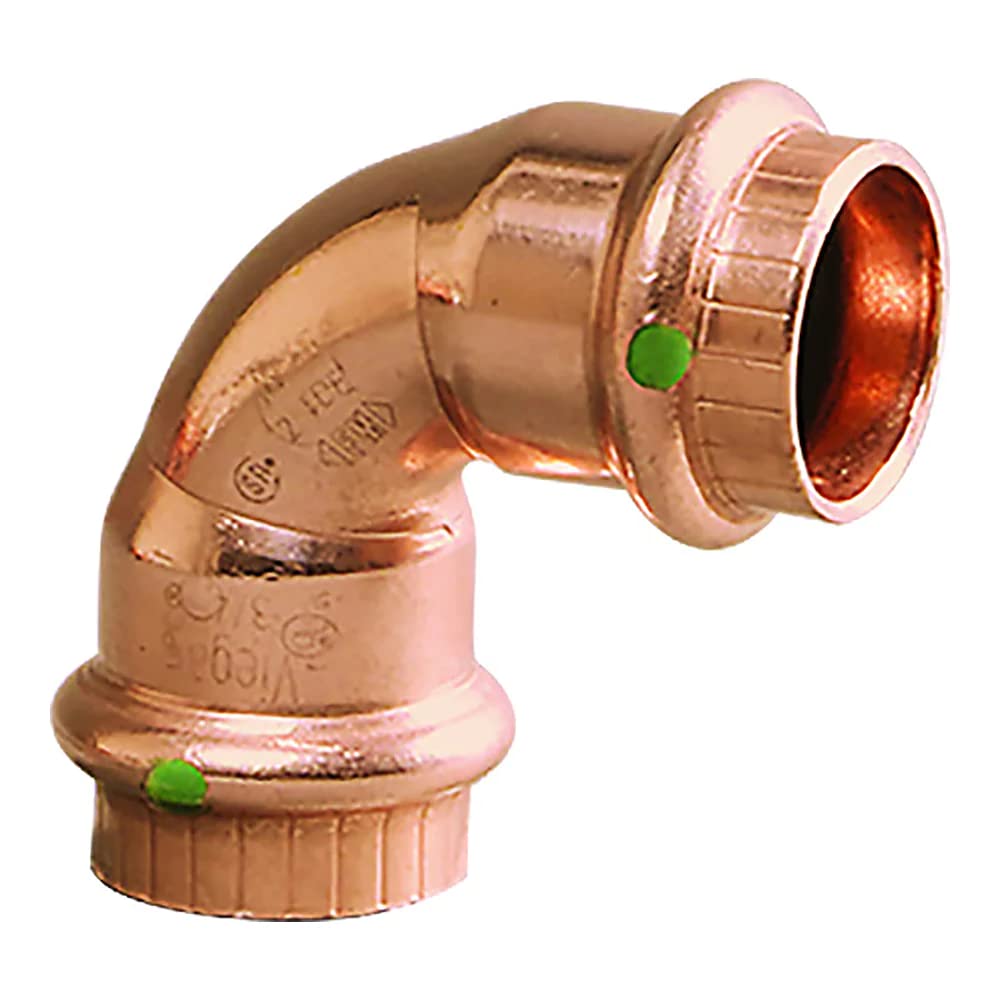

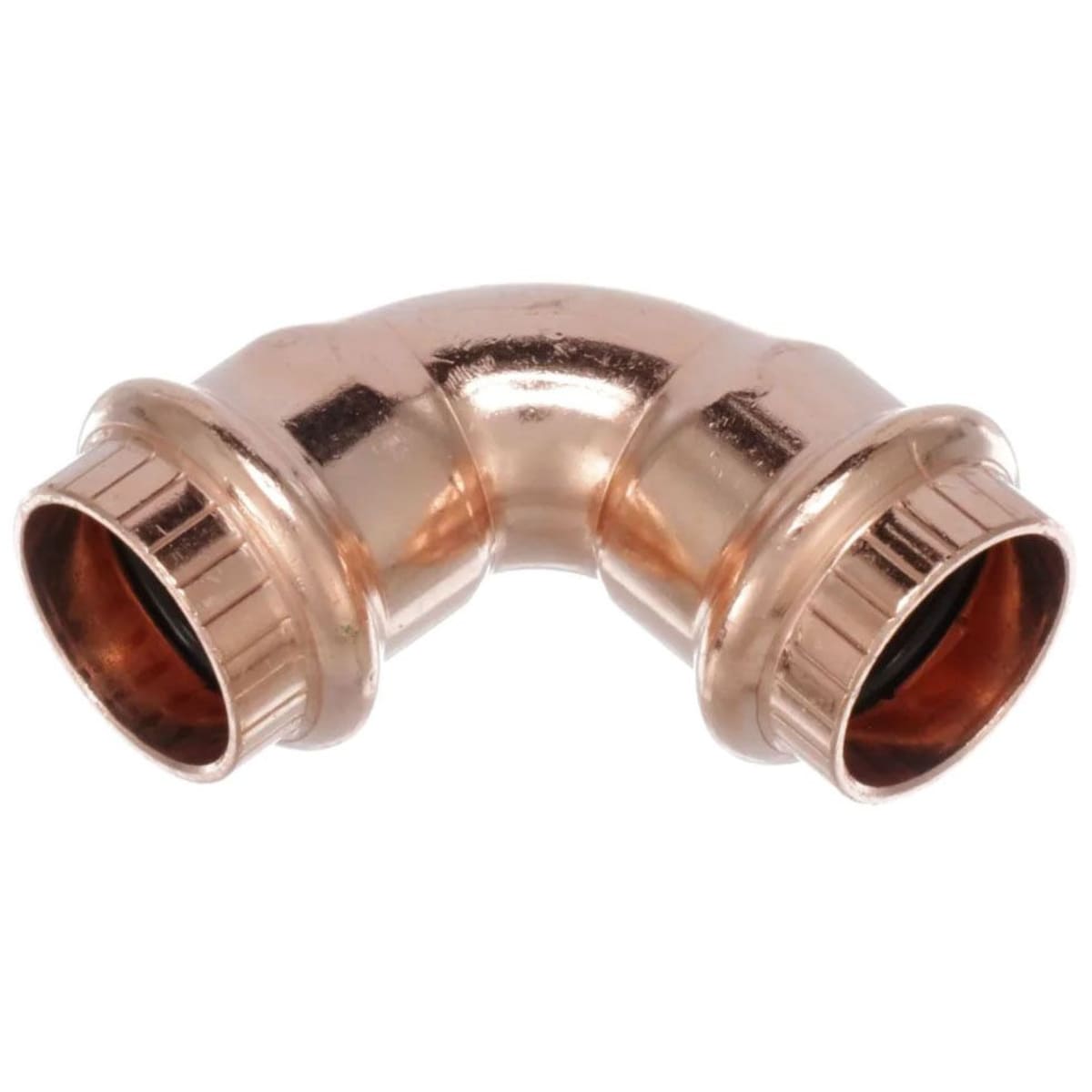

The Viega 77027 ProPress elbow is a 90-degree fitting with 1-inch press x press connections. Constructed from copper, this elbow is suitable for potable water, heating, gas, and fire protection systems. It features Smart Connect technology for secure connections. Compliant with multiple standards, it ensures reliability and performance.
- 90-degree elbow fitting
- 1-inch press x press connections
- Constructed from copper
Product Highlights
This Viega ProPress elbow ensures secure connections and is suitable for various applications.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 77027
-
Country of Origin: Germany
Technical Specifications
-
Color: Copper
-
Material: Copper
-
Thread Size: 1 inch
-
Connector Type: Elbow
-
Exterior Finish: Copper
-
Number of Pieces: 1
-
Measurement System: Inch
-
Batteries Required?: No
-
Type: Short Radius
-
Angle: 90 Degree
-
Size A: 1 Inch
-
Size B: 1 Inch
-
End Connection: ProPress x ProPress
-
Pressure Rating: 300 psi
-
Temperature Rating: 0 to 250 deg F
-
Application: Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler (175 PSI Maximum), Low Pressure Steam (15 PSI Maximum), Vacuum (29.2 Inch HG Maximum at 68 Deg F)
-
Applicable Standard: ABS, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
-
Includes: EPDM Sealing Element
-
For Use with: ASTM B88 Tubing
-
Fitting/Connector Type: 90 deg Elbow
-
Nominal: 1 in
-
End Style: Press
-
Material Specification: ASTM B88
-
Brand: Viega
-
Item Model Number: 77027
-
Bend Angle: 90 Deg
-
Nominal Size A: 1 inch
-
Nominal Size B: 1 inch
-
Connection Type: Press|Press
-
Fitting Connection Type: Press x Press
-
Tube Size: 1 In.
-
Pipe Size (Fittings): 1 In.
-
Tube Fitting Material: Copper
-
Size: 1"
-
Manufacturer: Viega
-
Fitting Material: Copper
-
Feature: Smart Connect feature, Zero Lead
-
Components: EPDM sealing elements
-
Diameter: 1 in
-
Connection Size 1: 1 in
-
Connection Size 2: 1 in
-
Connection Type 1: Press
-
Connection Type 2: Press
-
Fitting Size: 1 in
-
Fitting Type: 90 deg Elbow
-
For Use With: Viega ProPress ASTM B88 and ASTM B75 Tubes
-
Material Construction: Copper
-
Material Standard: UNS C12200
-
Model: 2916
-
Series: 2916 Series
-
Suitable For Use With: ASTM B88 and B75 Tubings
-
Material Type: Copper
-
Country of Origin: United States
-
MFG #: 77027
-
Pipe Sizes (p1 x P2): 1" x 1"
-
P1: 1"
-
P2: 1"
-
Brand Name: ProPress
-
CATALOG NUMBER: 77027
-
COMMODITY CODE DESCRIPTION LEVEL 3: Tube Fittings
-
Manufacturer Part Number Additional: 234029
-
Product Sub-Type: Elbow Fitting
-
Product Type: Pipes/Valves/Fittings
-
Series/Model: 2916
-
Item [Specifications]: 90 Degree Elbow
-
Standards [Specifications]: ASTM B75, ASTM B88
-
Tube Size [Specifications]: 1 in x 1 in
-
Compliance [Specifications]: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Application [Specifications]: Potable Water
-
Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
-
Fitting Shape [Specifications]: Elbow
-
Max. Pressure [Specifications]: 200 psi
-
Stop and Shape [Specifications]: 90 Degrees Elbow
-
O-Ring Material [Specifications]: EPDM
-
Copper Tube Size [Specifications]: 1 in x 1 in
-
Fitting Material [Specifications]: Copper
-
End Connection Type [Specifications]: Press
-
Pipe Size (Fittings) [Specifications]: 1" x 1"
-
Specific Fitting Shape [Specifications]: 90 Degrees Elbow
-
Basic Pipe Fitting Shape [Specifications]: Elbow
-
Fitting Copper Tube Size [Specifications]: 1 in
-
Pipe Size - Pipe Fitting [Specifications]: 1 in x 1 in
-
Maximum Operating Pressure [Specifications]: 200 psi
-
Basic Pipe Fitting Material [Specifications]: Metal
-
Specific Pipe Fitting Shape [Specifications]: 90 Degrees Elbow
-
Pipe Fitting Connection Type [Specifications]: Press x Press
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side A Copper Tube Size [Specifications]: 1 in
-
Fitting Side B Copper Tube Size [Specifications]: 1 in
-
Country of Origin (subject to change) [Specifications]: Germany
-
Selling Size: 1 in
-
Catalog Number: 77027
-
Connection Size: 1 in
-
Specifications Met: ABS, ASME B16.51, CSA MSE 13, FM Class 1920, Florida Building Code, ICC Certified, ICC LC 1002
-
Maximum Pressure Rating: 200 PSI
-
ManufacturerName: VIEGA LLC
-
Make: VIEGA LLC
-
SellUom: Each
-
SupplierSKU: 261077027
-
Nominal Size: 1 inch
