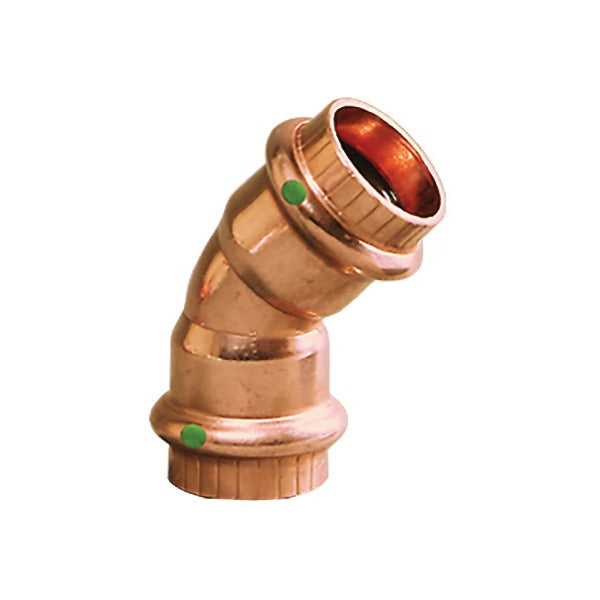

Viega 77023 45 Degree Press Copper Elbow 3/4 in

Product Description

The VIEGA 77023 is a 45-degree press-fit copper pipe elbow sized at 3/4 inch nominal. It connects two sections of copper tubing at a 45-degree angle using a press end style, eliminating the need for open flame soldering during installation. This fitting is used in potable water, hydronic heating, and plumbing distribution systems. Plumbers and pipefitters install this fitting in both new construction and retrofit applications where press technology is preferred for speed, safety, or code compliance in confined spaces.

The VIEGA 77023 is suited for residential and light commercial plumbing systems where 3/4 inch copper piping is routed at 45-degree offsets. Press fittings of this type are commonly installed in mechanical rooms, under-slab applications, and finished spaces where torch work is restricted or not permitted. No flux, solder, or open flame is required, making it appropriate for environments with flammable materials nearby or where hot-work permits are not available.

Key Features

• 45-degree elbow geometry for directional changes in copper piping runs
• Press end style connection eliminates soldering and open-flame work
• 3/4 inch nominal sizing fits standard copper tubing of that diameter
• Copper construction provides corrosion resistance in water and hydronic applications
• Compact profile suitable for tight spaces where torch access is limited

Compatibility

Designed as an OEM-style press fitting for use with 3/4 inch nominal copper tubing in standard plumbing and hydronic piping systems.

Installation Notes

Installation requires a compatible press tool and jaw set rated for the fitting size and manufacturer specification. Shut off and depressurize the water supply before making any connections. Work must comply with applicable local plumbing codes and standards such as the International Plumbing Code (IPC). Verify that all press connections are fully seated and pressed before restoring system pressure.

Technical Specifications

• Nominal Size: 3/4 inch
• Angle: 45 degrees
• End Style: Press
• Material: Copper

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77023
