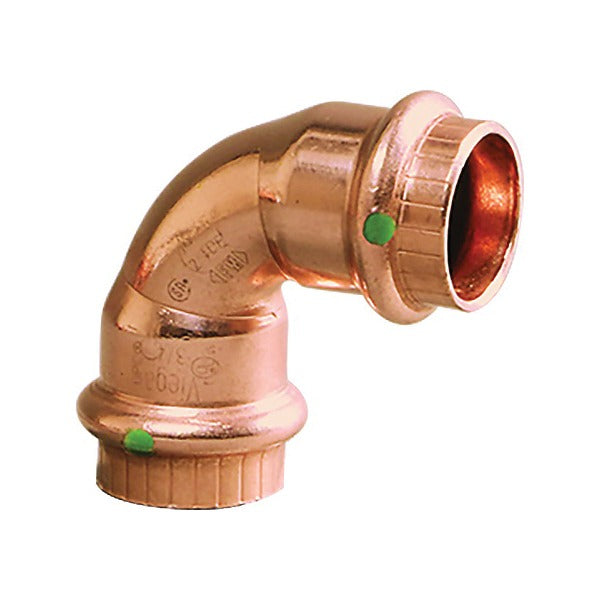

Viega 77022 90 Degree Press Copper Elbow 3/4 Inch

Product Description

The VIEGA 77022 is a 90-degree copper pipe elbow designed for use with press-style connection systems. It accepts 3/4-inch nominal pipe and creates a secure, permanent joint without open flame or soldering. The press end style allows technicians to make connections quickly using a compatible press tool, reducing labor time on rough-in and retrofit plumbing work. This fitting is suited for potable water, hydronic heating, and general plumbing distribution systems where copper is the specified material.

The VIEGA 77022 is used in residential and light commercial plumbing installations. It is a standard choice for situations where torch work is restricted, such as remodels, occupied buildings, or installations near combustible materials. Licensed plumbers and pipefitters install this fitting as part of copper press systems during new construction and service work alike.

Key Features

• 90-degree elbow configuration for direction changes in copper piping runs
• Press end style connection eliminates the need for soldering or open flame
• 3/4-inch nominal size fits standard copper tube sizing
• Copper construction provides corrosion resistance in water service applications
• Compatible with standard press tooling used in professional plumbing installations

Compatibility

Designed as an OEM-style press fitting for use in 3/4-inch nominal copper piping systems where press-style end connections are specified.

Installation Notes

Installation is performed by a licensed plumber using a compatible press tool rated for copper press fittings. Shut off and depressurize the water supply before making or breaking any connections. Verify pipe ends are clean, deburred, and fully inserted to the depth mark before pressing. Follow local plumbing codes, including applicable IPC requirements, for fitting use in potable water or hydronic systems.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: Press
• Elbow Angle: 90 degrees
• Material: Copper

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 77022
