Viega 51063 PureFlow MiniBloc Zoning Manifold Adapter 5 Port 1/2 Inch 2 Hot 3 Cold

Product Description

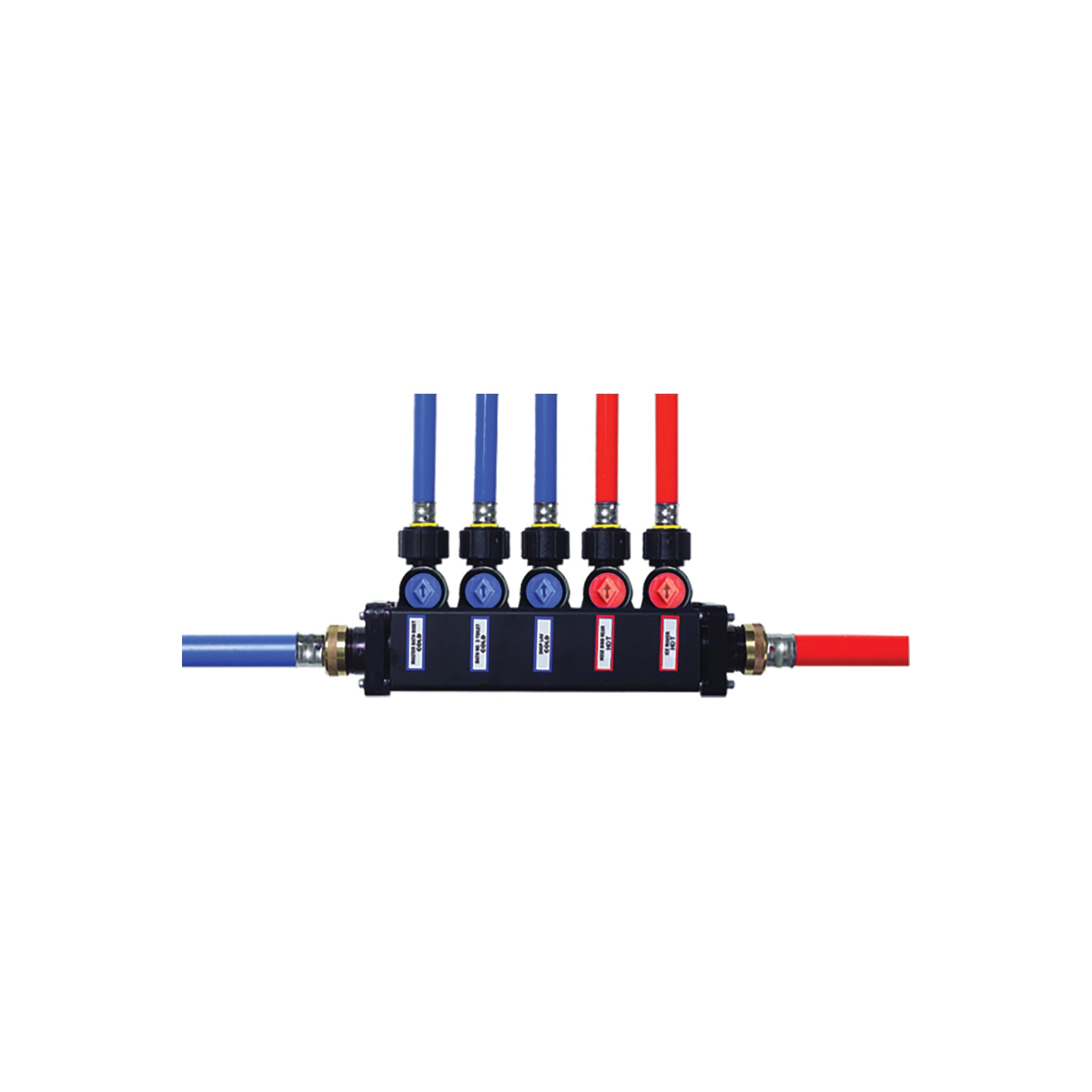

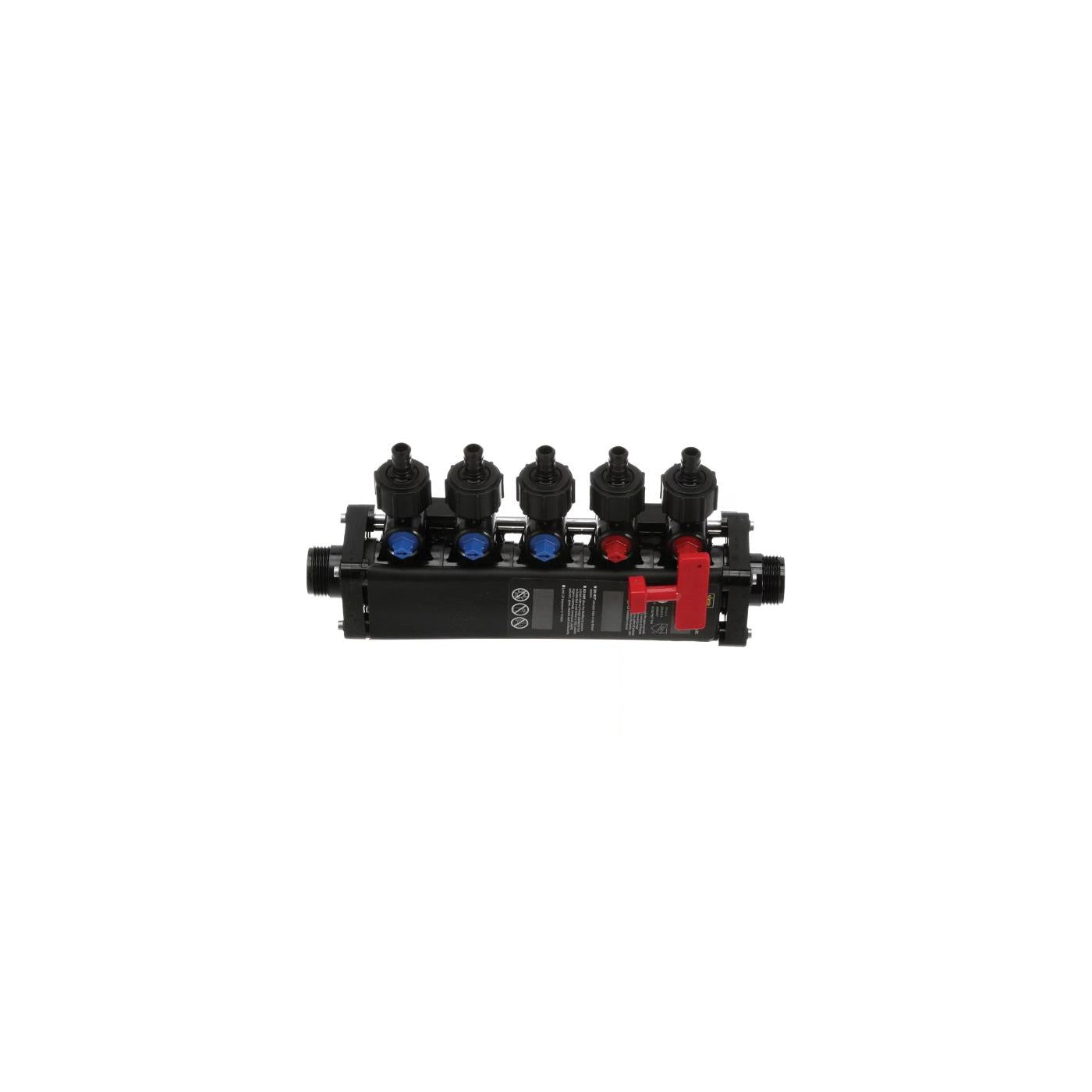

The Viega 51063 PureFlow MiniBloc Zoning Manifold is an adapter featuring PolyAlloy construction. This manifold includes 5 ports with a 1/2 inch diameter, specifically configured with 2 hot ports and 3 cold ports for efficient water distribution. Designed for combination systems, it utilizes PEX crimp connections and is suitable for plumbing applications, providing central control for individual fixtures.

• PolyAlloy adapter construction ensures durability and corrosion resistance.
• Features 5 ports with a 1/2 inch diameter, including 2 hot and 3 cold connections.
• Designed for PEX crimp connections in plumbing and combination systems.

Product Highlights

Ideal for zoning multiple outlets in home and commercial plumbing applications, offering central control and efficient water distribution.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 51063
• Country of Origin: USA

Technical Specifications

• Adapter Material: PolyAlloy
• Number of Ports: 5
• Port Diameter: 1/2 inch
• Hot Ports: 2
• Cold Ports: 3
• Type: Manifold
• Lead Free: Yes
• Application: Plumbing
• Connection Type: Crimp
• Tubing Compatibility: PEX
• Inlet Connection Size: 1 inch
• Branch Spacing: 1-11/16 inch OC (On Center)
• Dimensions (L x H x W): 11.55 inch x 2-1/2 inch x 4-3/8 inch
• Max Pressure Rating: 100 psi
• Max Temperature Rating: 180 degrees F
• Port Branch Pressure Drop: 3.4 psi @ 4.0 GPM
• Port K-Factor: 0.21 (for 1/2 inch PEX)
• Color: Black
