Viega 50718 Manabloc Access Panel 14x18 Plastic 14 Port

Product Description

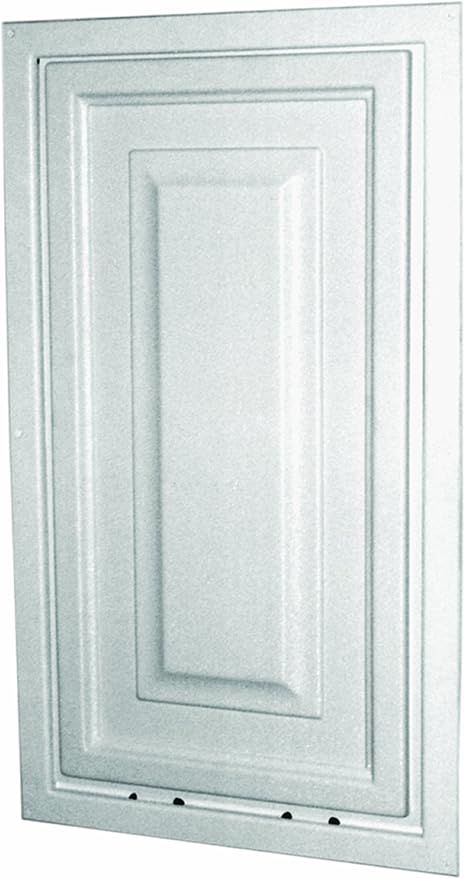

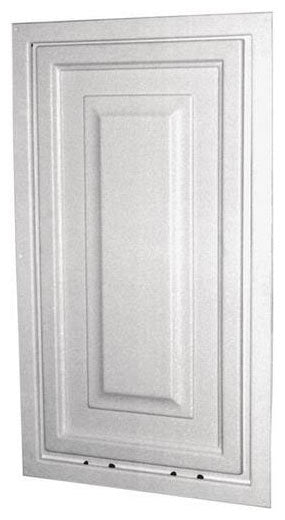

The VIEGA 50718 is a plastic access panel designed for use with PureFlow ManaBloc manifold systems in residential plumbing installations. The panel provides a finished, closeable wall opening that allows service access to the ManaBloc manifold without requiring destructive wall entry. Measuring 14 inches wide by 18 inches tall, it accommodates manifold configurations with up to 14 ports. The lightweight plastic construction keeps the installed weight low while providing a clean, professional appearance in finished wall surfaces. Licensed plumbers and plumbing contractors typically install this panel during new construction or remodel work.

This access panel is suited for residential plumbing systems where a PureFlow ManaBloc manifold is installed in a wall cavity. It is designed to mount flush to the finished wall surface, giving technicians and homeowners a dedicated service point for shutting off individual branch lines without opening walls. The panel is appropriate for use in utility rooms, mechanical closets, hallways, and other locations where ManaBloc manifolds are commonly installed.

Key Features

• Supports manifold configurations with up to 14 ports
• Panel opening dimensions of 14 inches by 18 inches provide adequate clearance for manifold access
• Plastic construction resists corrosion in damp mechanical spaces
• Overall unit dimensions of 16.5 inches wide by 19 inches long by 1.6 inches deep
• Manufactured in the USA
• Lightweight at 1.35 pounds for straightforward single-person installation

Compatibility

Designed for use with Viega PureFlow ManaBloc manifold systems requiring wall-mounted access panel coverage for configurations up to 14 ports. Model reference V5099.

Installation Notes

Installation is typically performed by a licensed plumber during rough-in or finish plumbing stages. Shut off the water supply to the manifold system before performing any work behind the panel. The panel should be mounted to the finished wall surface with fasteners appropriate for the wall material. Follow local plumbing codes and manufacturer framing requirements to ensure the rough opening is sized correctly before securing the panel.

Technical Specifications

• Material: Plastic
• Panel Opening Width: 14 inches
• Panel Opening Length: 18 inches
• Maximum Ports: 14
• Overall Length: 19 inches
• Overall Width: 16.5 inches
• Overall Height: 1.6 inches
• Weight: 1.35 pounds
• Model Number: V5099
• Country of Origin: Made in USA

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 50718
