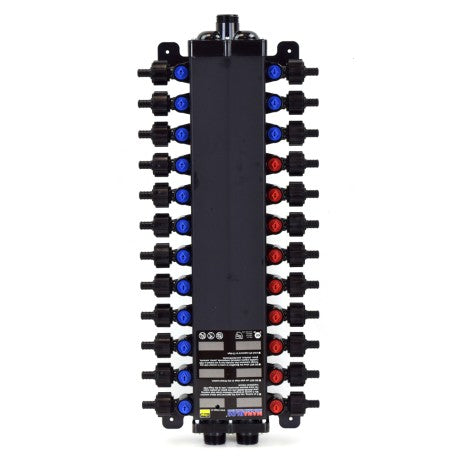

Viega 50624 Pex Crimp Manabloc Manifold 24 Port

Product Description

The VIEGA 50624 is a 24-port dual PEX crimp ManaBloc manifold designed for home-run plumbing distribution systems in residential and light commercial construction. It consolidates all hot and cold water branch lines at a single point, giving plumbers individual fixture control without daisy-chaining. The manifold handles both 3/8-inch and 1/2-inch PEX crimp connections across its 24 ports, rated to a maximum of 100 psi at 180 degrees F. Every port is fitted with a built-in 1/4-turn shutoff valve, so any fixture can be isolated without interrupting service to the rest of the system. PEX adapters for all ports and a valve key are included in the box.

This manifold is intended for use with ViegaPEX Ultra potable and non-barrier tubing using the crimp connection method. It is also fully compatible with all Type A, B, and C PEX tubing from other manufacturers. Typical installations include new residential construction and remodel projects where a home-run layout is specified, routing dedicated supply lines from the manifold directly to each fixture. The hot and cold inlet connections are 1-inch (ManaBloc adapters required). Branch spacing is 1-11/16 inches on center, which accommodates standard manifold cabinet sizing.

Key Features

• 24 total crimp ports: seven 3/8-inch hot, eleven 3/8-inch cold, two 1/2-inch hot, four 1/2-inch cold
• Built-in 1/4-turn shutoff valve on every port for individual fixture isolation
• Rated to 100 psi at 180 degrees F for high-temperature potable water systems
• Compatible with all PEX types (A, B, C) and brands using the crimp connection method
• Lead-free construction certified for potable water use under NSF/ANSI 61 and 372
• Includes PEX adapters for all ports and a valve key — no additional fittings required at the manifold
• Made in the USA

Compatibility

Designed for use with ViegaPEX Ultra potable and non-barrier tubing and compatible with all Type A, B, and C PEX tubing from any manufacturer using the crimp connection method. Hot and cold inlets are 1-inch connections; ManaBloc adapters are required for inlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IAPMO standards. Shut off the main water supply and relieve system pressure before making any connections at the manifold. Use a calibrated PEX crimp tool with the appropriate ring size for each port diameter to ensure a leak-free connection. Do not overtighten inlet adapter fittings; follow the adapter manufacturer torque guidance and verify all shutoff valves are in the closed position before pressurizing the system for the first time.

Technical Specifications

• Total Ports: 24 (18 at 3/8 inch, 6 at 1/2 inch)
• Port Breakdown: 3/8 inch — 7 hot, 11 cold; 1/2 inch — 2 hot, 4 cold
• Port Connection Type: PEX Crimp (3/8 inch and 1/2 inch)
• Inlet Connection Size: 1 inch (ManaBloc adapters required)
• Max Pressure Rating: 100 psi at 180 degrees F
• Port Pressure Drop: 3.4 psi at 4.0 GPM (1/2 inch PEX); 2 psi at 2.5 GPM (3/8 inch PEX)
• Port K-Factor: 0.21 (1/2 inch PEX); 0.35 (3/8 inch PEX)
• Branch Spacing: 1-11/16 inches on center
• Dimensions (L x H x W): 23-13/16 inches x 3 inches x 8 inches
• Certifications: NSF/ANSI 61 and 372, ASTM F876/F877, CSA B137.5, UPC-IAPMO
• Lead-Free: Yes, approved for potable water use
• Country of Origin: USA

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 50624
