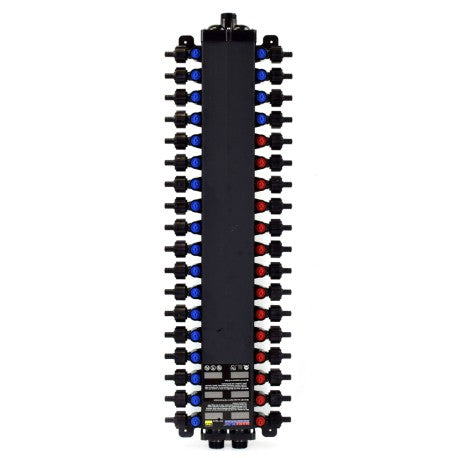

Viega 50363 ManaBloc Distribution Manifold 36 Ports

Product Description

The VIEGA 50363 ManaBloc distribution manifold incorporates a system of PEX distribution lines dedicated to individual plumbing fixtures. These manifolds arrive fully assembled and factory tested. They include individual quarter-turn port shutoff valves, which allow complete control over the entire plumbing system from one central location.

• Color Coded Ports for Hot and Cold Water
• Made in USA
• Easy to install

Product Highlights

Viega ManaBloc offers a parallel water distribution system with PEX lines for individual fixtures, ensuring quality, reduced noise, and excellent chlorine resistance.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 50363
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ASTM F877/F1807/F2159, UPC, NSF pw-G (Canada and US), CSA B137.5, ICC-ES PMG 1038
• Body Material: Polyalloy (Adapter)
• End Connection: PEX Crimp x PEX Crimp
• Header Pipe Size: 1/2 Inch
• Height: 3 Inch
• Length: 33.92 Inch
• Number Of Ports: 36
• Port Size: 1/2 Inch
• Product Sub-Type: Hydraulic Manifold
• Product Type: Hydraulics/Pneumatics Elements and Accessories
• Series/Model: V5030.5
• Service: Hot and Cold Water
• Temperature Rating: 180 Deg F
• Width: 8 Inch
• Total Ports (Branches): 36 (14 Hot & 22 Cold)
• Port Connections: 1/2" PEX Crimp
• Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
• Branch spacing: 1-11/16" OC (On Center)
• Dimensions (L x H x W): 33-15/16" x 3" x 8"
• Max Pressure Rating: 100 psi @ 180°F
• Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM
• Port K-Factor: 0.21 (for 1/2" PEX)
• Lead-free: approved for potable water use
• Meets: NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
• Certification: UPC-IAPMO Certified
• Number of Outlets: 36
• Outlet Size: 1/2 in
• Material: Polysulfone
• Domestic/Import: Domestic
• Brand: Viega
• MPN: 50363
• Country of Origin: United States
