Viega 49765 Test Plug 1 Inch Press End Polymer

Product Description

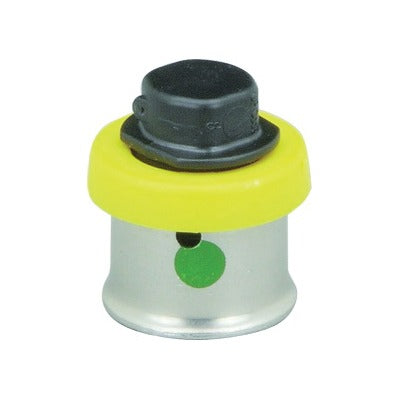

The VIEGA 49765 is a polymer test plug designed for use in PureFlow Press piping systems. It features a press end style connection and a 1-inch nominal size, allowing technicians to temporarily seal a pipe end during pressure testing without threading or soldering. The polymer construction keeps the fitting lightweight and corrosion-resistant. Licensed plumbers and pipefitters install this plug when commissioning or inspecting a system, verifying line integrity before final connections are made.

This test plug is used in residential and light commercial plumbing applications where PureFlow Press fittings are specified. It is suited for new construction and retrofit work where sections of piping must be isolated and tested for leaks. The press end style allows fast, tool-activated installation consistent with the rest of the PureFlow Press system, eliminating the need for open flames or thread sealant at the test point.

Key Features

• 1-inch nominal size matches standard PureFlow Press fitting dimensions
• Press end style connection for fast, flame-free installation
• Polymer construction resists corrosion and keeps weight low
• Designed for temporary pipe-end sealing during pressure testing
• Domestic product sourcing

Compatibility

Designed as an OEM-style test plug for 1-inch PureFlow Press piping systems using press end style fittings.

Installation Notes

Installation is performed by a licensed plumber using a press tool approved for the PureFlow Press system. Shut off the water supply and depressurize the line before inserting the test plug. Follow applicable IPC and local plumbing code requirements for pressure testing procedures and maximum allowable test pressures. Remove the test plug and replace it with the appropriate permanent fitting once testing is complete and the system has passed inspection.

Technical Specifications

• Nominal Size: 1 inch
• End Style: Press
• Material: Polymer
• Origin: Domestic

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 49765
