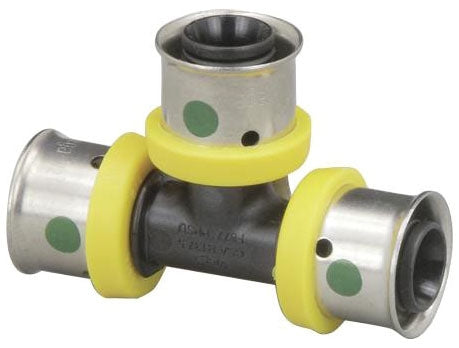

Viega 49554 1 x 1 x 3/4 PEX Press Tee

Product Description

The Viega 49554 is a PEX press tee with a nominal size of one inch by one inch by three-quarters inch. This tee fitting features a PEX press connection, ensuring easy installation without the need for glue or soldering. It is made from polymer and is suitable for various applications including potable water systems and hydronic heating.

• Pex press connection allows for quick and reliable installation.
• Corrosion-resistant polymer material enhances durability.
• Meets multiple standards including NSF 61 and ASTM F877.

Product Highlights

This product is designed for use in residential and light commercial applications. Its factory-assembled design allows for immediate testing upon installation, facilitating efficient plumbing work.

Product Information

Standard Information

• Type: Tee (Reducing)
• Brand: Viega

Technical Specifications

• Nominal Size: 1 Inch x 1 Inch x 3/4 Inch
• Material: Polymer
• Pressure Rating: 160 PSI
• Temperature Rating: 180 Deg F (Potable), 200 Deg F (Hydronic)
• Applicable Standards: CAN/ULC S101/S102.2, CSA B137.5, IAPMO, ICC-ES PMG 1038/1015, NSPC, UL 1821, NFPA
• End Connection: PEX Press x PEX Press x PEX Press
• Catalog Number: 49554
