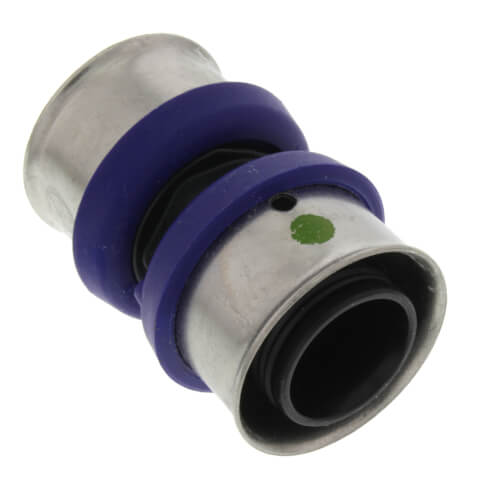

Viega 49404 PureFlow PEX Press Polymer Coupling 3/4 Inch

Product Description

The Viega 49404 PureFlow PEX Press Polymer Coupling with a 3/4 inch nominal size ensures a reliable connection in plumbing systems. This coupling is designed for easy installation using press technology, eliminating the need for soldering or gluing.

• Press technology for quick, reliable connections
• Lead-free, polymer construction
• Supports up to 160 psi and temperatures from 180 degrees Fahrenheit for potable water to 200 degrees Fahrenheit for hydronic applications

Product Highlights

Featuring Viega's Smart Connect technology, this coupling allows for immediate testing of the connection, providing a fail-safe installation. Suitable for potable water systems as well as hydronic heating and snow melting applications.

Product Information

Standard Information

• Brand: Viega
• Series: PureFlow
• Type: PEX Press Polymer Coupling
• Material: Polymer

Technical Specifications

• Nominal Size: 3/4 inch
• Length: 1.66 inches
• Pressure Rating: 160 psi
• Temperature Rating: 180 degrees Fahrenheit potable/200 degrees Fahrenheit hydronic
• Connection Type: Press
• Compliance: NSF/ANSI, ICC ES PMG, UL, ASTM, CSA
