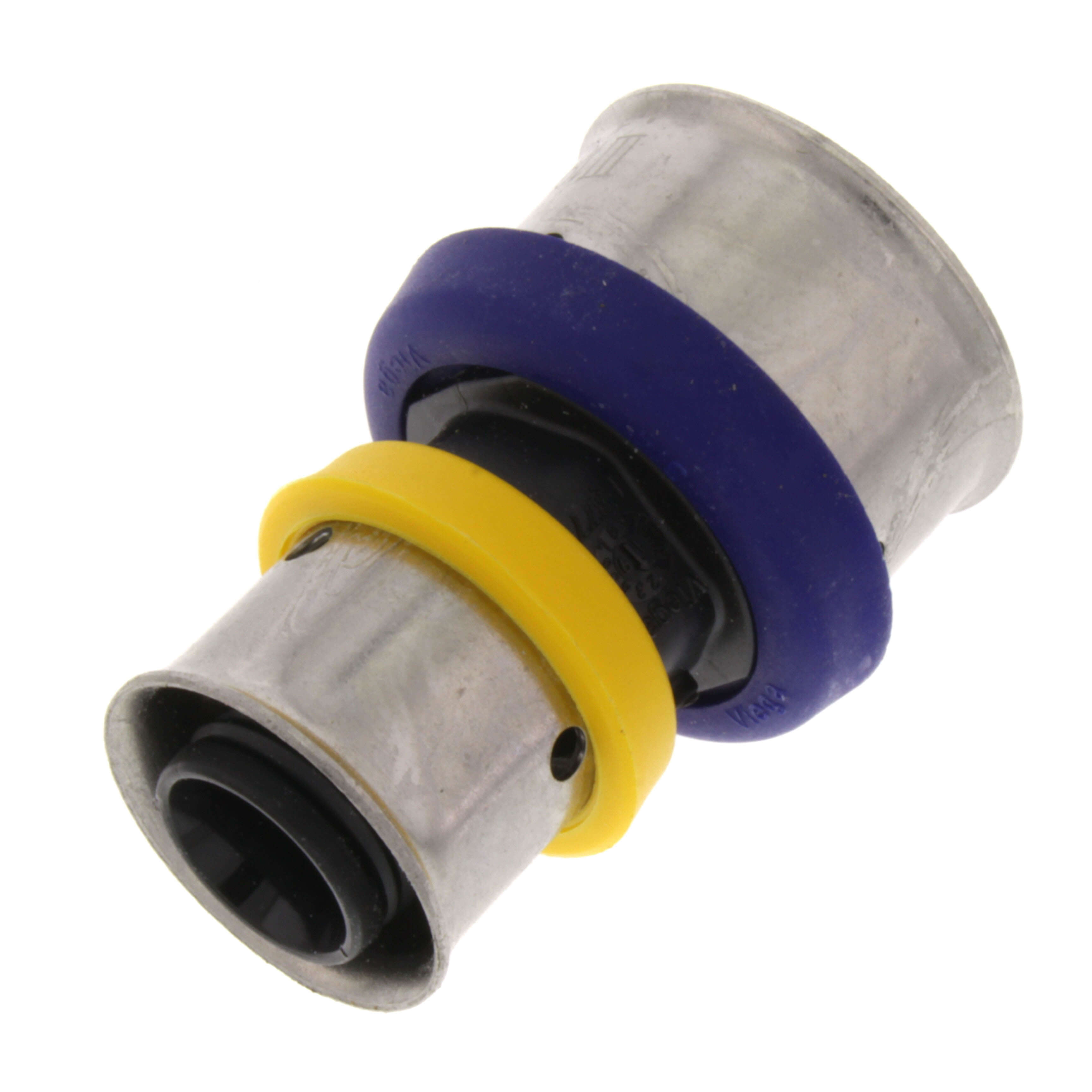

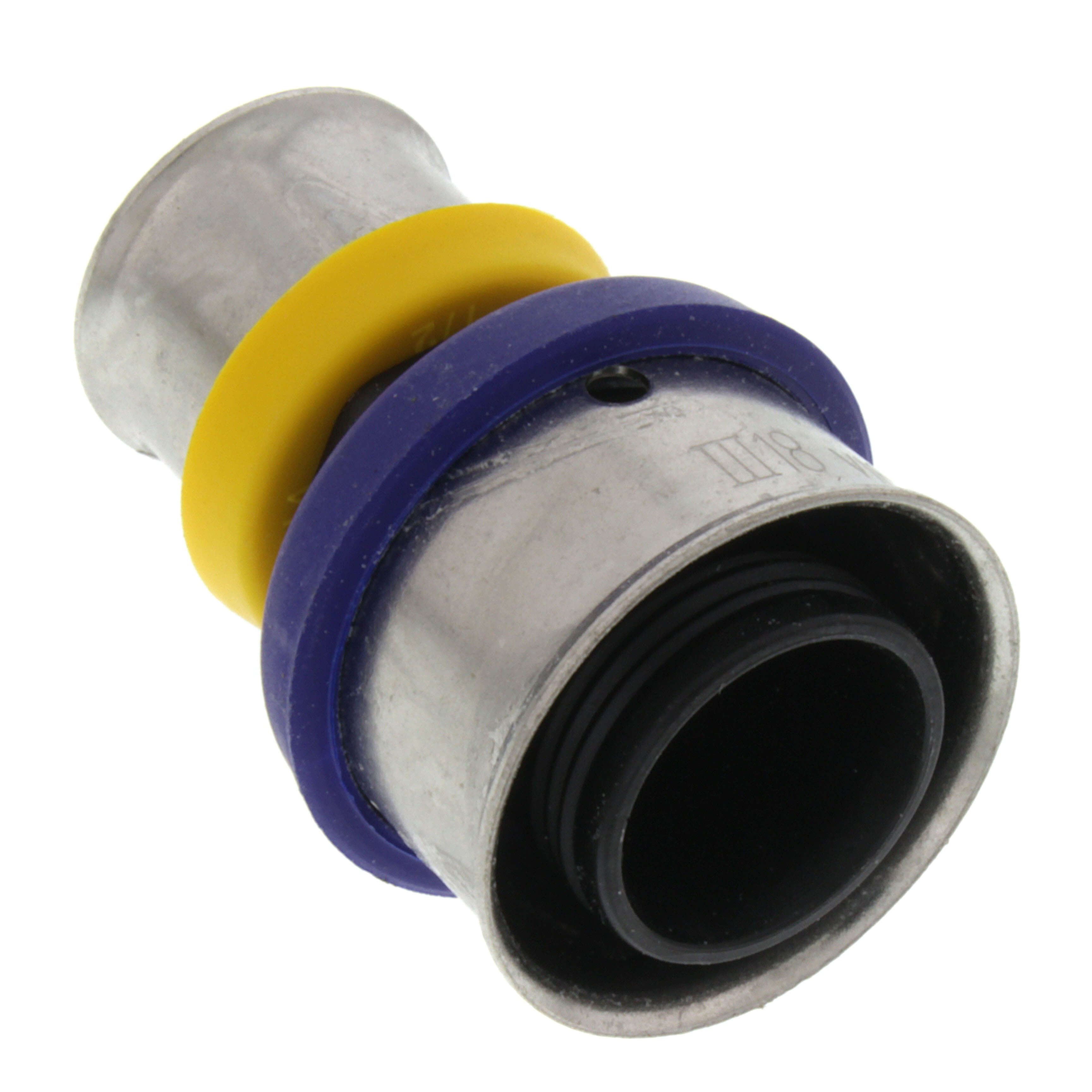

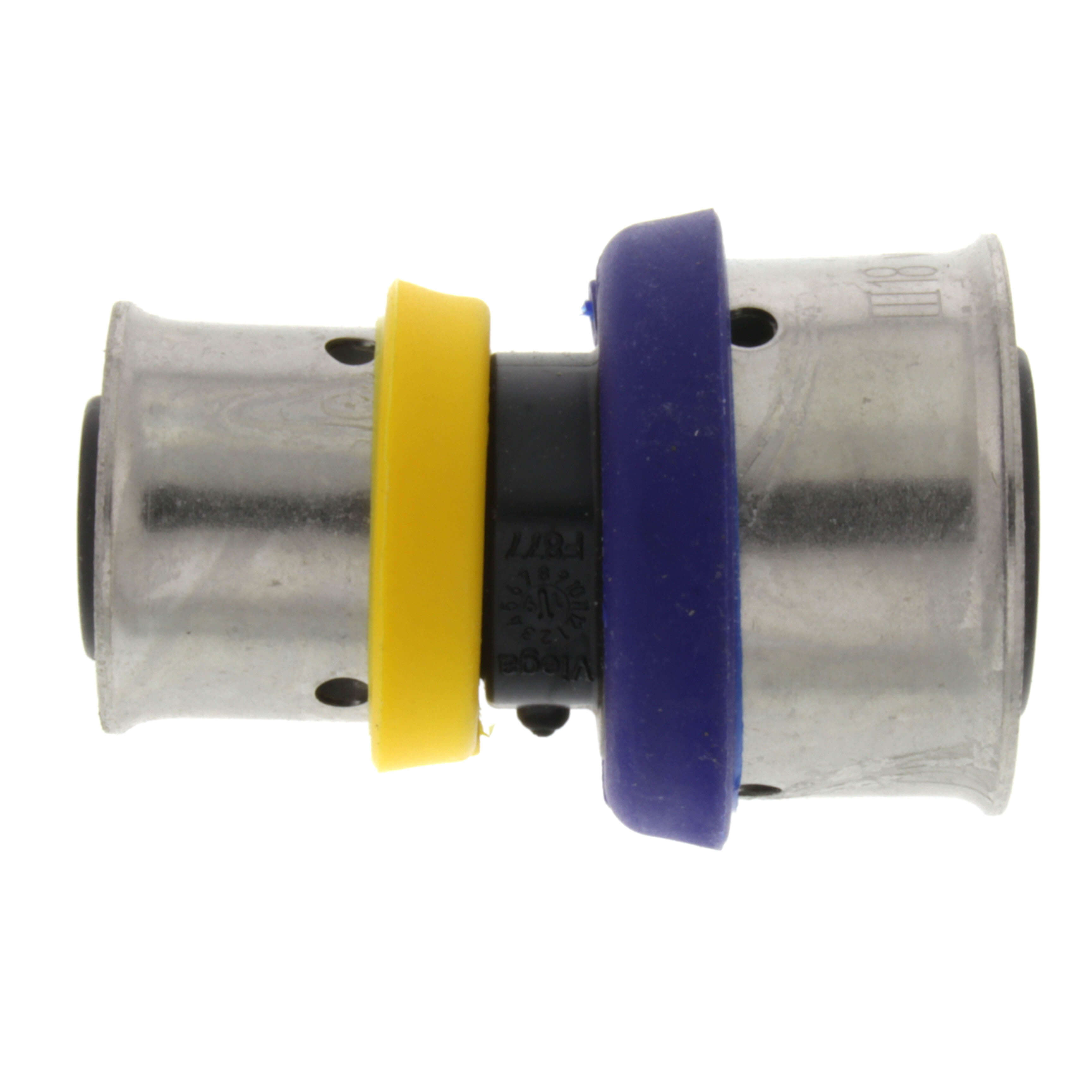

Viega 49343 Vpexap34x12cpl 3/4 inchesx 1/2 inches Poly Pex Press Reducer Coupling Assembled

Product Description

The VIEGA 49343 Vpexap34x12cpl is a coupling fitting with a reducing type. It features a 3/4 inch Size A and 1/2 inch Size B. Constructed from polymer material to ASTM F2159, it is suitable for potable water, hydronic heating/snow melting, and residential fire sprinkler applications. Pressure Rating 160 PSI.

• Coupling Fitting
• Reducing Type
• PEX Press x PEX Press End Connection

Product Highlights

This coupling is designed for potable water and hydronic heating systems. It is made from polymer and has a pressure rating of 160 PSI.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 49343
• Country of Origin: Domestic

Technical Specifications

• Type: Reducing
• Size A: 3/4 Inch
• Size B: 1/2 Inch
• End Connection: PEX Press x PEX Press
• Material: Polymer
• Material Specification: ASTM F2159
• Pressure Rating: 160 PSI
• Temperature Rating: 180 Deg F (Potable), 200 Deg F (Hydronic Heating)
• Application: Potable Water, Hydronic Heating/Snow Melting, Residential Fire Sprinkler
• Applicable Standard: NSF/ANSI 14, AWWA C904, CAN/ULC S101/S102.2, CSA B137.5, IAPMO, ICC, NSPC, UL 1821
• Series: PureFlow
• Fitting/Connector Type: Coupling
• Nominal: 3/4 x 1/2 in
• End Style: Press
• Length: 1.62 in
• Temperature: 180 deg F Potable/200 deg F Hydronic
• Domestic: Yes
