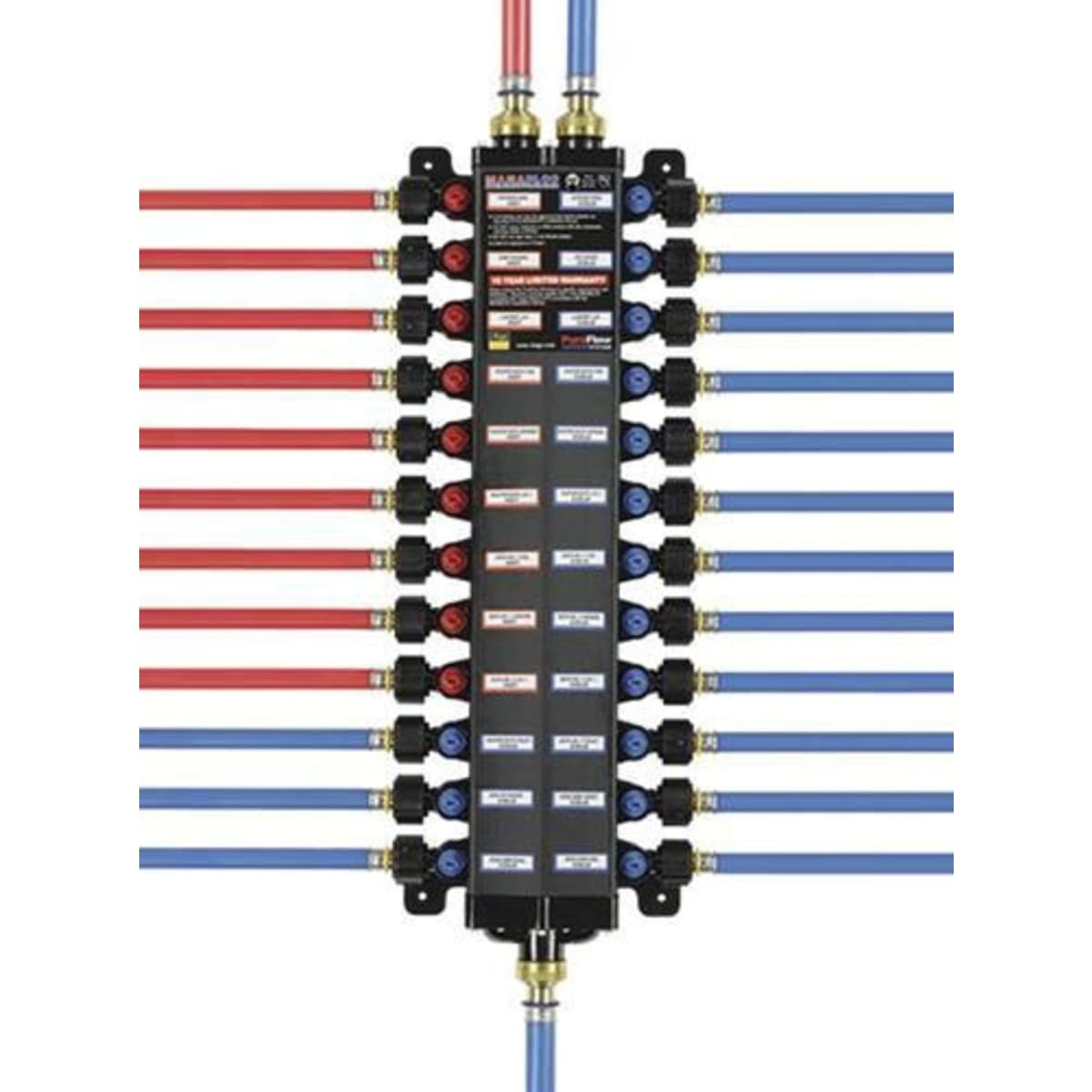

Viega 49243 PEX Press x ManaBloc distribution manifold 100 PSI 1/2 inch 24 port (9 hot/15 cold)

Product Description

The VIEGA 49243 is a PEX Press x ManaBloc distribution manifold. This 1/2 inch manifold features 24 ports (9 hot, 15 cold). Constructed from polysulfone plastic, it resists hot temperatures and chemicals in potable water systems. Designed for Viega PureFlow PEX, FostaPEX, or Barrier PEX tubing, it uses a press connection. The manifold includes 1/4 turn valves and a T-handle valve key. It is lead-free and suitable for potable water, rated for 100 PSI at 180 degrees Fahrenheit.

• Proven quality and non-corroding construction.
• Factory assembled with valves and color coded ports for hot and cold water.
• Lead-free and approved for potable water use.

Product Highlights

Lead-free polysulfone manifold with 24 color-coded ports and Smart Connect technology.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 49243
• Country of Origin: United States

Technical Specifications

• Type: Manifold
• Manufacturer: Viega
• MPN: 49243
• Material: Polysulfone Plastic
• Model: V5630
• Suitable Media: Water
• Port Count: 24
• Hot Ports: 9
• Cold Ports: 15
• Port Connection Type: PEX Press
• Port Connection Size: 1/2 inch
• Inlet Connection Size: 1 inch
• Branch Spacing: 1-11/16 inch OC
• Max Pressure Rating: 100 PSI at 180°F
• Port Pressure Drop: 3.4 PSI at 4.0 GPM
• Port K-Factor: 0.21
