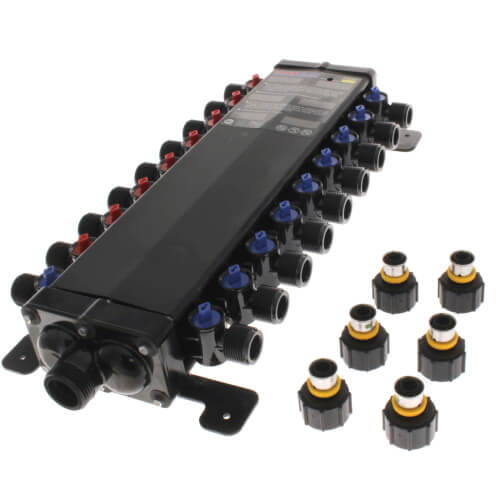

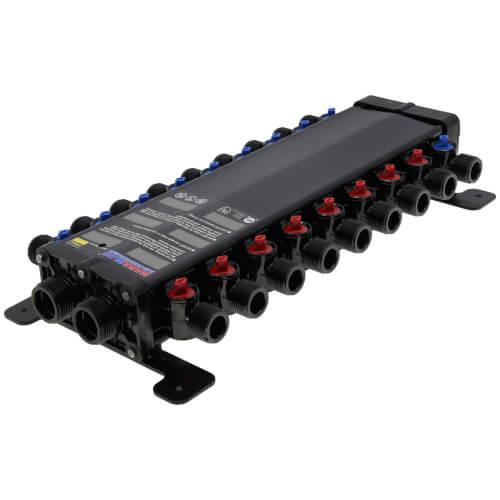

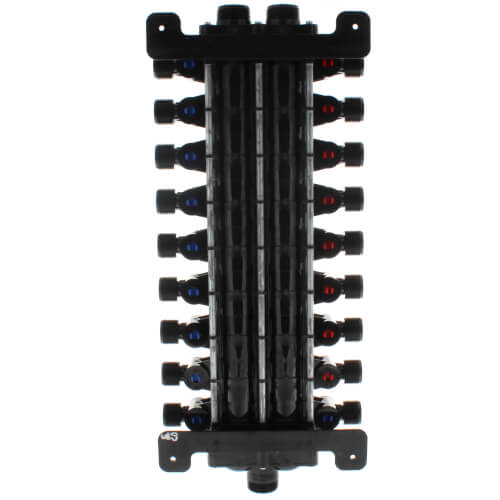

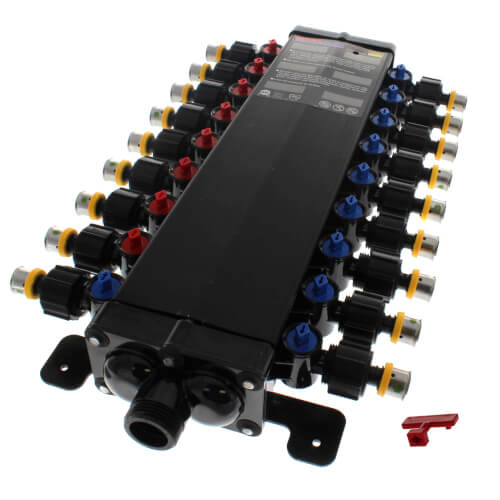

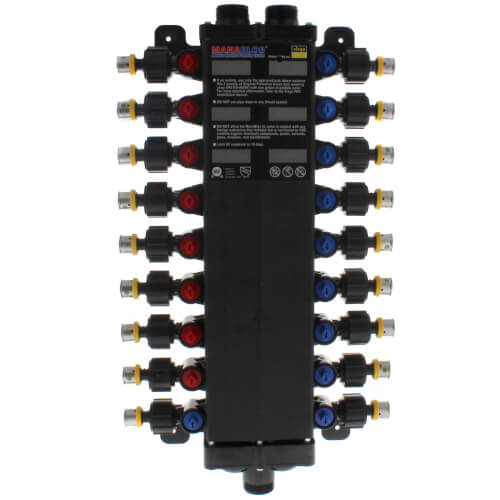

Viega 49183 1/2 inches, 18 Port Zero Lead PEX Press Polymer MANABLOC (8 hot, 10 cold)

Product Description

The VIEGA 49183 Polymer PEX Press Manablocs provide a home-run distribution manifold for plumbing systems, utilizing either 3/8" or 1/2" distribution lines. Each Manabloc comes pre-assembled with color-coded hot and cold ports and includes Press connections, drill templates, an instruction guide, a faceplate, and port labels. It has a maximum pressure/temperature rating of 100 psi @ 180°F.

• Port Size: 1/2"
• Features 18 ports (8 hot, 10 cold)
• Constructed from polyphenylsulfone

Product Highlights

This lead-free Viega Manabloc is compatible with PEX Press fitting systems and PEX tubing, ideal for efficient plumbing distribution.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 49183

Technical Specifications

• Port Size: 1/2"
• Application: Plumbing
• Size: 1/2"
• Number of Outlets (Cold): 10
• Number of Outlets (Hot): 8
• Number of Outlets: 18
• Lead Free: Yes
• Material: Polyphenylsulfone
• Fitting System Compatibility: PEX Press
• Tubing Compatibility: PEX
• Connection Type: PEX Press
