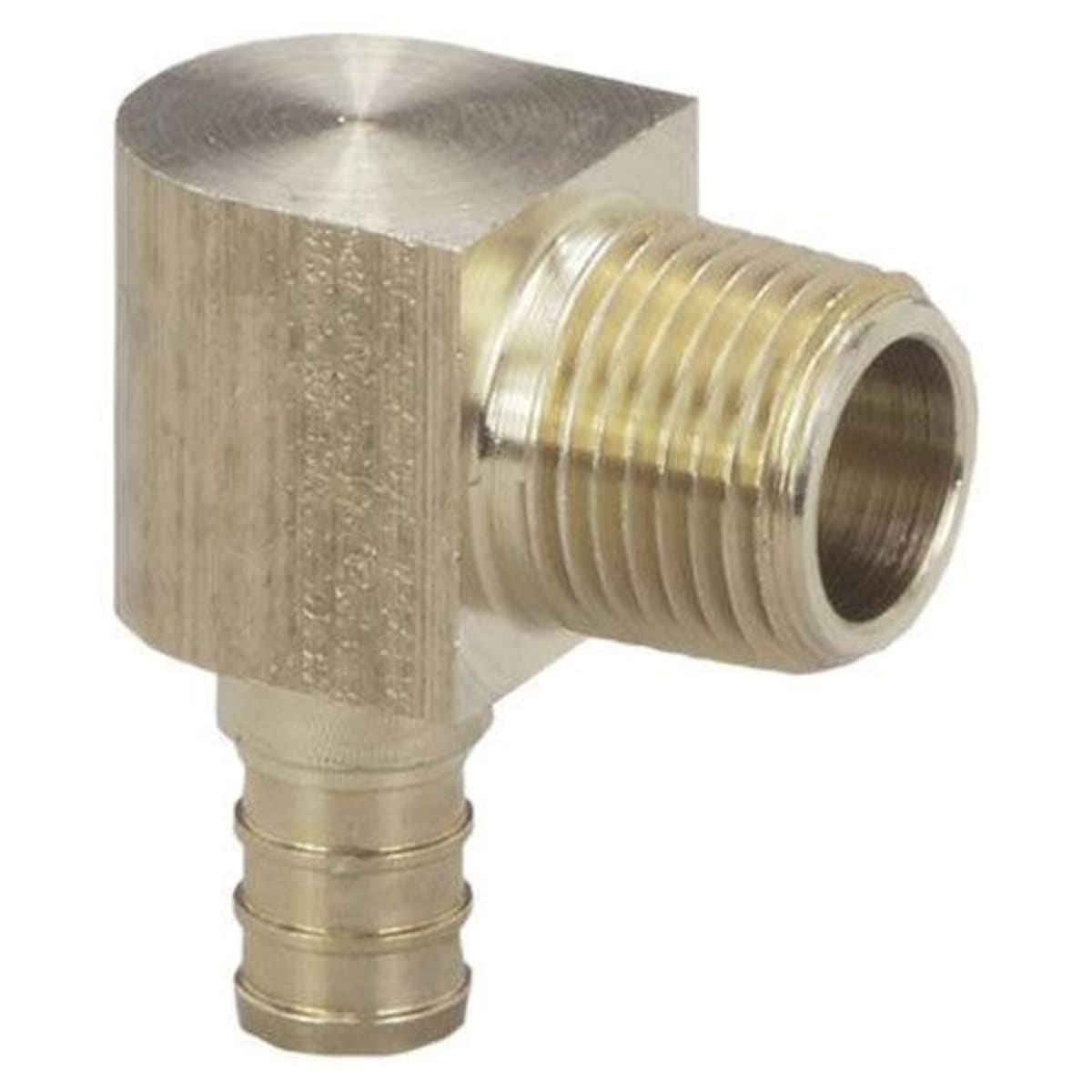

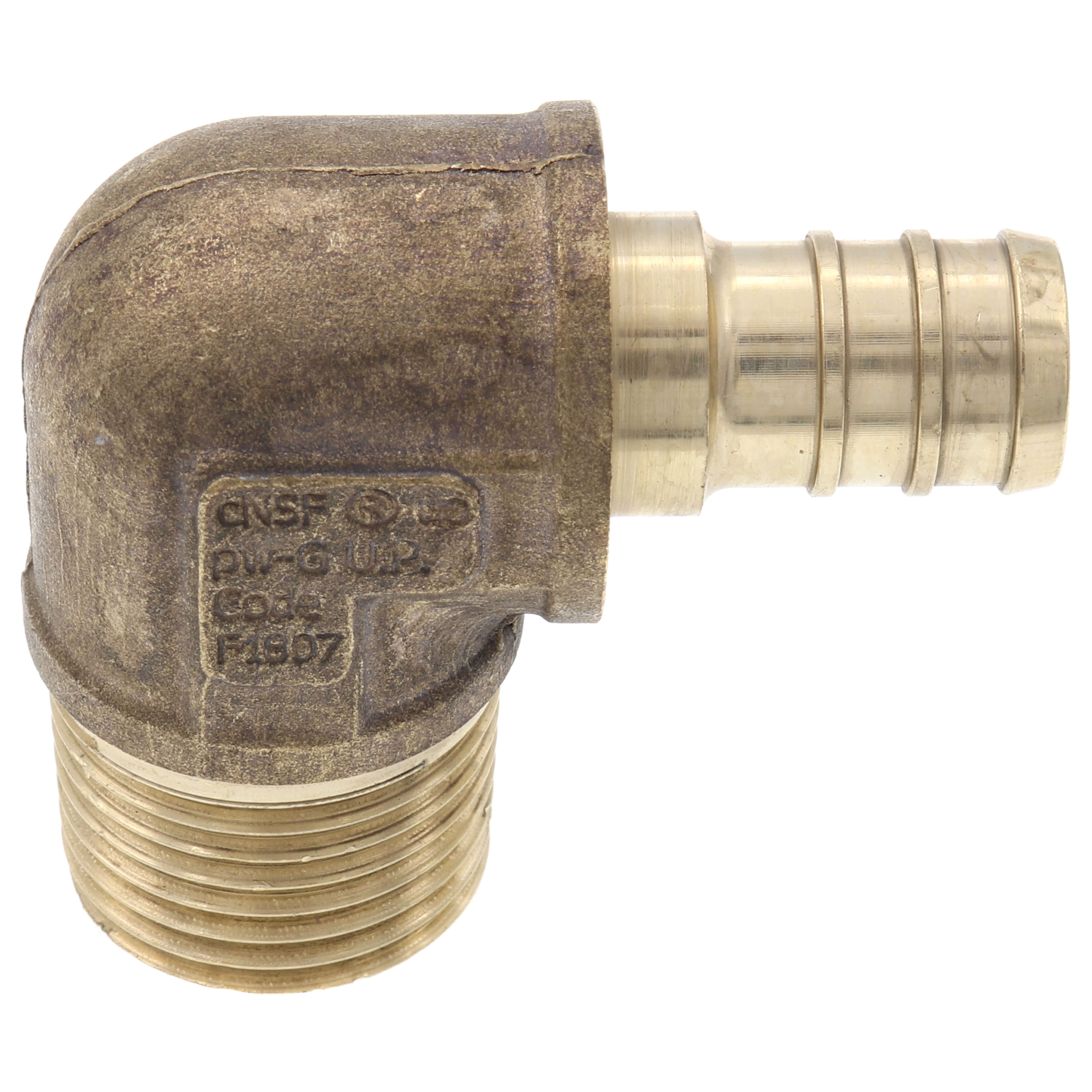

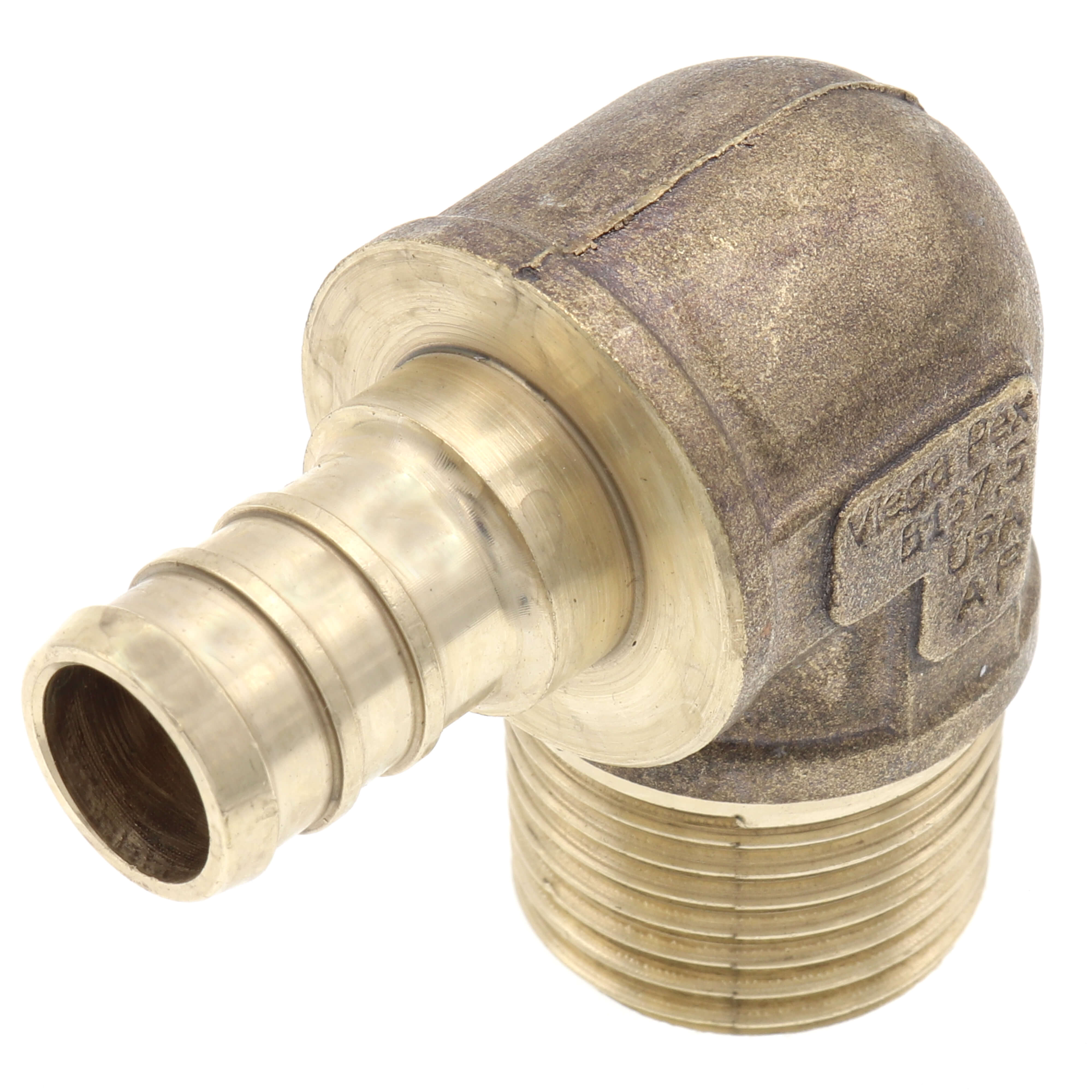

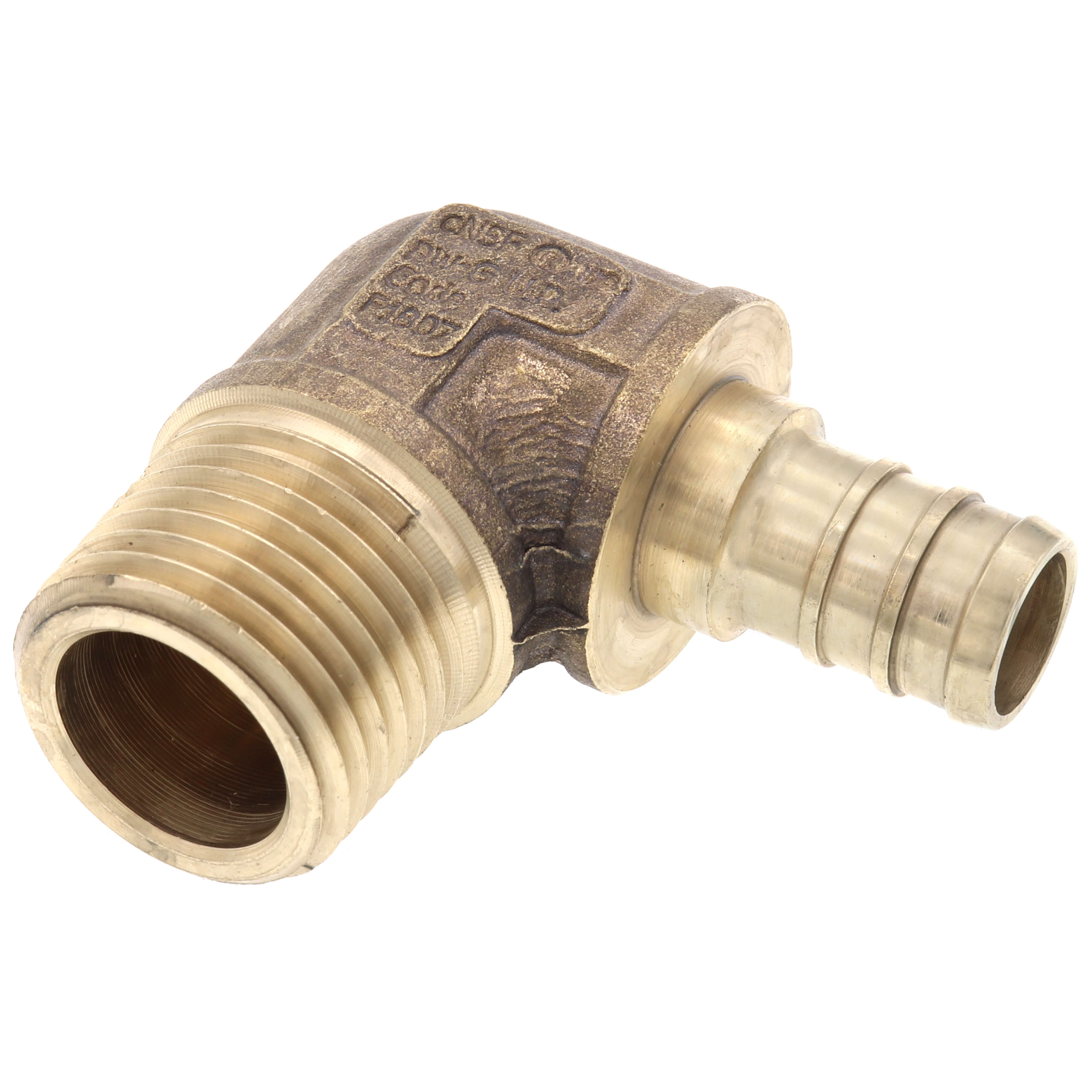

Viega 46821 Zero Lead Brass Pex Crimp X 1/2 Male NPT Elbow

Product Description

The VIEGA 46821 elbow fitting features a 90-degree angle with a 1/2 inch Size A and 1/2 inch Size B. Constructed from brass, it uses a PEX crimp x male threaded end connection. Suitable for commercial, residential, and potable water systems. It adheres to standards NSF/ANSI 14/61/61G, AWWA C904, CAN/ULC S101/S102.2, CSA B137.5, IAPMO, ICC, NSPC, UPC, ICC ES-PMG 1038, UL 1821.

• EcoBrass Fittings Provide Better Corrosion Resistance than Other Brass Fitting
• Peace of Mind from Durable Materials and Quality Manufacturing
• Lead-Free

Product Highlights

This elbow fitting is ideal for potable water systems, offering durability and corrosion resistance with lead-free brass construction.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 46821
• Country of Origin: USA

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: NSF/ANSI 14/61/61G, AWWA C904, CAN/ULC S101/S102.2, CSA B137.5, IAPMO, ICC, NSPC, UPC, ICC ES-PMG 1038, UL 1821
• Application: Commercial, Residential, Potable Water System
• End Connection: PEX Crimp x Male Threaded
• Material: Brass
• Pressure Rating: 100 PSI at 180 Deg F, 160 PSI at 73 Deg F
• Temperature Rating: 180 Deg F
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• Manufacturer Part Number: 46821
• Domestic/Import: Domestic
• Fitting Type: 90 deg Elbow
• Nominal Size: 1/2 in
• Series: PureFlow®
• Size: 1/2" x 1/2"
• PEX Size: 1/2"
• Thread Size: 1/2"
• Lead Free: Yes
• Connector type: Elbow
• Exterior finish: Brass
• Thread type: NPT
• End Style: Pex Barb x Brass MNPT
• Manufacturer: Viega
• Product Type: 90 Elbow
• Equivalent Part Number: 46821
• Diameter: 1/2 in
