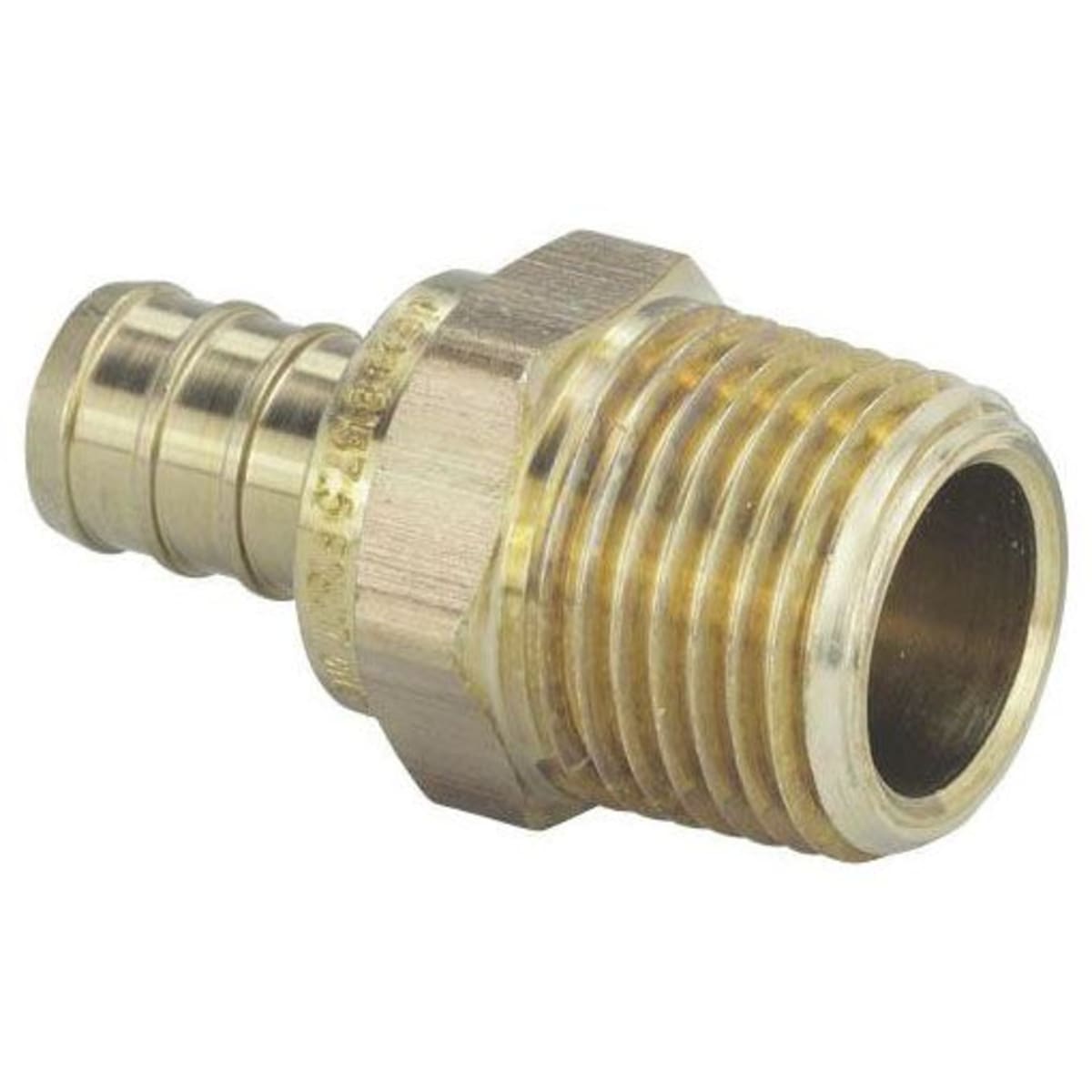

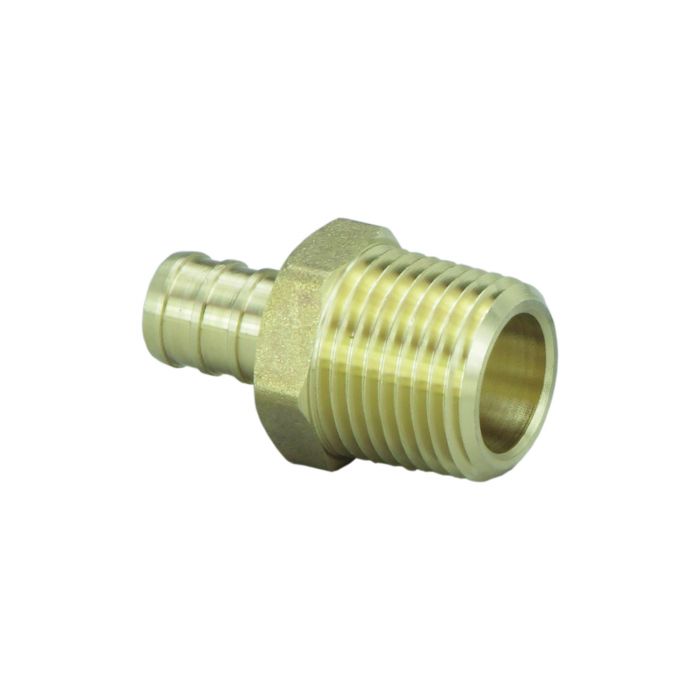

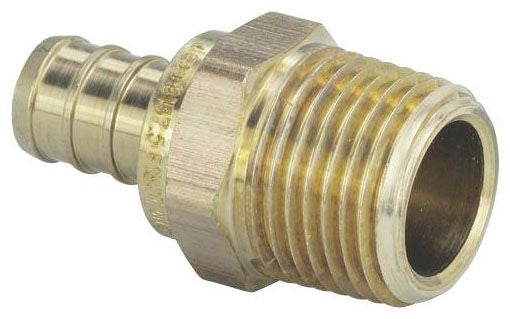

Viega 46340 Zero Lead 3/4 Brass Pex Crimp x 3/4 Male NPT Adapter

Product Description

The VIEGA 46340 adapter fitting is a straight type with a 3/4 inch size A and 3/4 inch size B. Constructed from brass, it meets material specifications ASTM F876/877/E84/F2023/F1807/F2159. Suitable for potable water distribution systems, it adheres to standards such as CSA B137.5 and NSF/ANSI 14/61/372.

• Lead-Free
• Made in USA
• Suitable for potable water distribution systems

Product Highlights

The VIEGA 46340 adapter ensures reliable connections in plumbing systems, providing durability and adherence to industry standards.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 46340
• Country of Origin: USA

Technical Specifications

• Type: Straight
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• End Connection: PureFlow Crimp x Male Threaded
• Material: Brass
• Material Specification: ASTM F876/877/E84/F2023/F1807/F2159
• Pressure Rating: 160 PSI
• Temperature Rating: 180 Deg F
• Application: Potable Water Distribution System
• Applicable Standard: CSA B137.5, CPC, NSPC, UMC, UPC, IMC, IPC, IRC, NBCC, NPCC, ICC, IAPMO, HUD MR1276, NSF/ANSI 14/61/372
• Lead-Free: Yes
• Brand Name: PureFlow
• CATALOG NUMBER: 46340
• Category: Plumbing & Bath / Kitchen Fixtures
• Features/Benefits: Lead-Free; Made in USA
• Manufacturer Name: Viega
• Manufacturer Part Number: 46340
• Manufacturer Part Number Additional: 741093
• Series/Model: V5011ZL
• UNSPSC Code: 40183109
• UPC: 691514463407
• Series: PureFlow ®
• Nominal Size: 3/4 in
• Length: 1.84 in
• Domestic/Import: Domestic
• End Style: Crimp x MNPT
• Fitting/Connector Type: Adapter
• Fitting Type: Adapter
• Connection Type: PEX Crimp
• Specifications Met: NSF 61 Annex G, ANSI/NSF 372
• Diameter: 3/4 in
