Viega 45ELL-1 Megapress 45 Degree Elbow 1 Inch

Product Description

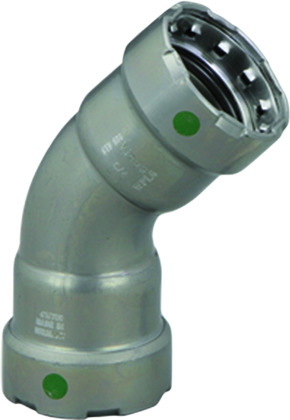

The VIEGA 45ELL-1 is a 1-inch carbon steel 45-degree elbow fitting designed for use with the MegaPress press-fit system. It connects two segments of pipe at a 45-degree angle without soldering, threading, or open flame. The fitting uses Smart Connect technology, which allows installers to identify unpressed connections during pressure testing, reducing the risk of a failed joint going undetected. This fitting is intended for use on liquid piping systems and is installed by licensed plumbers and pipefitters working on commercial or residential mechanical systems.

This elbow is used in closed hydronic, domestic water, and industrial liquid piping applications where a 45-degree directional change is needed. The press-fit connection method makes it suitable for retrofit and new construction work where torch use is restricted or impractical. It is not rated for gas service. The 1-inch press x press (PXP) end configuration accepts standard 1-inch pipe on both ends.

Key Features

• Smart Connect technology enables detection of unpressed fittings during system pressure testing
• Carbon steel construction suitable for liquid piping service
• No-flame press-fit installation eliminates need for soldering or threading
• 1-inch press x press (PXP) end connections on both sides
• 45-degree angle for standard directional changes in piping runs
• Not approved for gas service applications

Compatibility

Designed for use with the Viega MegaPress system on 1-inch carbon steel pipe in liquid service applications. Not intended for gas piping.

Installation Notes

Installation must be performed by a qualified plumber or pipefitter using a compatible Viega-approved press tool and jaw set sized for 1-inch MegaPress fittings. Depressurize and drain the system before working on any existing piping. Verify that all connections have been fully pressed before restoring system pressure, using Smart Connect technology to confirm joint integrity during initial pressurization.

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press x Press (PXP)
• Pipe Size: 1 inch x 1 inch
• Angle: 45 Degrees
• UPC: 691514252407

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 45ELL-1
