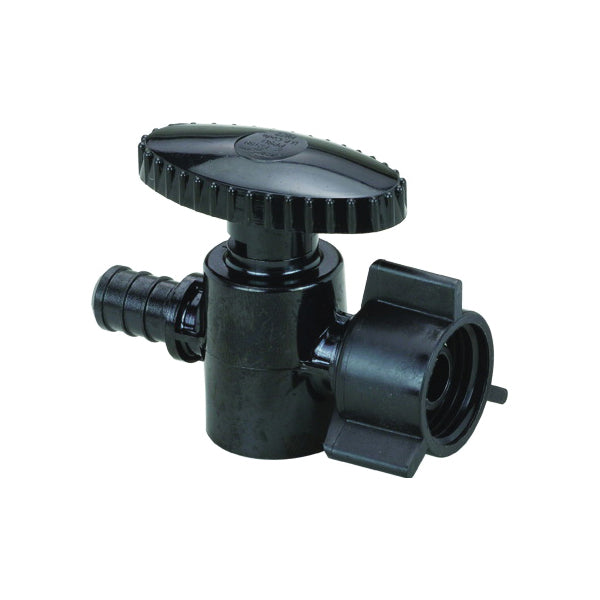

Viega 43023 PureFlow Crimp Stop Valve 3/8 x 1/2 in

Product Description

The Viega 43023 PureFlow Crimp Stop Valve is a reliable and economical solution for connecting PEX piping. Compatible with Viega MANABLOC parallel water distribution system and ViegaPEX tubing options. The straight stop valve features a 3/8 x 1/2 inch nominal size and Crimp x Lav end style, ensuring a secure plumbing connection.

• 25 years of proven performance
• Cost effective and easy to install
• Equipped with superior wear properties

Product Highlights

Viega PureFlow PEX Crimp fittings are an affordable choice for a quality plumbing system. Designed with high corrosion resistance and easy installation.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 43023
• Country of Origin: United States

Technical Specifications

• End Style: Crimp x Lav
• Nominal Size: 3/8 x 1/2 in
• Pressure Rating: 160 psi
• Body Material: Brass
• Trim Material: PTFE
• Temperature Rating: 0 to 180 deg F
• Finish: Polished Chrome
• Domestic/Import: Domestic
• Series: PureFlow®
• Softgoods Material: PTFE
• Size: 3/8" x 1/2"
• Material: PolyAlloy
• PEX Size: 3/8"
• Application: Heating, Plumbing
• Thread Size: 1/2"
• Thread Type: Female
• Max Temp (F): 200°F
• Standards Met: ASTM F1807, NSF, ASTM F877
• Max Pressure (PSI): 200
• Tubing Compatibility: PEX
• Fitting System Compatibility: Crimp, Clamp
• Product Type: Straight Stop Valve
• Manufacturer: Viega
• Model: 43023
• Collection: PureFlow Crimp
• Length: 1.22"
• Width: 2.13"
• Height: 3"
• Dimensions: 3/8'' x 1/2''
