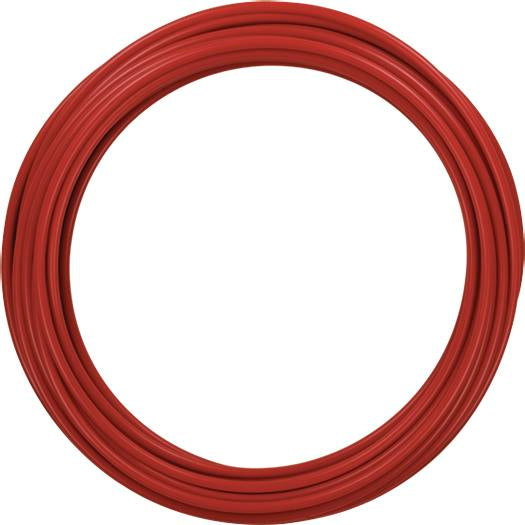

Viega 33145 Pureflow Ultra Tubing 3/4 in OD x 20 ft L

Product Description

The VIEGA 33145 PureFlow Ultra Tubing measures 3/4 in OD x 20 ft L. Constructed from PEX material, this tubing is suitable for new or retrofit applications in residential or light commercial projects. It meets ASTM F-876/F-877 standards and approvals, with a working pressure of 160 psi and a temperature rating of 180 to 200 deg F.

• No glue, solder torches or lubricants needed
• Can be installed in nearly any climate
• Allows immediate testing without waiting for glue to dry, fittings to cool or plastic rings to contract

Product Highlights

Durable PEX tubing resistant to corrosion and dezincification. Viega PEX press/crimp.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 33145
• Country of Origin: US

Technical Specifications

• Color: Red
• Country of Origin: US
• Domestic/Import: Domestic
• Length: 20 ft
• Material: PEX
• Mfg Standards/Approvals: ASTM F-876/F-877
• Outside Diameter: 3/4 in
• Series: PureFlow
• Temperature Rating: 180 to 200 deg F
• Working Pressure: 160 psi
• Applicable Standard: AWWA C904, CAN/ULC S101, CAN/ULC S102.2, CSA (Canada)/B137.5, IAPMO, ICC, NSF/ANSI 61/61G/372, NSPC, UL 1821, NSF 61G
• Application: Residential, Commercial, Water Distribution System
• End Connection: PEX x PEX
• Inside Diameter: 0.671 Inch
• Material Specification: ASTM F876/F877
• Wall Thickness: 0.102 Inch
• Brand: ViegaPEX
• Type: PEX-B
• Diameter: 3/4"
• Category: Pex Pipe & Tubing
• Height: 1.5 in
• Width: 29 in
