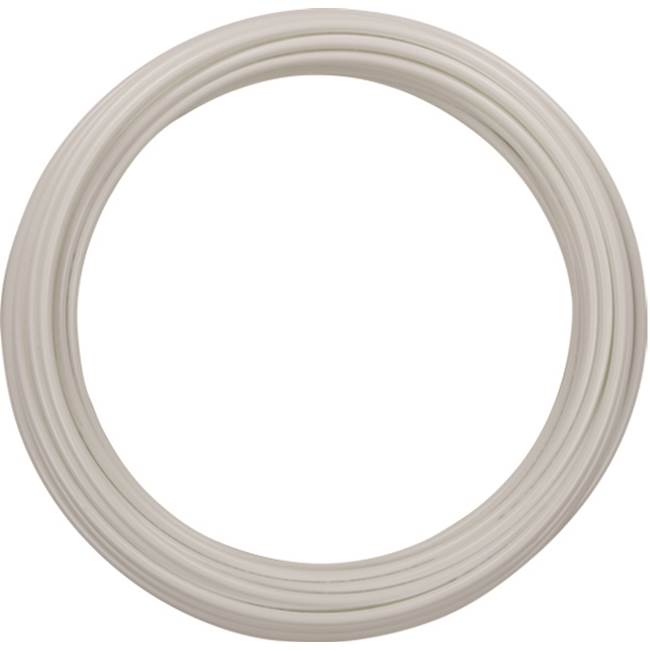

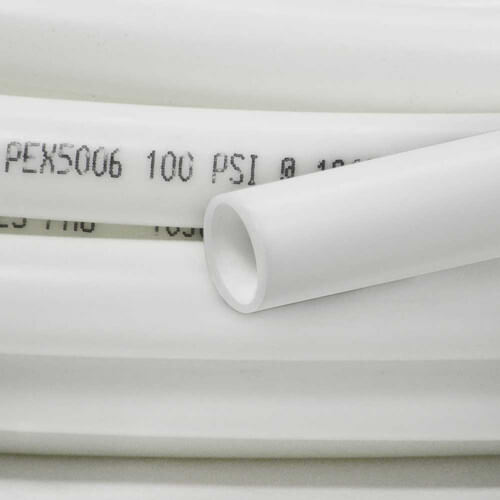

Viega 32005 ViegaPEX Ultra Tubing 3/8 in x 500 ft

Product Description

The VIEGA 32005 ViegaPEX press fittings make consistent, reliable PEX tubing connections. Suitable for use with all ViegaPEX tubing products, Viega PEX Press fittings can be installed with the same hand and power tools as other Viega press systems. ViegaPEX Tubing is manufactured to ASTM F876/F877 standards and listed to ANSI/NSF Standards 14 and 61.

• No glue, solder torches or lubricants needed
• Can be installed in nearly any climate
• Allows immediate testing without waiting for glue to dry, fittings to cool or plastic rings to contract

Product Highlights

Viega PureFlow provides a comprehensive selection of PEX tubing, fittings, and accessories. Viega offers PEX Press and PEX Crimp fittings. ViegaPEX tubing is rated at 100 psi and 180 degrees F and 160 psi at 73 degrees F.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 32005
• Country of Origin: Domestic

Technical Specifications

• Nominal Size: 3/8 in
• Inside Diameter: 0.35 in
• Outside Diameter: 1/2 in
• Length: 500 ft
• Wall Thickness: 0.07 in
• Working Pressure: 100 to 160 psi
• Temperature Rating: 180 deg F
• Material: Polyethylene
• Series: PEX Press
• Domestic/Import: Domestic
• Fitting System Compatibility: Push Fit, PEX Press, Clamp, PEX Compression, Crimp
• Shape: Coil
• Tubing Type: Non-Oxygen Barrier
• Application: Plumbing
• Max Pressure (PSI): 160
• Grade: PEX-b
• Standards Met: ASTM F876, NSF, ASTM F877
• Max Temp (F): 180 F
• Product Type: Part
• Finish: No Finish Group
• Collection: PureFlow
