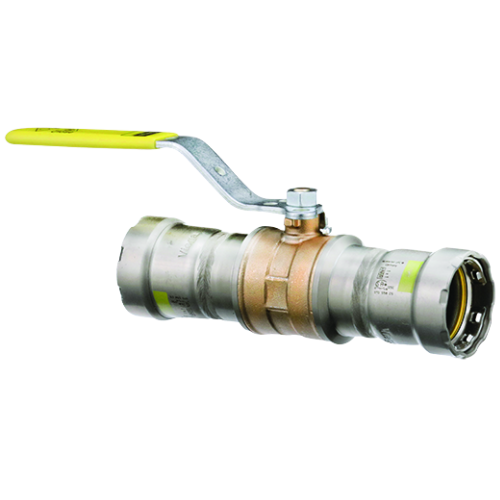

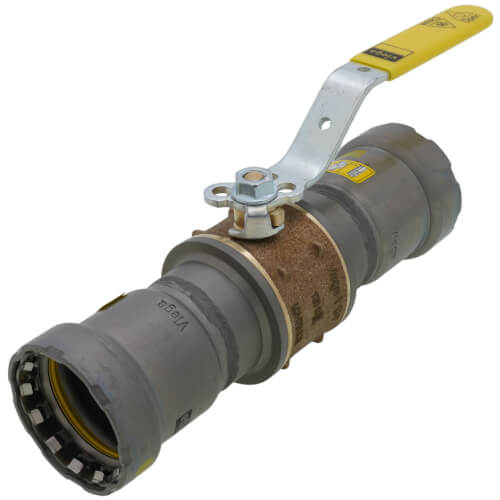

Viega 30615 MegaPressG 1-1/4 Inch Ball Valve CS Press Bronze

Product Description

The Viega 30615 MegaPressG Ball Valve is a high-quality valve designed for efficient control and regulation of fluids in piping systems. It features a robust bronze body with carbon steel press ends and a stainless steel ball, ensuring durable and reliable operation. Suitable for use with Sch. 5 to Sch. 40 carbon steel pipe, this 1-1/4 inch ball valve can handle temperatures from -40 degrees Fahrenheit to 180 degrees Fahrenheit and pressures up to 125 psi.

• Press x Press connection for quick and secure installation.
• Equipped with HNBR sealing elements for enhanced sealing performance.
• Ideal for fuel and gas applications.

Product Highlights

This ball valve features Viega Smart Connect technology, which allows for easy identification of unpressed connections during pressure tests, enhancing safety and efficiency on the job site.

Product Information

Standard Information

• Model: 6675
• Sub Brand: MegaPressG
• Type: Pressure Rated

Technical Specifications

• Series: MegaPressG
• Connection Type: Press x Press
• Maximum Pressure Rating: 125 psi
• Body Material: Bronze
• Ball Material: Stainless Steel
• Seal: HNBR
• Stem: Eco Brass
• Temperature Rating: -40 Deg F to 180 Deg F
• Applications: Fuel/Gas
