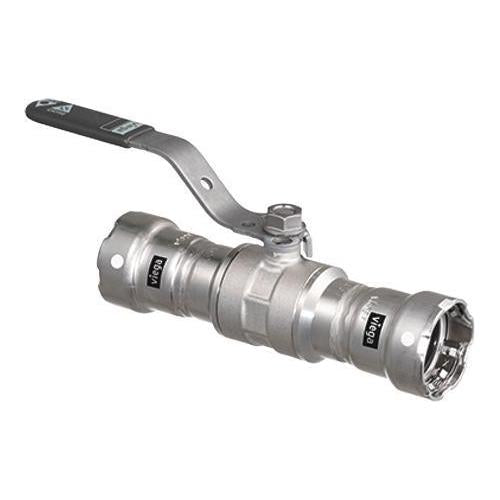

Viega 29010 MegaPress 304 FKM Ball Valve 3/4 Inch

Product Description

The VIEGA 29010 MegaPress 304 FKM Ball Valve is a 3/4 inch valve designed for secure and fast installation in stainless steel piping systems. It features a 316 stainless steel valve body and 304 stainless steel press ends, ensuring durability and corrosion resistance. The FKM seal provides reliable shut-off for various applications, including those with Schedule 5 to Schedule 40 stainless steel pipe. This valve is rated for pressures up to 200 psi and temperatures from 14 to 284 degrees F.

• MegaPress connection for secure and fast installation.
• 316 stainless steel valve body and 304 stainless steel press ends for durability and corrosion resistance.
• FKM ball valve for reliable shut-off and manual operation.

Product Highlights

A 3/4 inch MegaPress ball valve with FKM seal, 316 stainless steel body, and 304 stainless steel press ends, suitable for stainless steel pipe applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 29010
• Country of Origin: CN

Technical Specifications

• Nominal Size: 3/4 inch
• Valve Type: Ball Valve
• Connection Type: MegaPress
• Body Material: 316 Stainless Steel
• End Connection Material: 304 Stainless Steel
• Seal Material: FKM
• Max Pressure: 200 psi
• End Style: Press
• Port Type: Full
• Ball Material: 304 Stainless Steel
• Series: Model 4170
• Temperature Rating: 14 to 284 deg F
• Included Components: FKM Sealing Element (White Dot)
• Application: For use with Sch. 5 to Sch. 40 stainless steel pipe
• Valve Operation: Manual
